Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Using J 46406 remove the cooling fan clutch from the water pump pulley and leave loose inside of the fan shroud

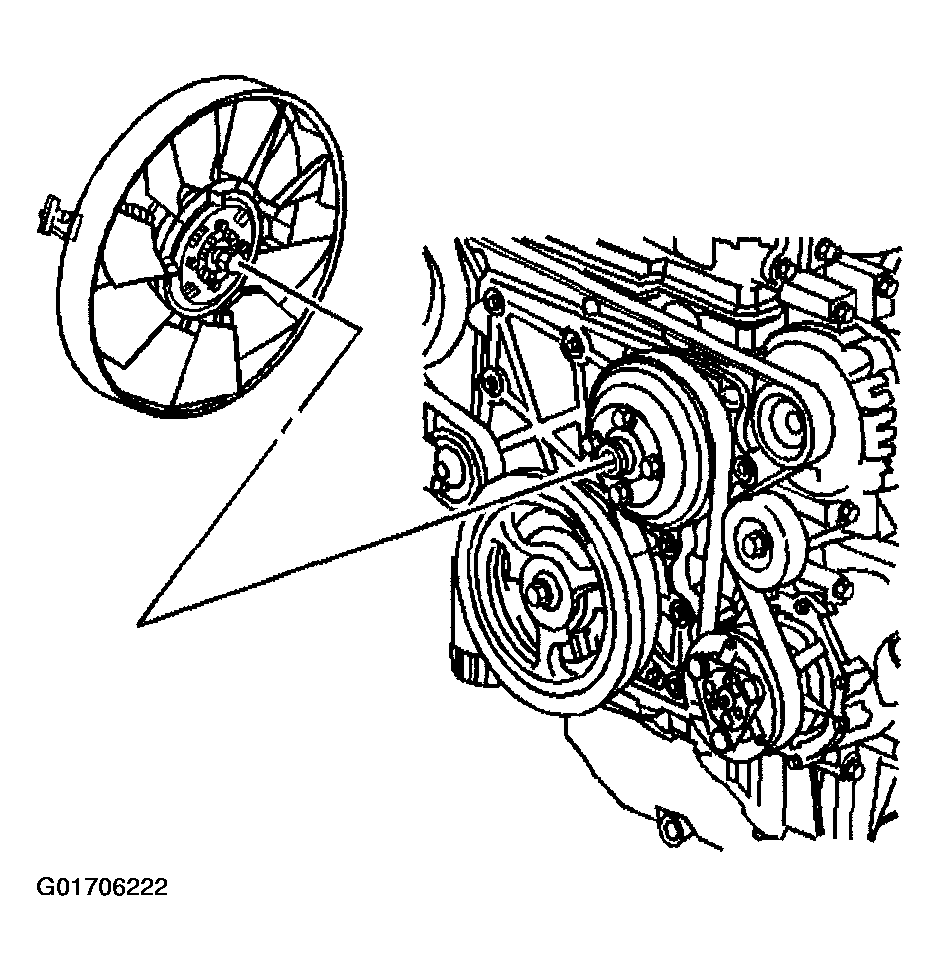

    3. Fig 1: Loosening Cooling Fan Hub Nut From Water Pump Shaft
    G01706222Courtesy of GENERAL MOTORS CORP.
  3. Remove the MAP sensor electrical connector and retainer (1).

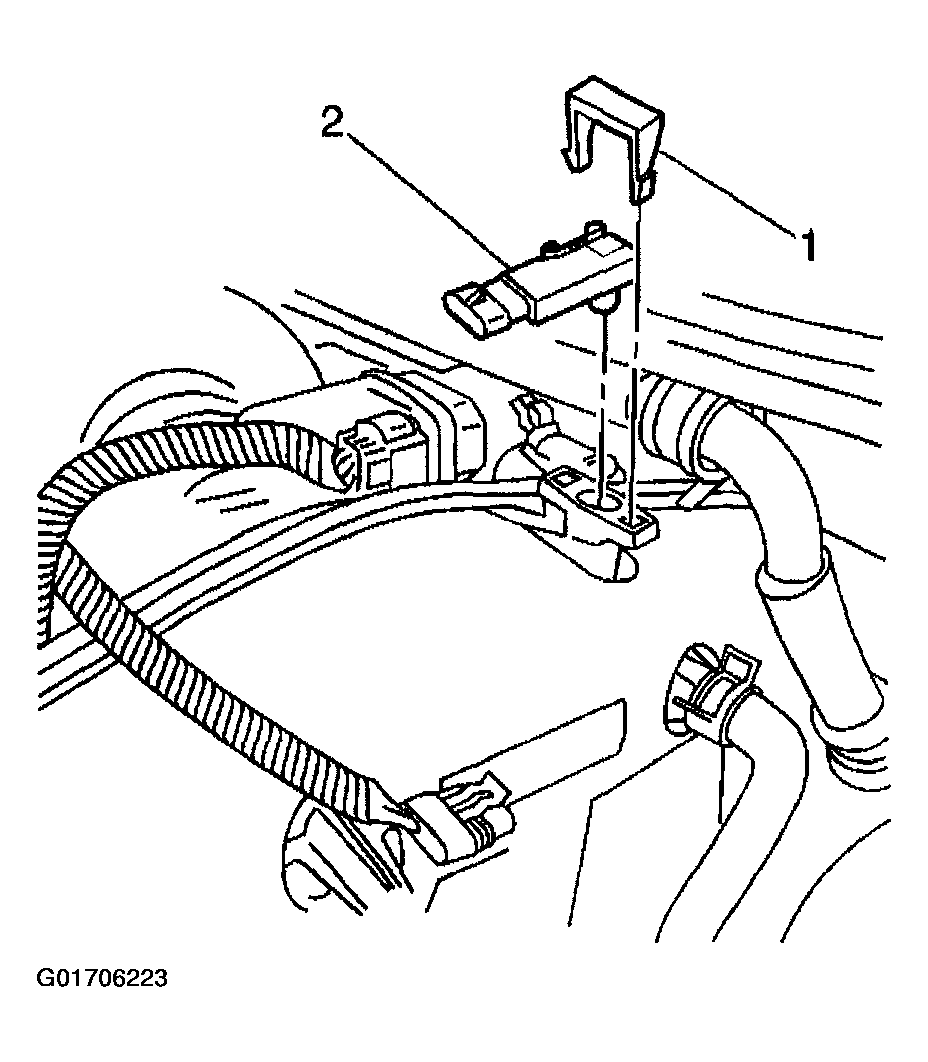

    4. Fig 2: Removing MAP Sensor Electrical Connector And Retainer
    G01706223Courtesy of GENERAL MOTORS CORP.
  4. Remove the MAP sensor (2).
  5. Remove the right shock module, if frame engine mount is being removed. Refer to Shock Module Replacement in Front Suspension.
  6. Remove the right and the left upper engine mount nuts.

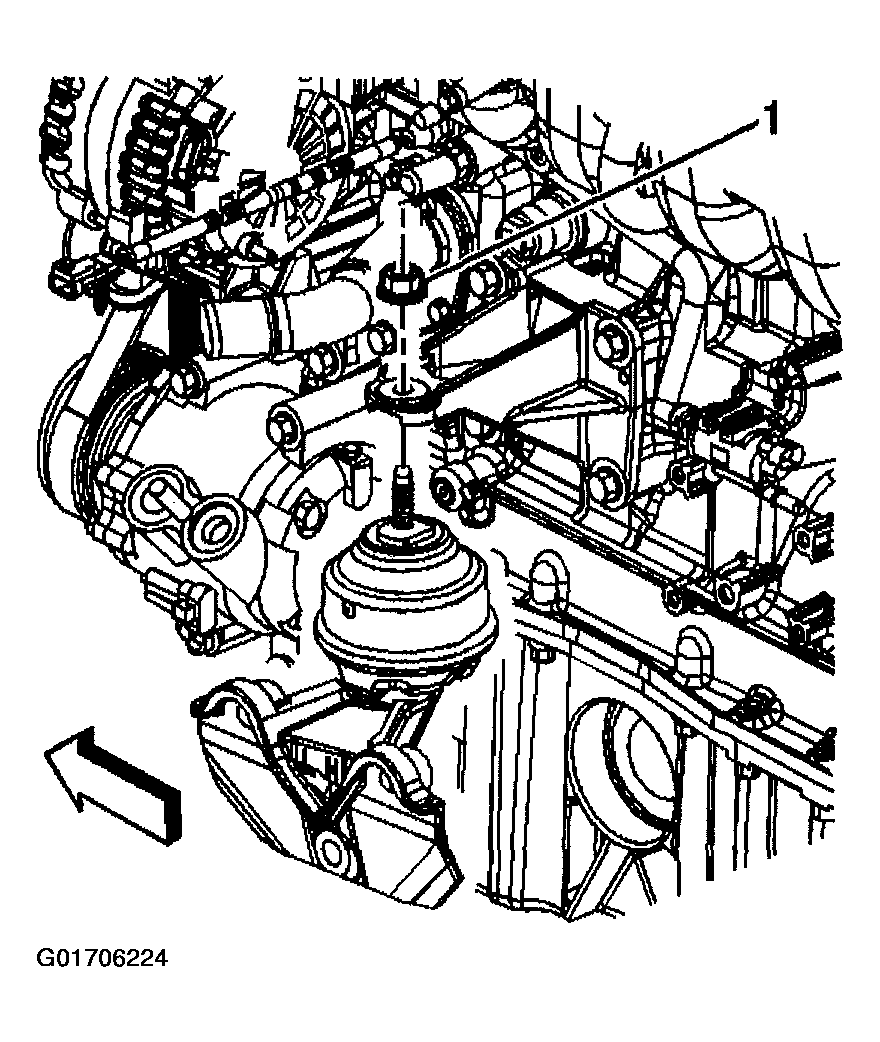

    7. Fig 3: Removing Right And Left Upper Engine Mount Nuts
    G01706224Courtesy of GENERAL MOTORS CORP.
  7. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  8. Remove the right and the left lower engine mount nuts.
  9. Remove the engine protection shield mounting bolts.

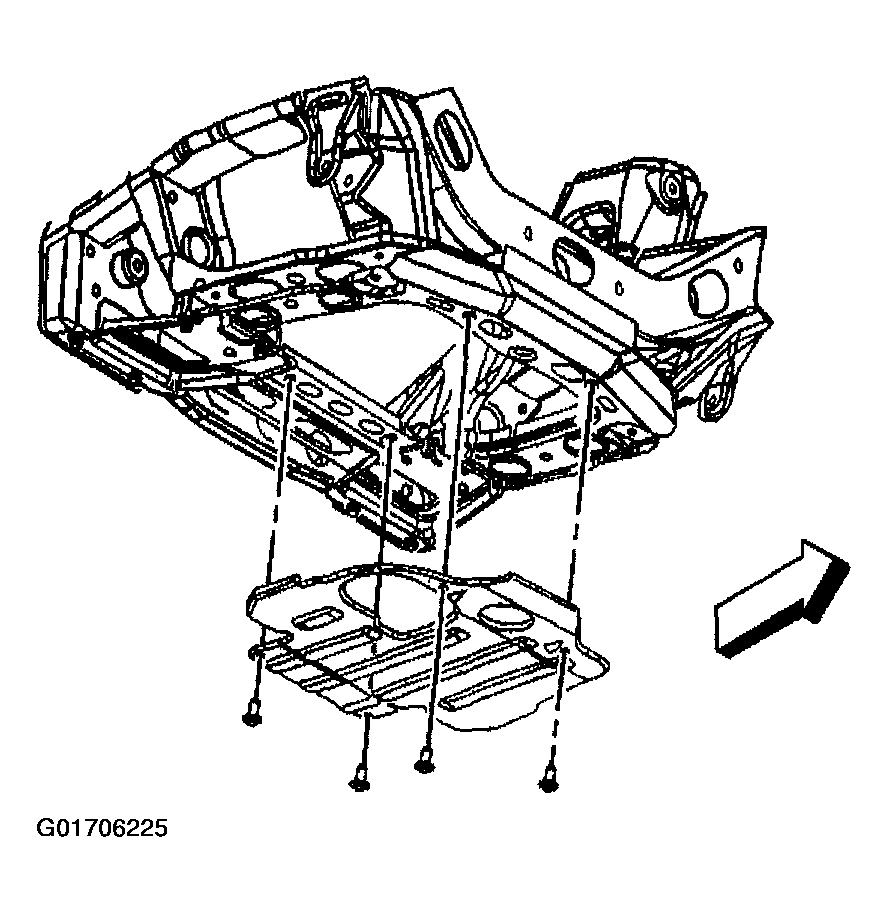

    10. Fig 4: Removing Engine Protection Shield Mounting Bolts
    G01706225Courtesy of GENERAL MOTORS CORP.
  10. Remove the engine protection shield.
    IMPORTANT: When placing jack onto the oil pan, pay close attention to not damaging the oil level sender.
  11. Lower the vehicle and place a floor jack under the oil pan with a block of wood.
  12. Raise the engine with the jack just enough to clear the engine mount studs.
  13. Remove the right engine mount from the bracket.

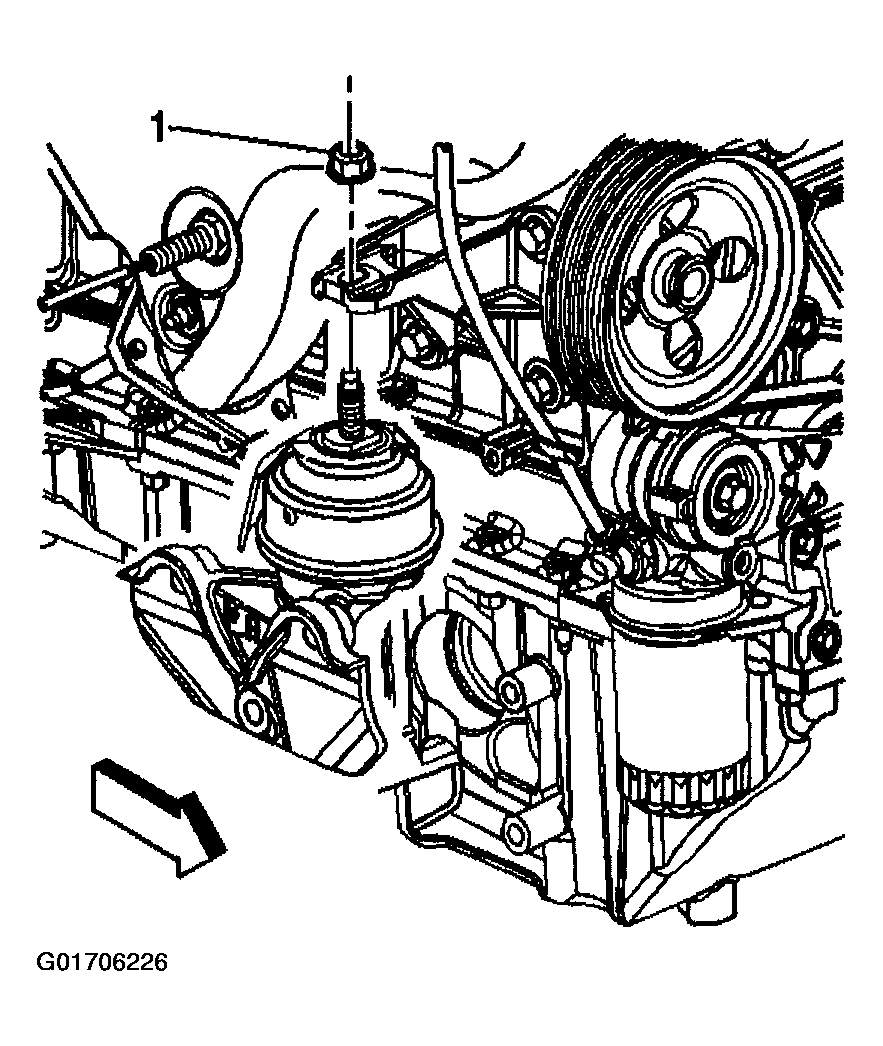

    14. Fig 5: Removing Right Engine Mount From Bracket
    G01706226Courtesy of GENERAL MOTORS CORP.
  14. Remove the right engine mount bracket bolts. Graphic shows left, right is similar.

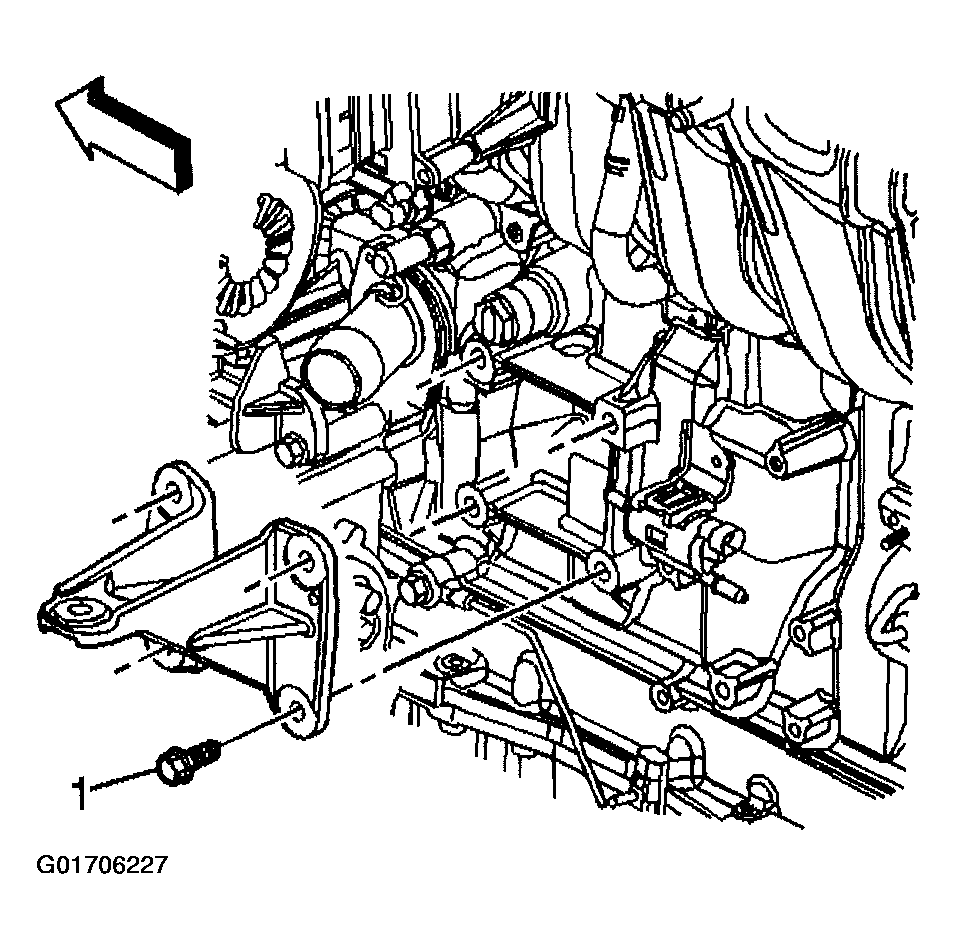

    15. Fig 6: Removing Right Engine Mount Bracket Bolts
    G01706227Courtesy of GENERAL MOTORS CORP.
  15. Remove the right engine mount bracket.
  16. Remove the right frame engine mount bracket bolts, if required. Graphic shows left, right is similar.
    17. Fig 7: Removing Right Frame Engine Mount Bracket Bolts
    G01706228Courtesy of GENERAL MOTORS CORP.
  17. Remove the right frame engine mount bracket, if required.
