Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right frame engine mount bracket, if removed. Graphic shows left, right is similar.

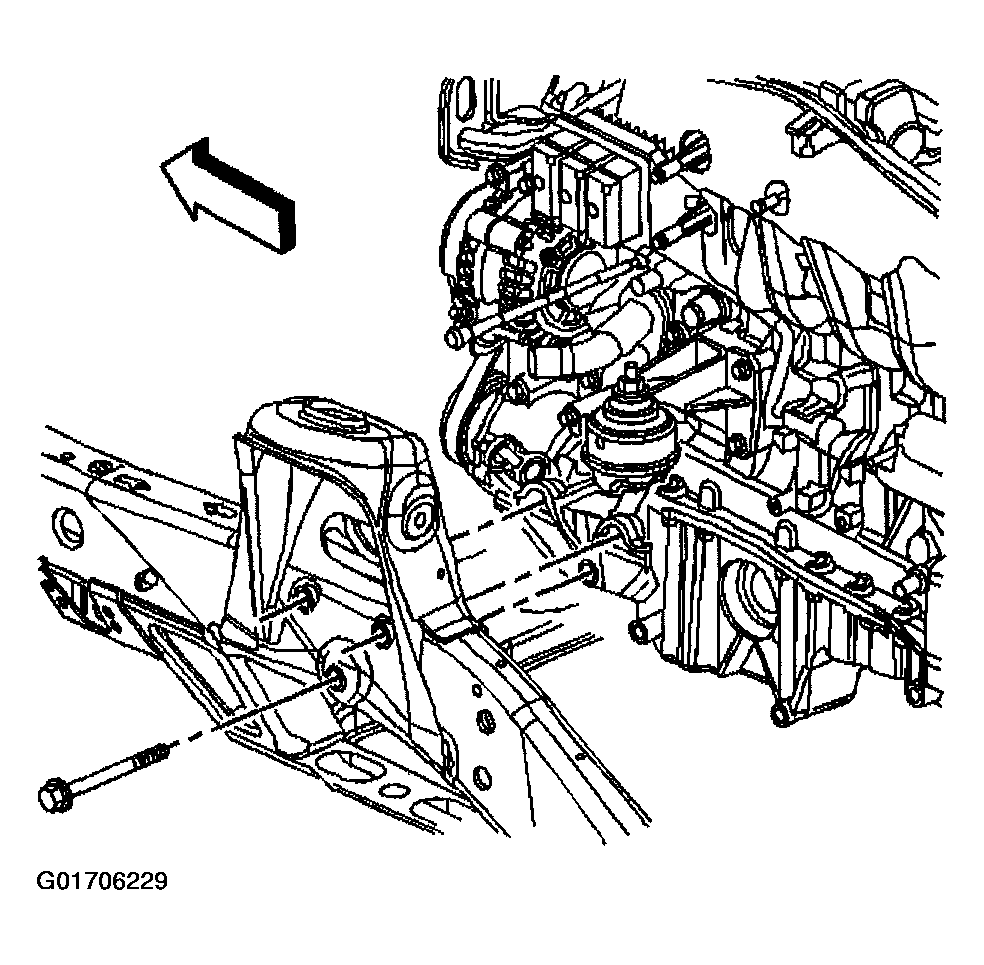

    2. Fig 1: Installing Right Frame Engine Mount Bracket
    G01706229Courtesy of GENERAL MOTORS CORP.
  2. Install the right frame engine mount bracket bolts, if removed.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the mount bracket bolts to 110 N.m (81 lb ft).

  3. Install the right engine mount bracket and secure with the bolts (1). Graphic shows left, right is similar.

    Tighten

    Tighten the engine mount bracket bolts to 50 N.m (37 lb ft).

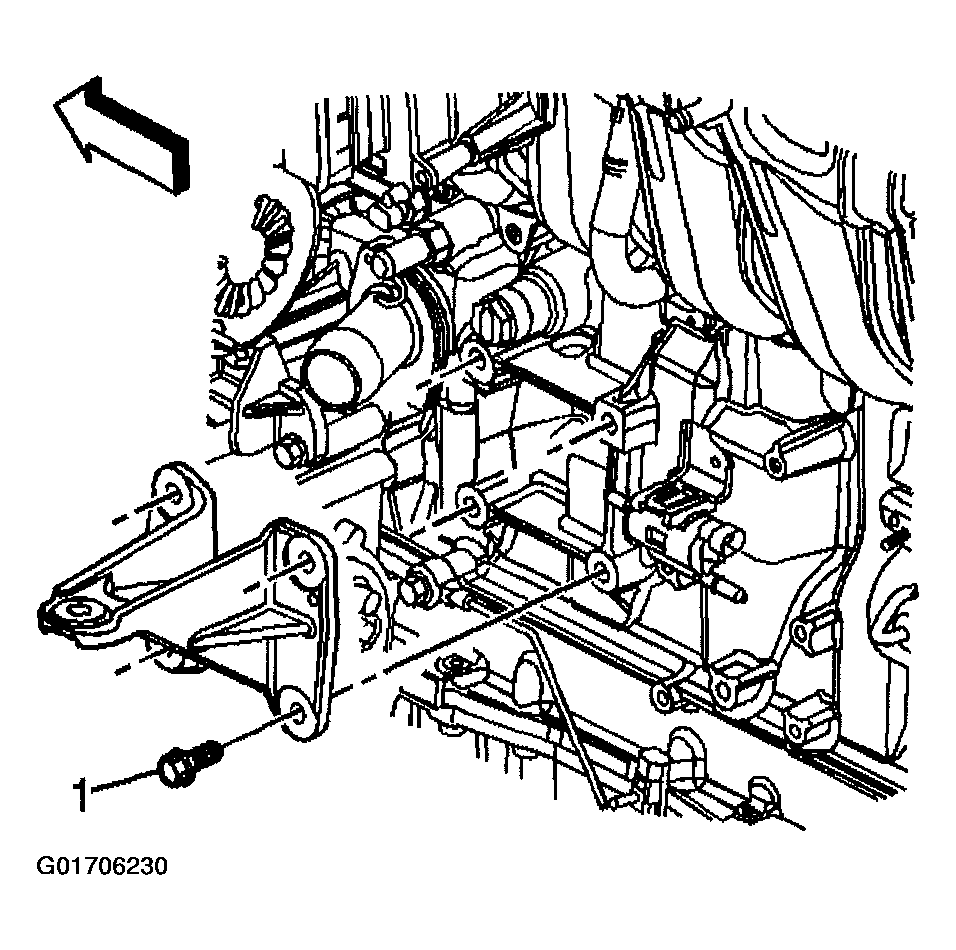

    4. Fig 2: Installing Right Engine Mount Bracket
    G01706230Courtesy of GENERAL MOTORS CORP.
  4. Install the right engine mount.

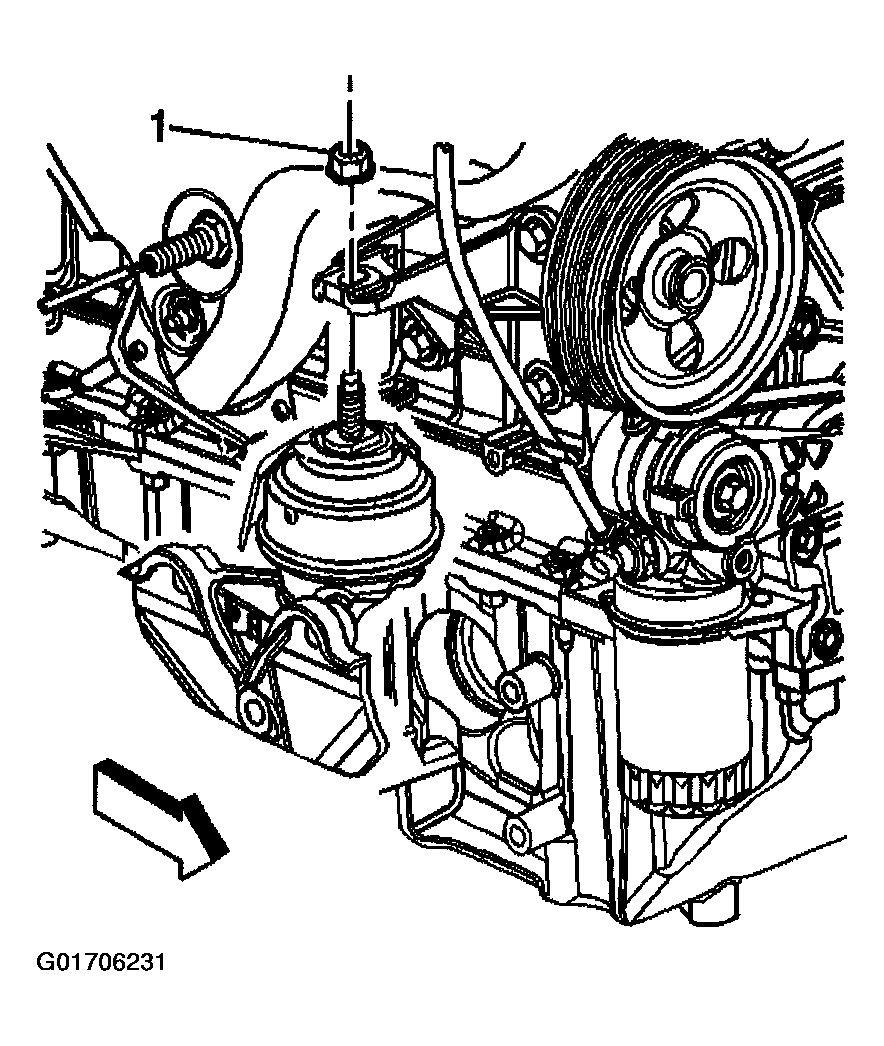

    5. Fig 3: Installing Right Engine Mount
    G01706231Courtesy of GENERAL MOTORS CORP.
  5. Lower the engine onto the engine mounts.
  6. Install the right and the left upper engine mount nuts.

    Tighten

    Tighten the upper engine mount nuts to 70 N.m (52 lb ft).

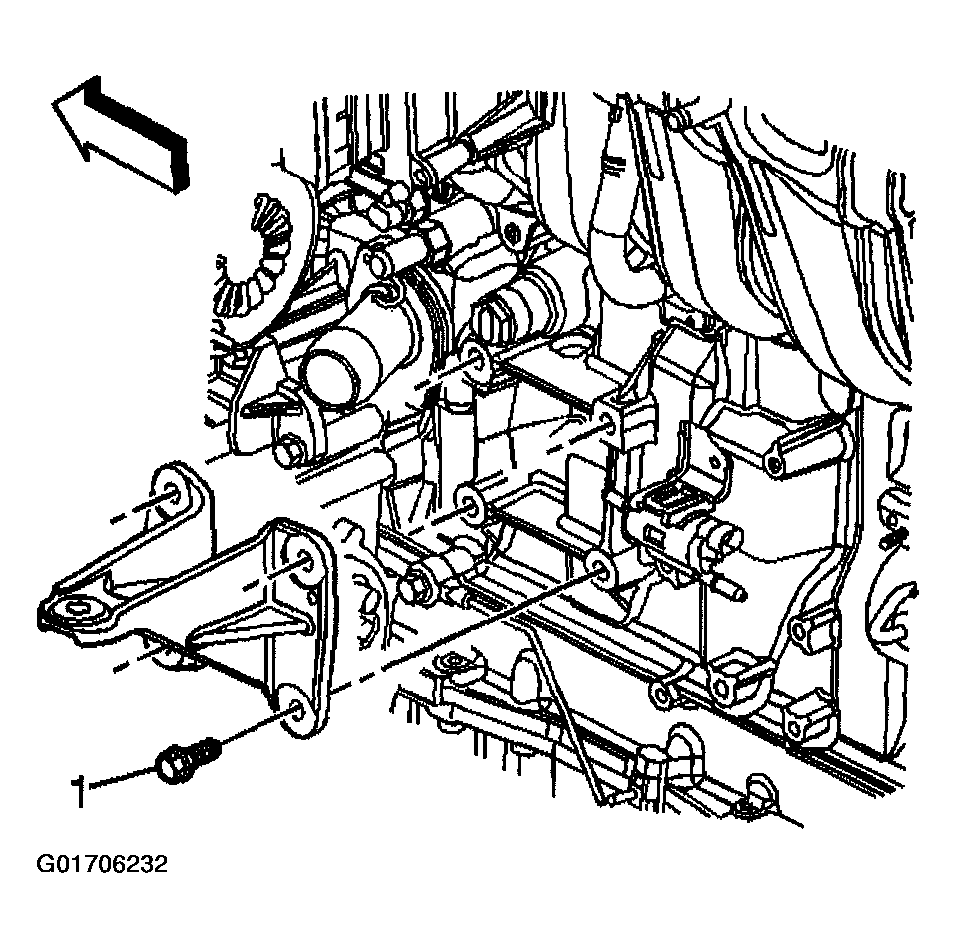

    7. Fig 4: Installing Right And Left Upper Engine Mount Nuts
    G01706232Courtesy of GENERAL MOTORS CORP.
  7. Raise the vehicle and remove the floor jack from under the vehicle.
  8. Install the engine protection shield and secure with the bolts.

    Tighten

    Tighten the engine protection shield bolts to 25 N.m (18 lb ft).

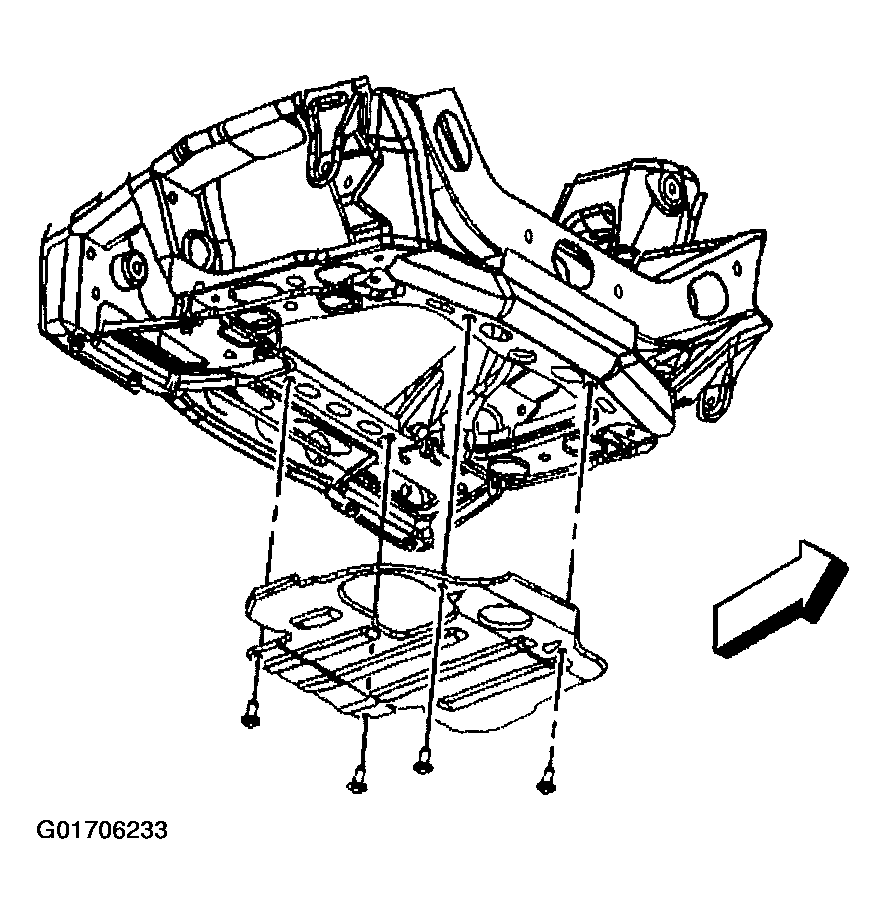

    9. Fig 5: Installing Engine Protection Shield
    G01706233Courtesy of GENERAL MOTORS CORP.
  9. Install the right and the left lower engine mount nuts.

    Tighten

    Tighten the lower engine mount nuts to 70 N.m (52 lb ft).

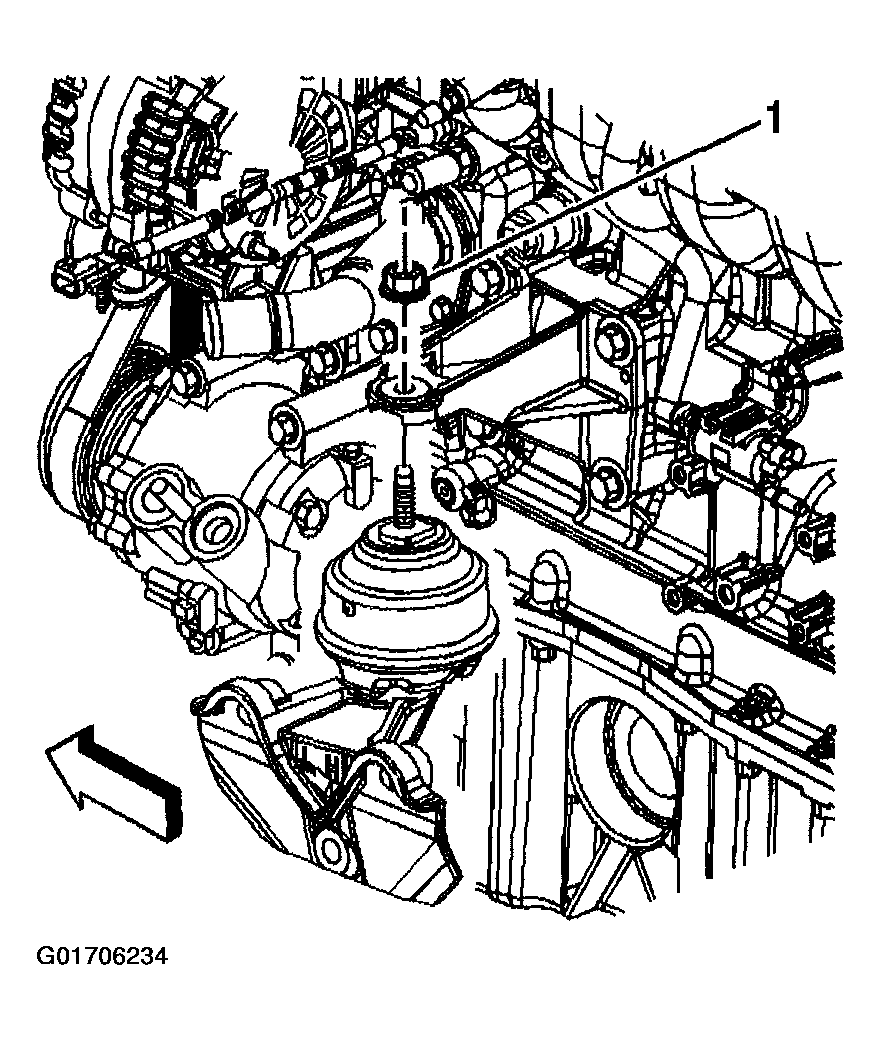

    10. Fig 6: Installing Right And Left Lower Engine Mount Nuts
    G01706234Courtesy of GENERAL MOTORS CORP.
  10. Lower the vehicle.
  11. Install the right shock module. Refer to Shock Module Replacement in Front Suspension.
  12. Install the MAP sensor (2).

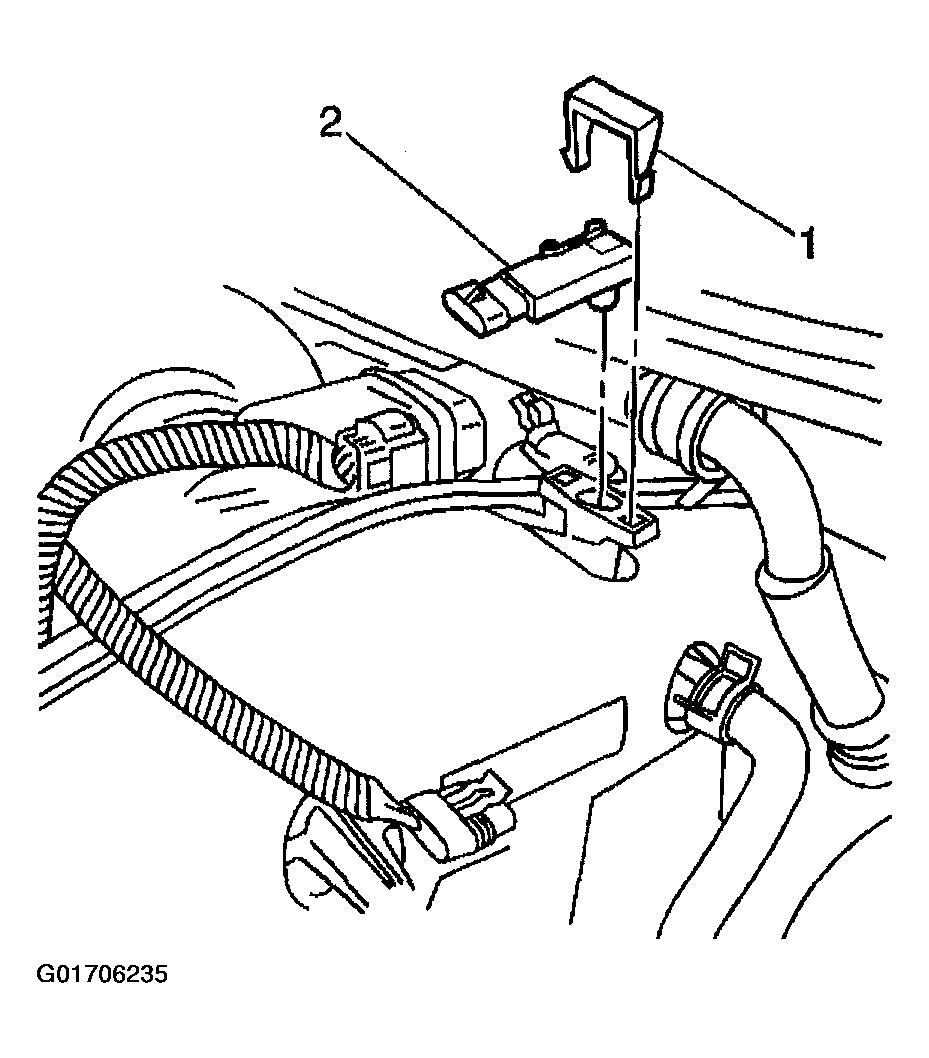

    13. Fig 7: Installing MAP Sensor
    G01706235Courtesy of GENERAL MOTORS CORP.
  13. Install the MAP sensor retainer (1) and the electrical connector.
  14. Connect the cooling fan hub nut to the water pump shaft.

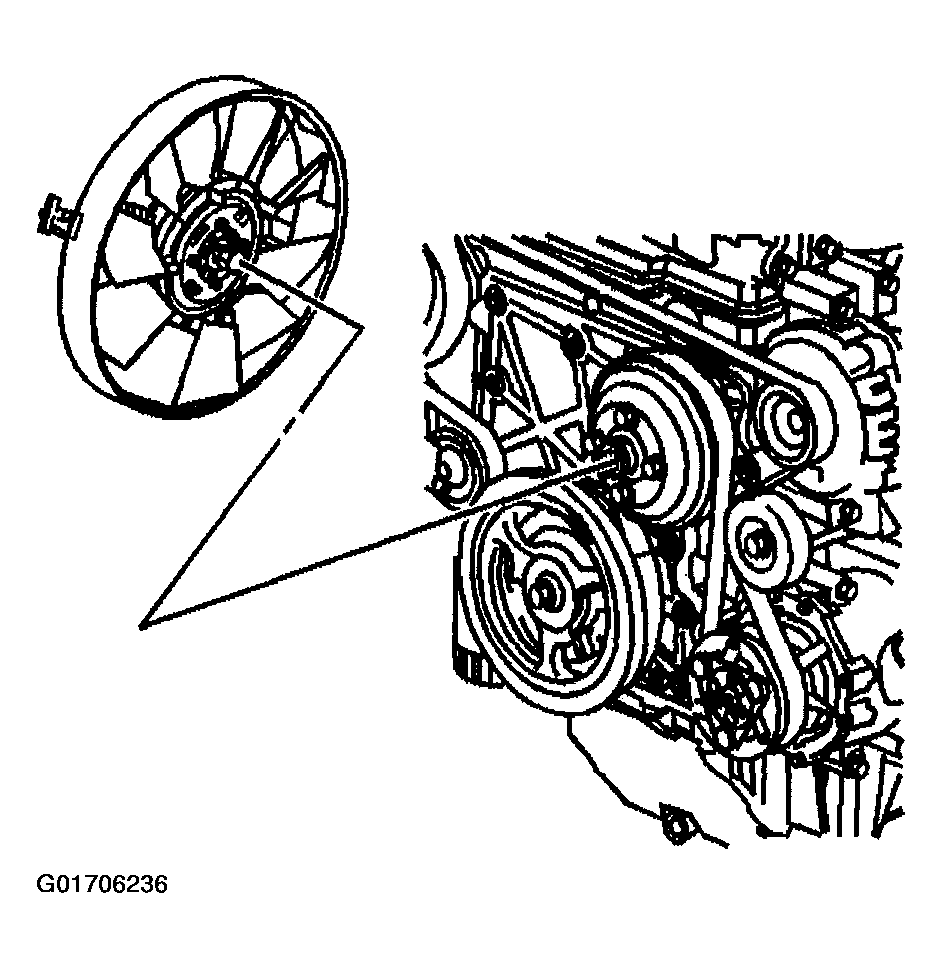

    15. Fig 8: Connecting Cooling Fan Hub Nut To Water Pump Shaft
    G01706236Courtesy of GENERAL MOTORS CORP.
  15. Install the J 41240 to the water pump pulley and tighten the cooling fan hub nut.

    Tighten

    Tighten the cooling fan hub nut to 56 N.m (41 lb ft).

  16. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
