Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install 3/8 inch breaker bar on the drive belt tensioner arm and turn the breaker bar clockwise enough to relieve the tension on the drive belt.
  2. Remove the drive belt.

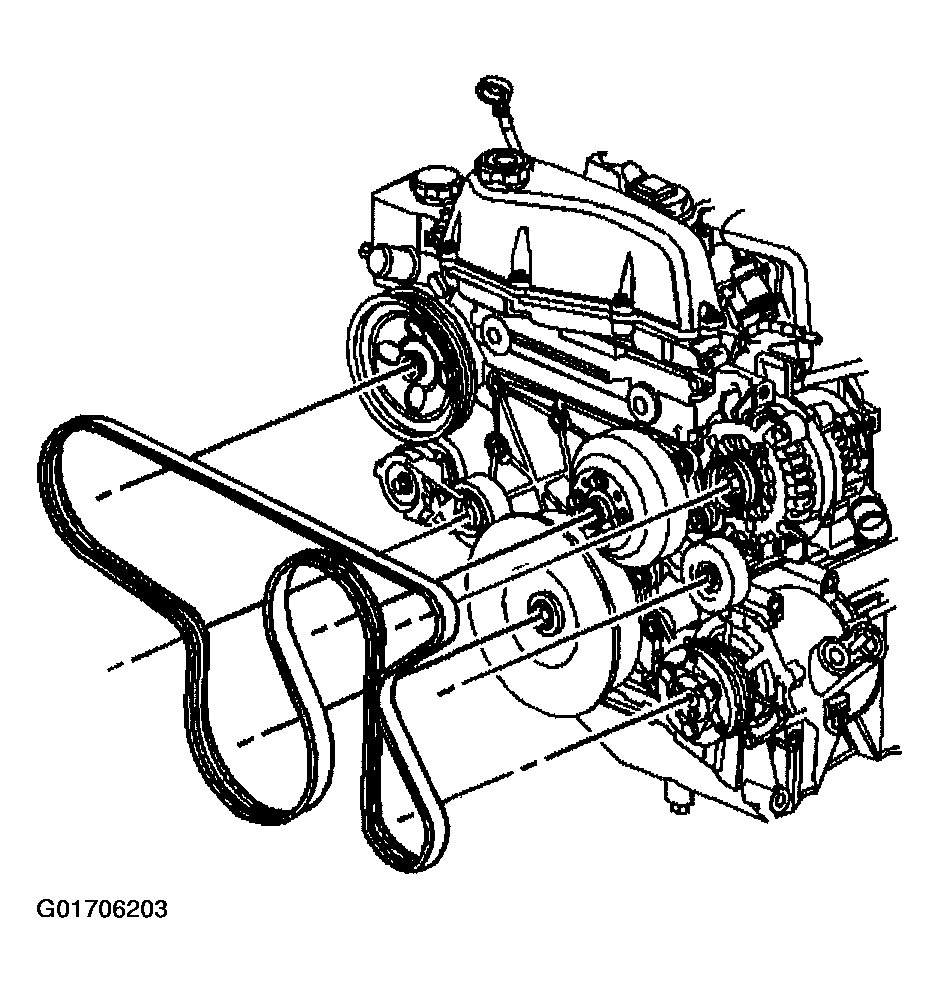

    3. Fig 1: Removing Drive Belt
    G01706203Courtesy of GENERAL MOTORS CORP.
  3. Release the tension on the tensioner arm.
