Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft cover. Refer to Camshaft Cover Replacement .
  2. Remove the exhaust manifold. Refer to Exhaust Manifold Replacement .
  3. Remove the front cover. Refer to Engine Front Cover Replacement .
  4. Remove the cylinder head access hole plugs.

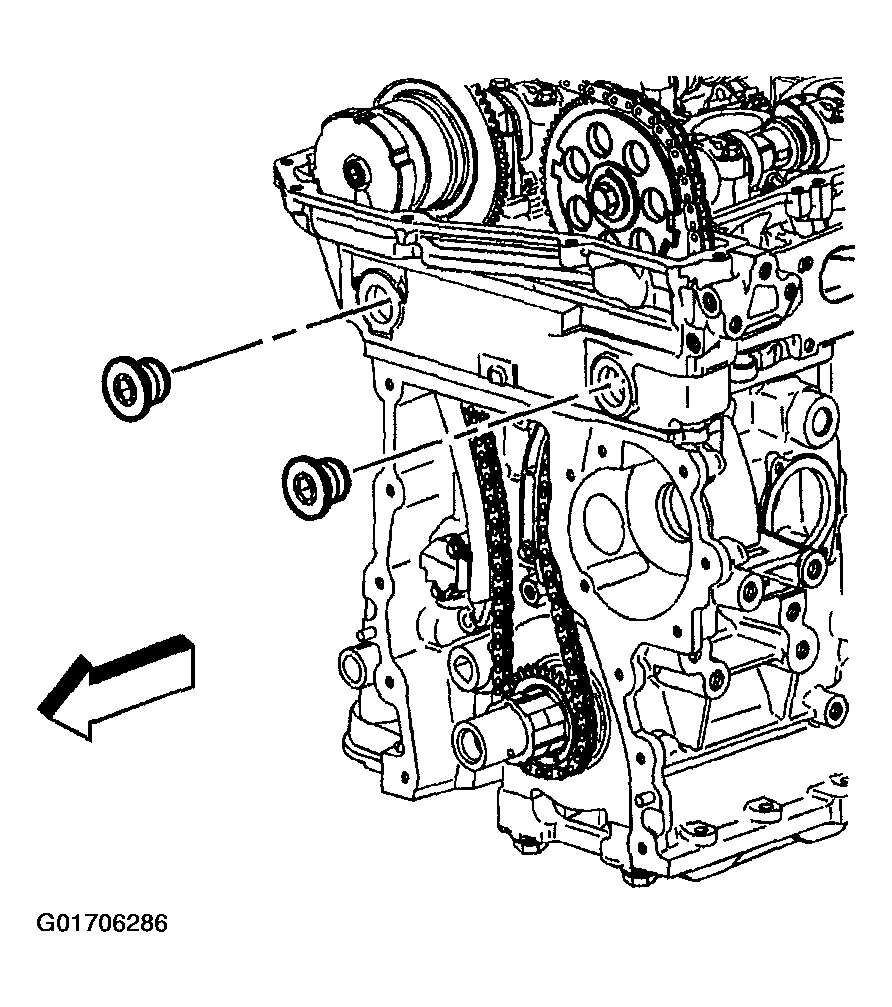

    5. Fig 1: Removing Cylinder Head Access Hole Plugs
    G01706286Courtesy of GENERAL MOTORS CORP.
  5. Remove the timing chain tensioner shoe bolt.

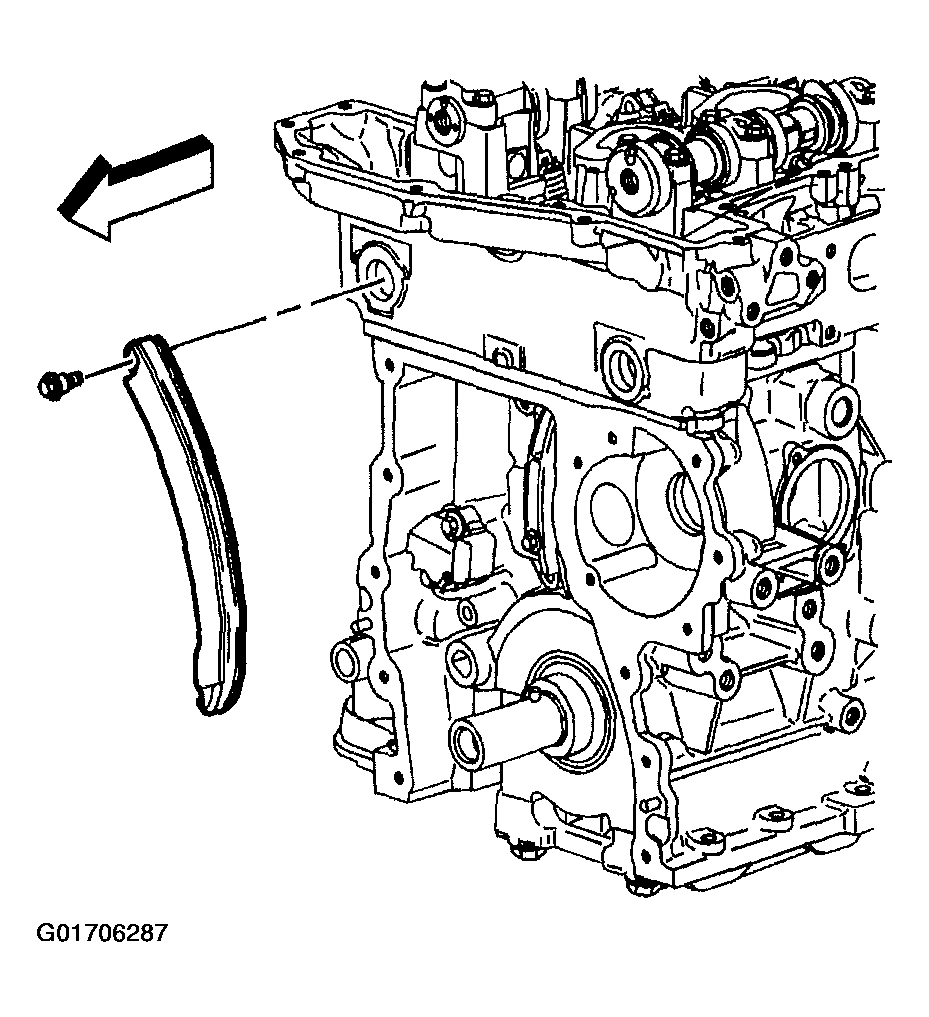

    6. Fig 2: Removing Timing Chain Tensioner Shoe Bolt
    G01706287Courtesy of GENERAL MOTORS CORP.
  6. Remove the timing chain tensioner shoe.
  7. Remove the timing chain tensioner guide bolts.

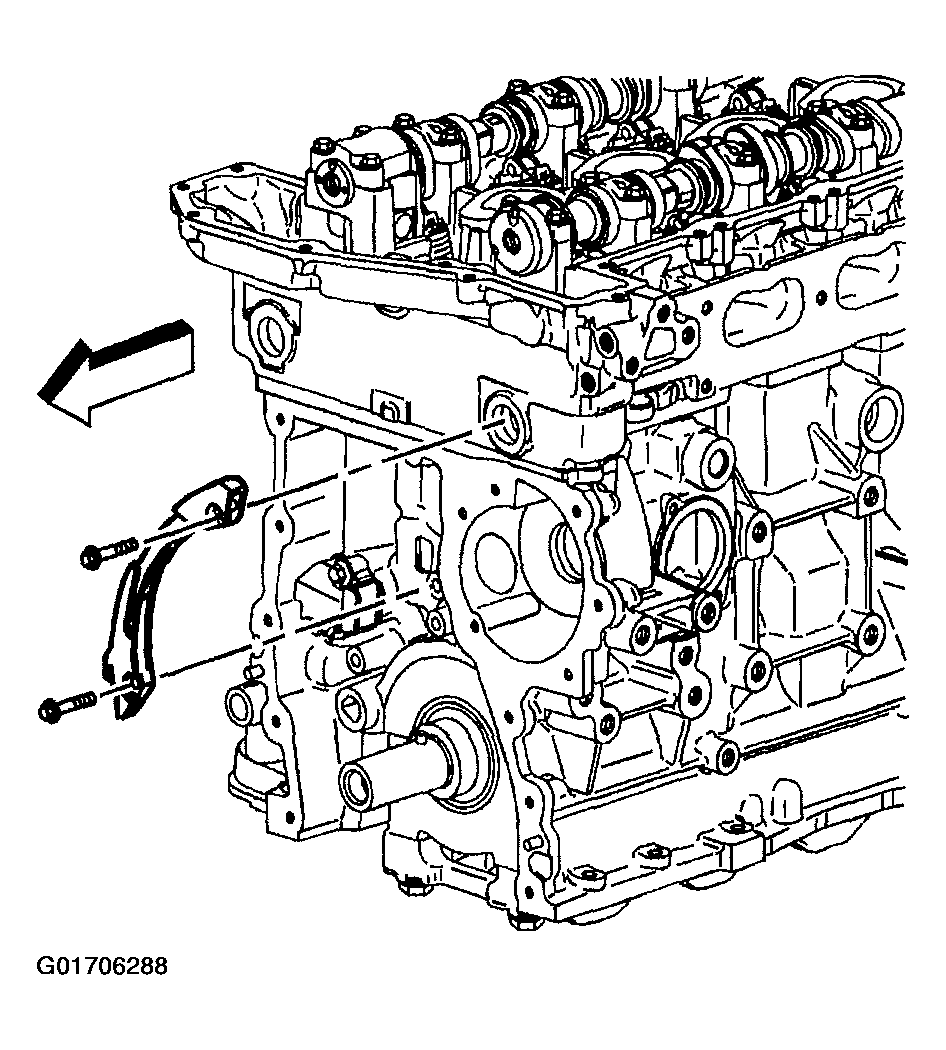

    8. Fig 3: Removing Timing Chain Tensioner Guide Bolts
    G01706288Courtesy of GENERAL MOTORS CORP.
  8. Remove the timing chain tensioner guide.
  9. Remove the timing chain and the sprockets. Refer to Timing Chain, Sprockets, and/or Tensioner Replacement .
  10. Loosen and remove the cylinder head bolts.

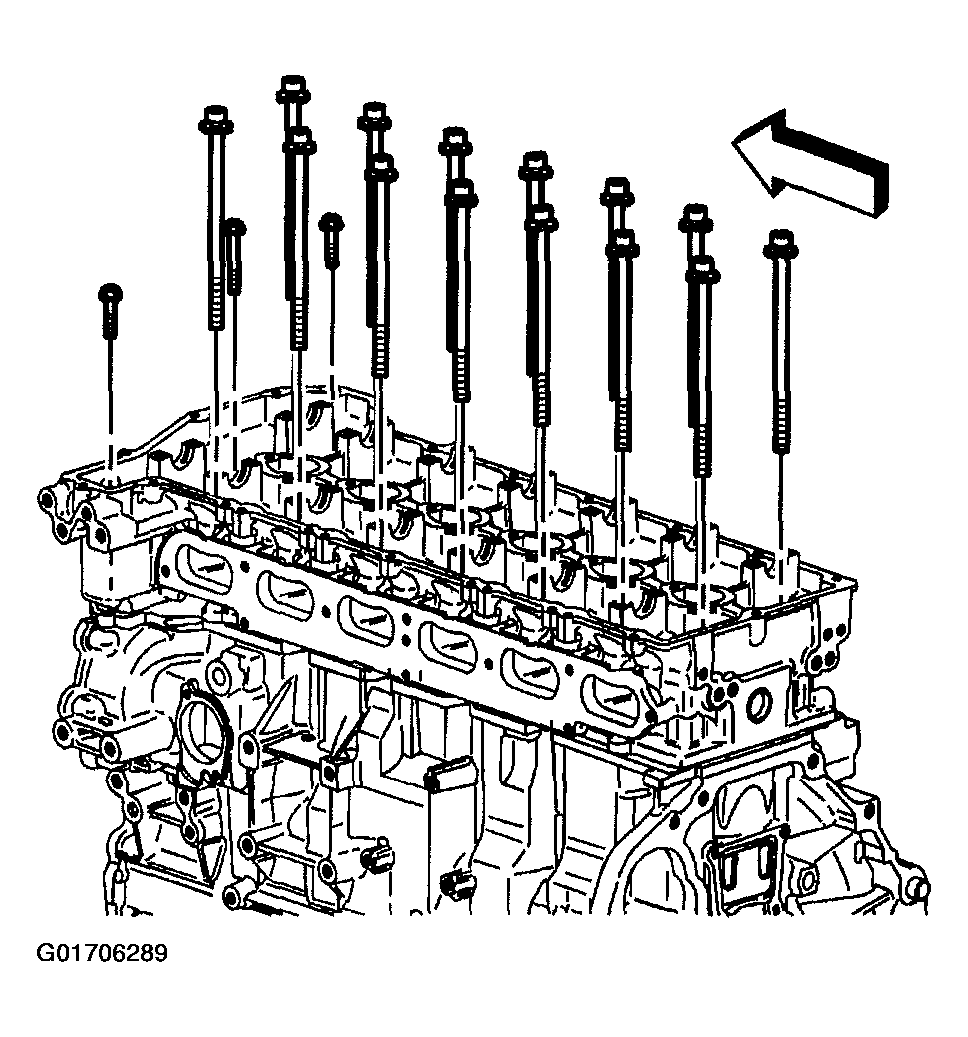

    11. Fig 4: Removing Cylinder Head Bolts
    G01706289Courtesy of GENERAL MOTORS CORP.
  11. Remove the cylinder head.

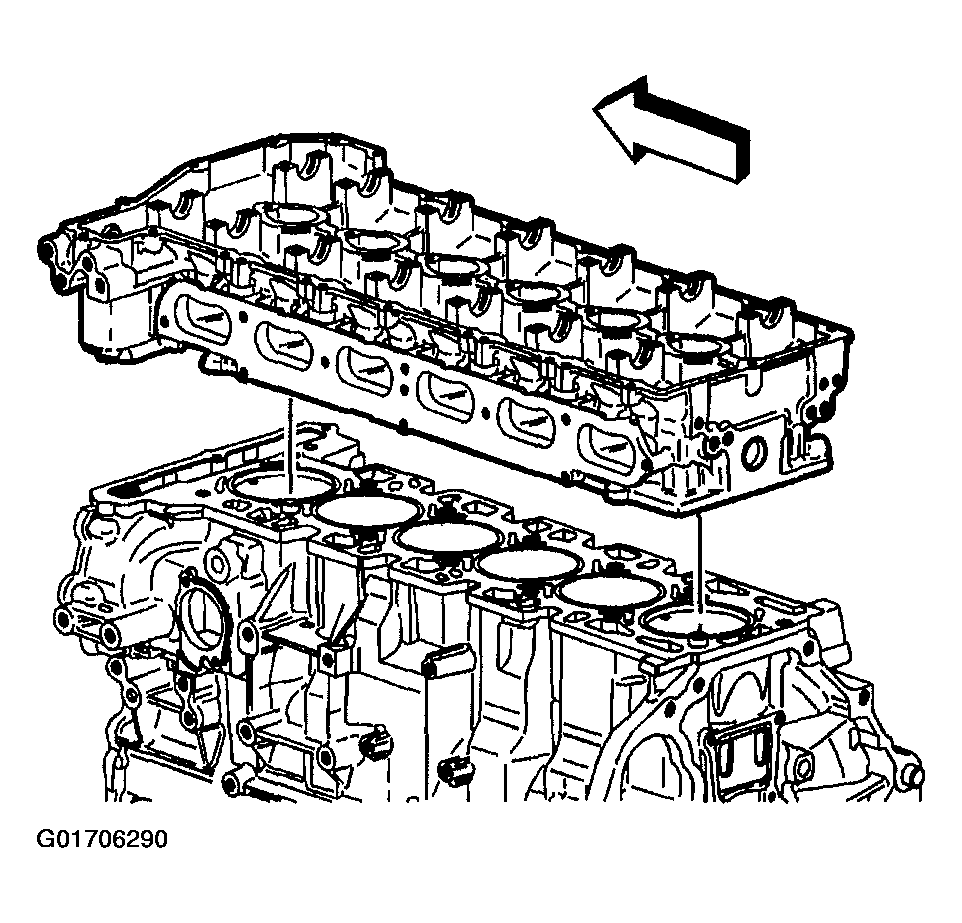

    12. Fig 5: Removing Cylinder Head
    G01706290Courtesy of GENERAL MOTORS CORP.
  12. Remove the cylinder head gasket.

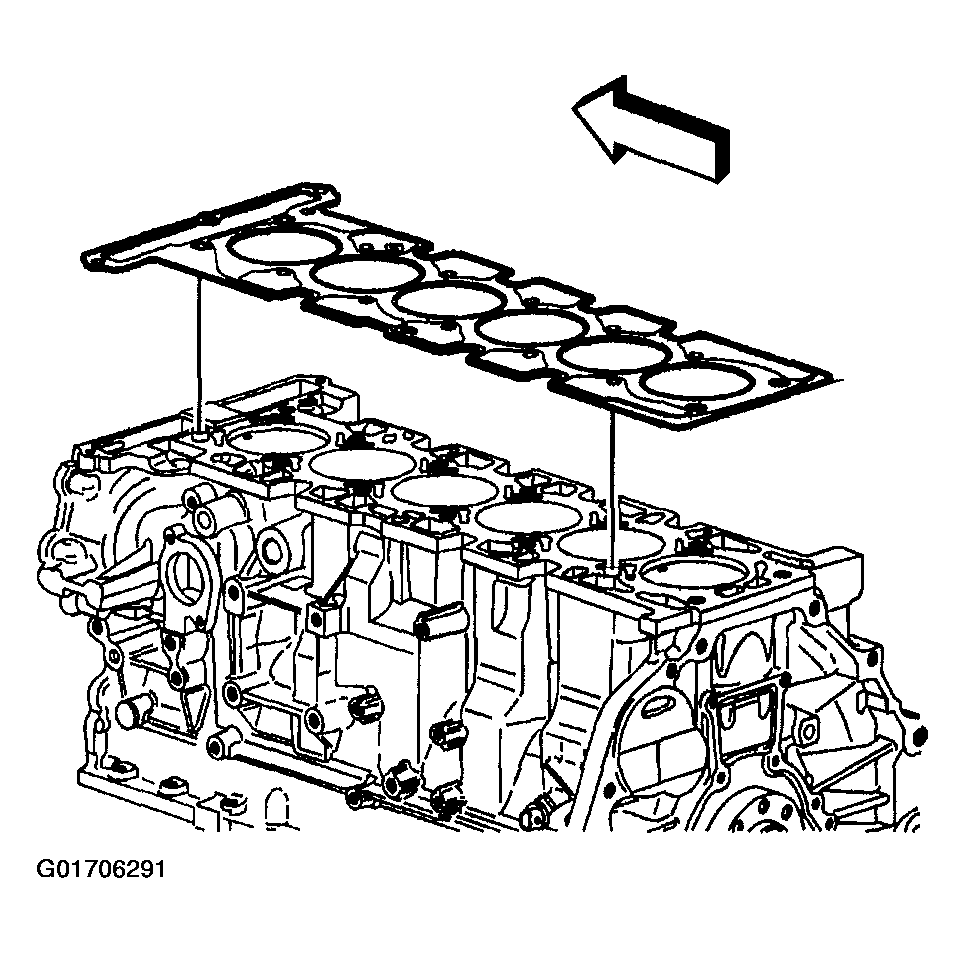

    13. Fig 6: Removing Cylinder Head Gasket
    G01706291Courtesy of GENERAL MOTORS CORP.
  13. Place the cylinder head on a flat, clean surface with the combustion chambers face up, in order to prevent damage to the deck face.
  14. If replacing cylinder head refer to Cylinder Head Disassemble in Engine Mechanical - 4.2 L Unit Repair.
  15. Clean and inspect the cylinder head. Refer to Cylinder Head Cleaning and Inspection in Engine Mechanical - 4.2 L Unit Repair.
