Oil Leak Diagnosis

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

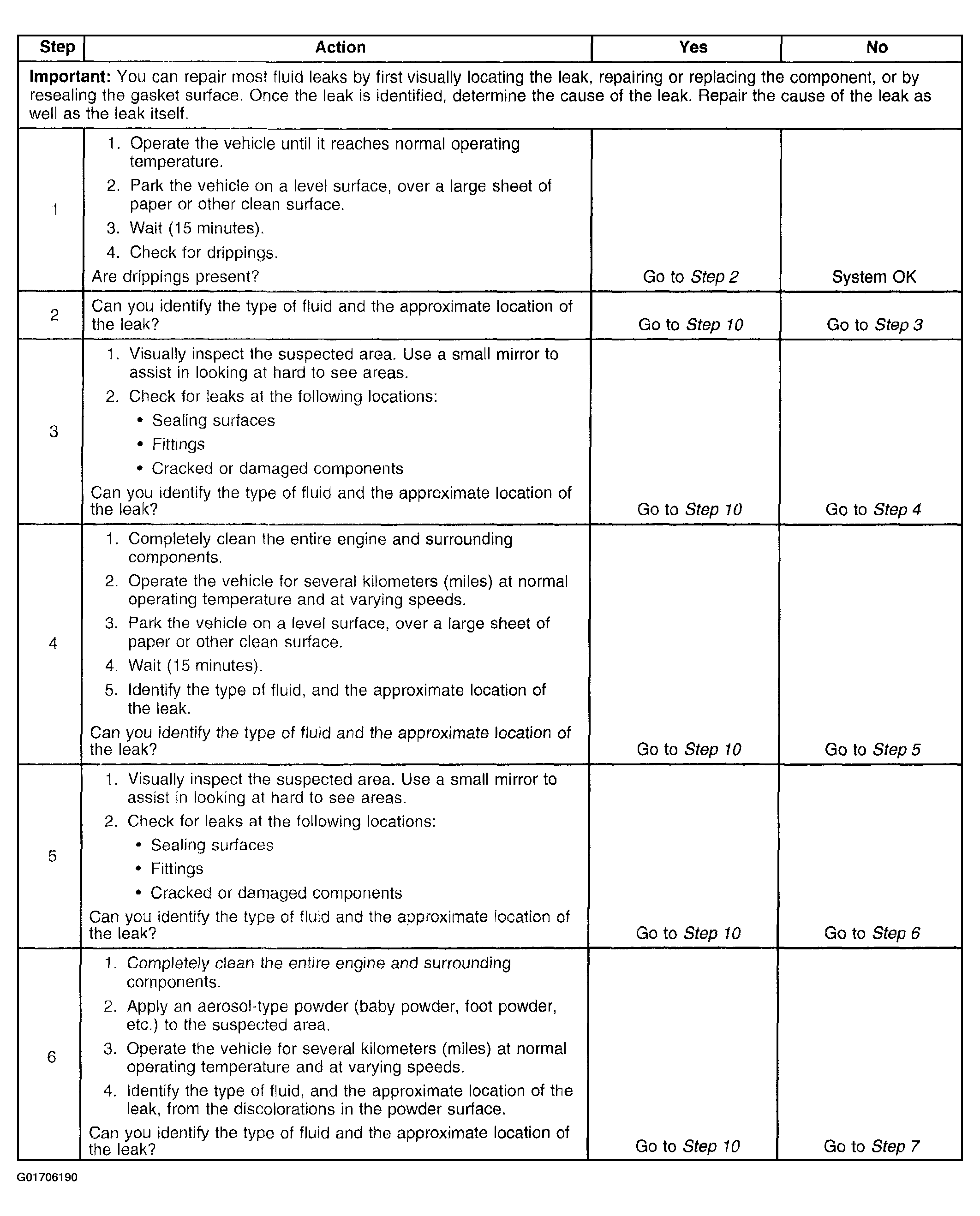

Fig 1: Oil Leak Diagnosis (Steps 1-6)
G01706190Courtesy of GENERAL MOTORS CORP.

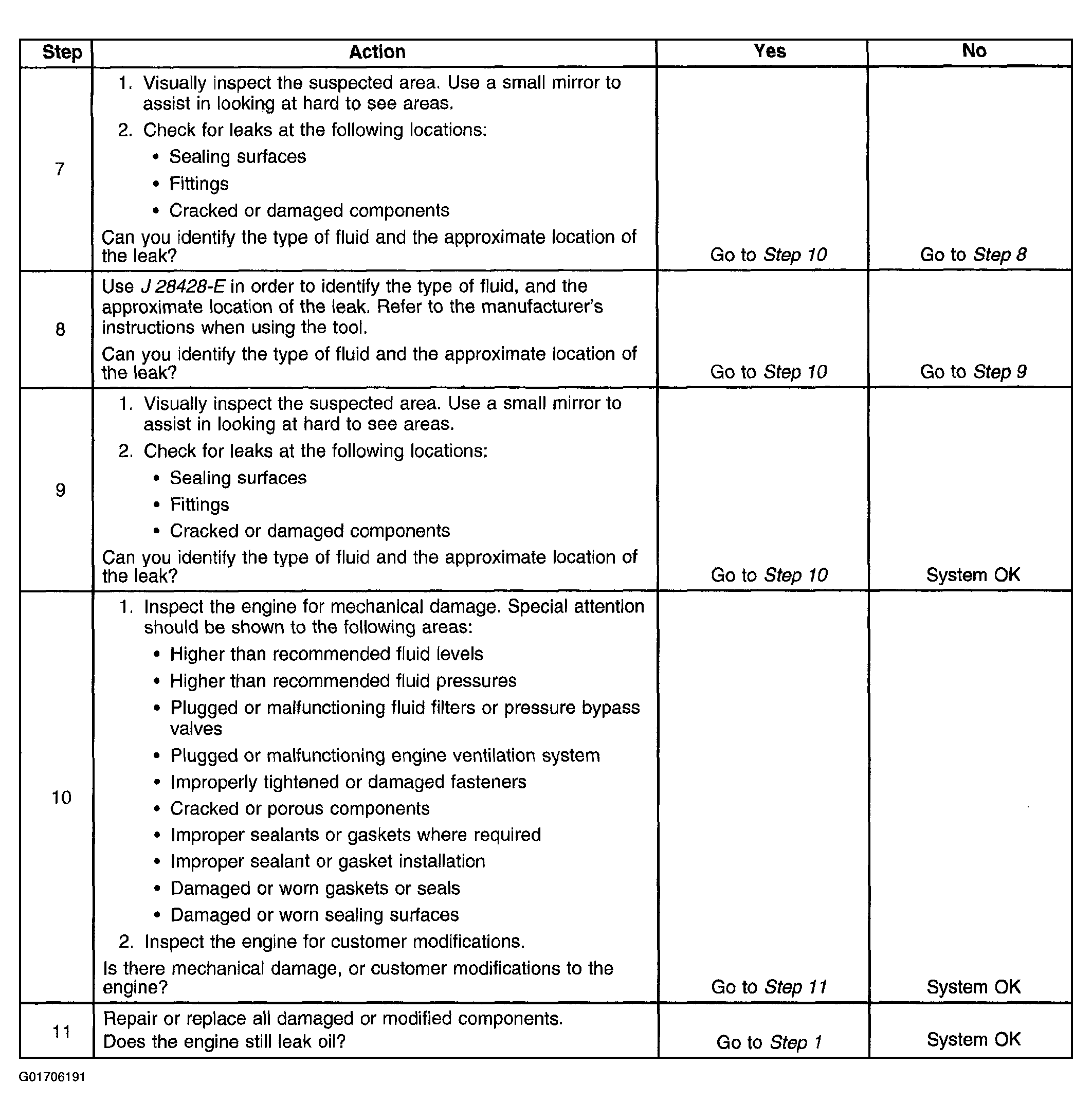

Fig 2: Oil Leak Diagnosis (Steps 7-11)
G01706191Courtesy of GENERAL MOTORS CORP.
