Base Engine Misfire with Abnormal Valve Train Noise

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

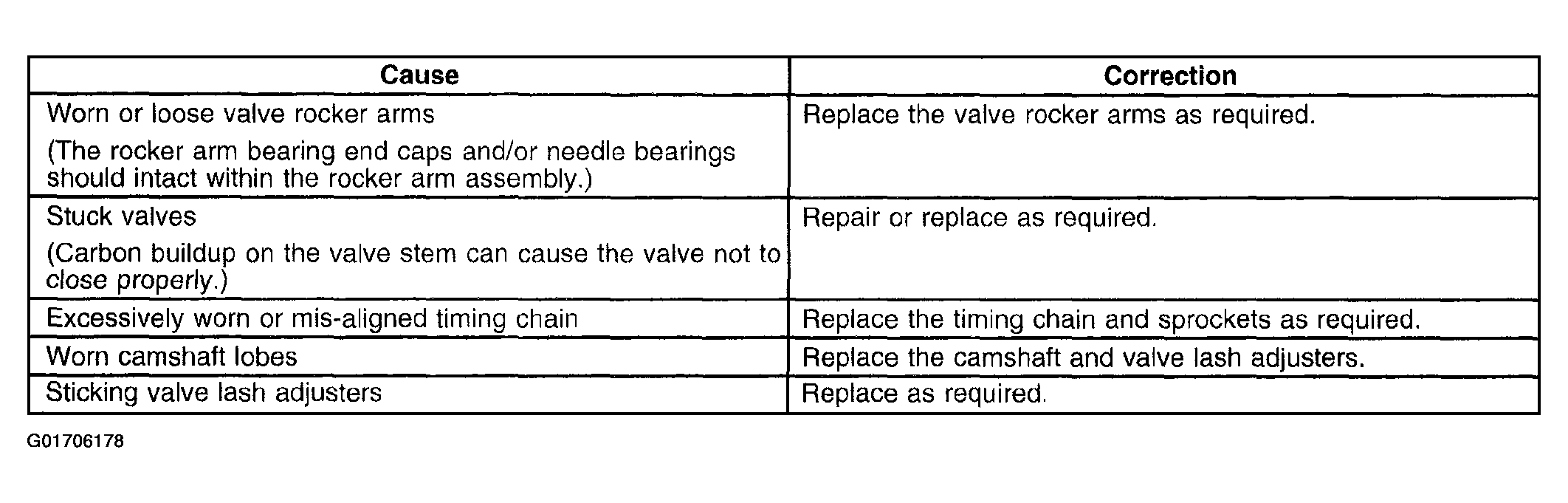

Fig 1: Base Engine Misfire With Abnormal Valve Train Noise
G01706178Courtesy of GENERAL MOTORS CORP.
