Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

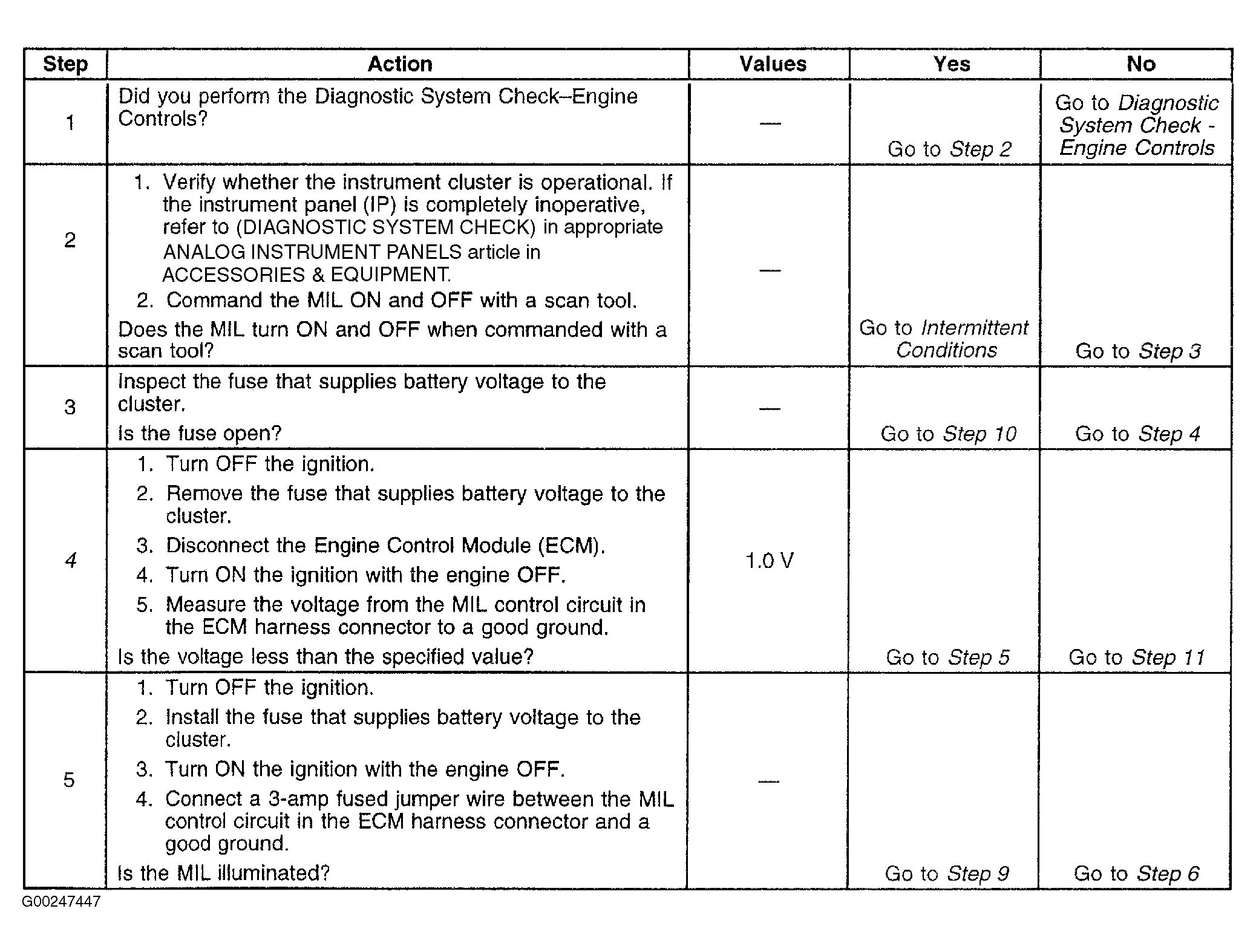

Fig 1: Malfunction Indicator Lamp (MIL) Inoperative (Steps 1-5)
G00247447Courtesy of GENERAL MOTORS CORP.

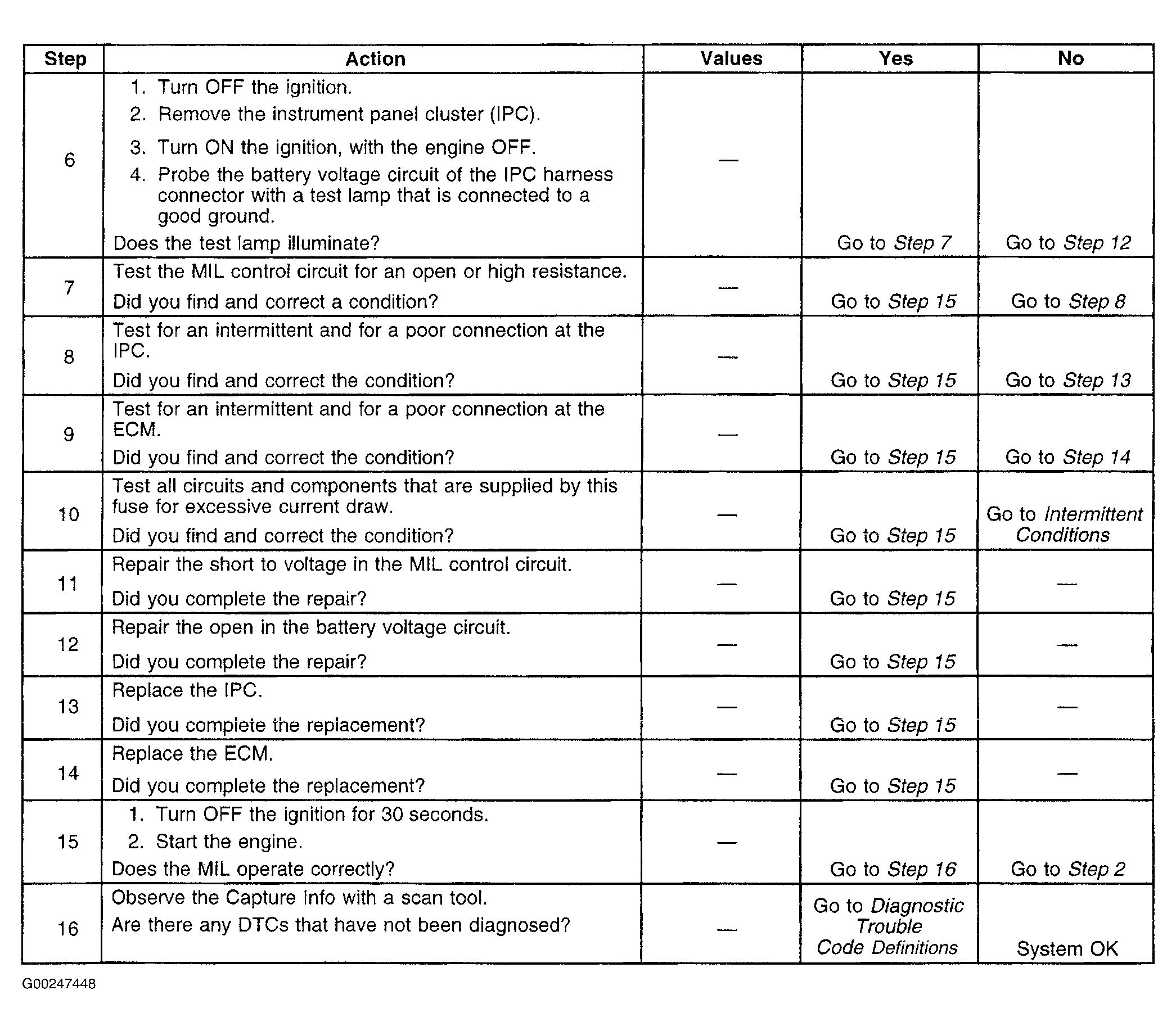

Fig 2: Malfunction Indicator Lamp (MIL) Inoperative (Steps 6-16)
G00247448Courtesy of GENERAL MOTORS CORP.
