Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

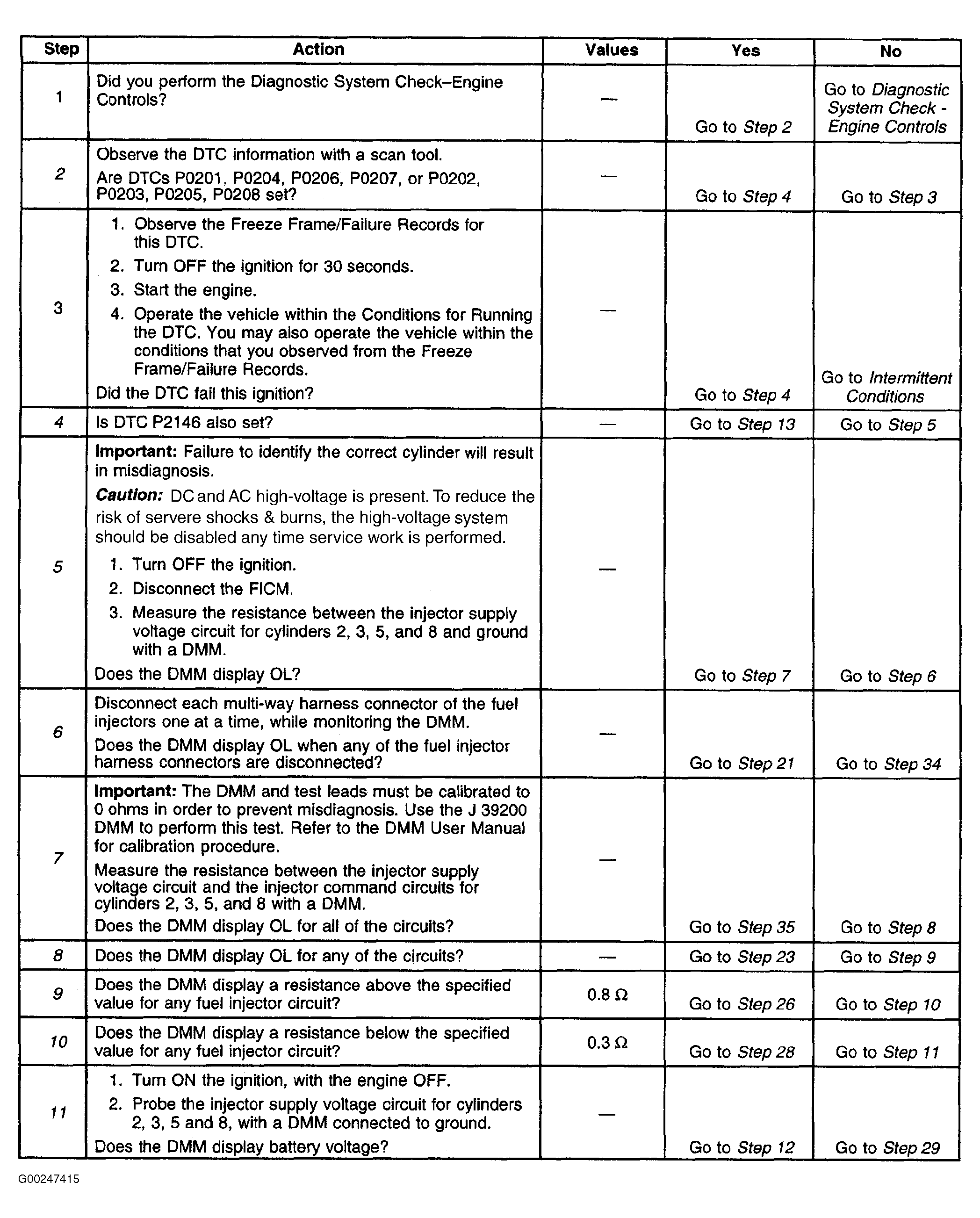

Fig 1: DTC P0201-P0208: Fuel Injector Control Circuits (Steps 1-11)

Courtesy of GENERAL MOTORS CORP.

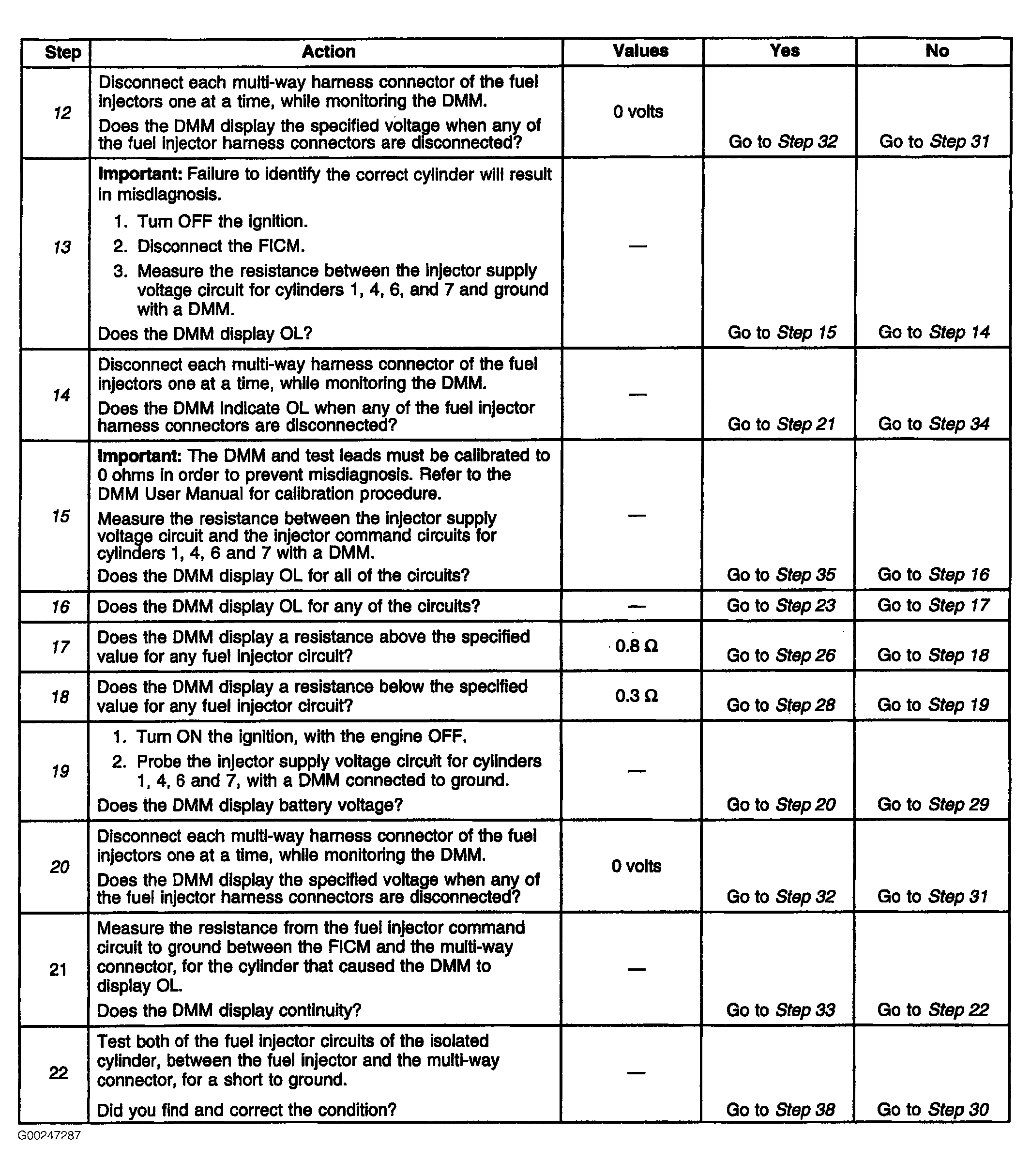

Fig 2: DTC P0201-P0208: Fuel Injector Control Circuits (Steps 12-22)

Courtesy of GENERAL MOTORS CORP.

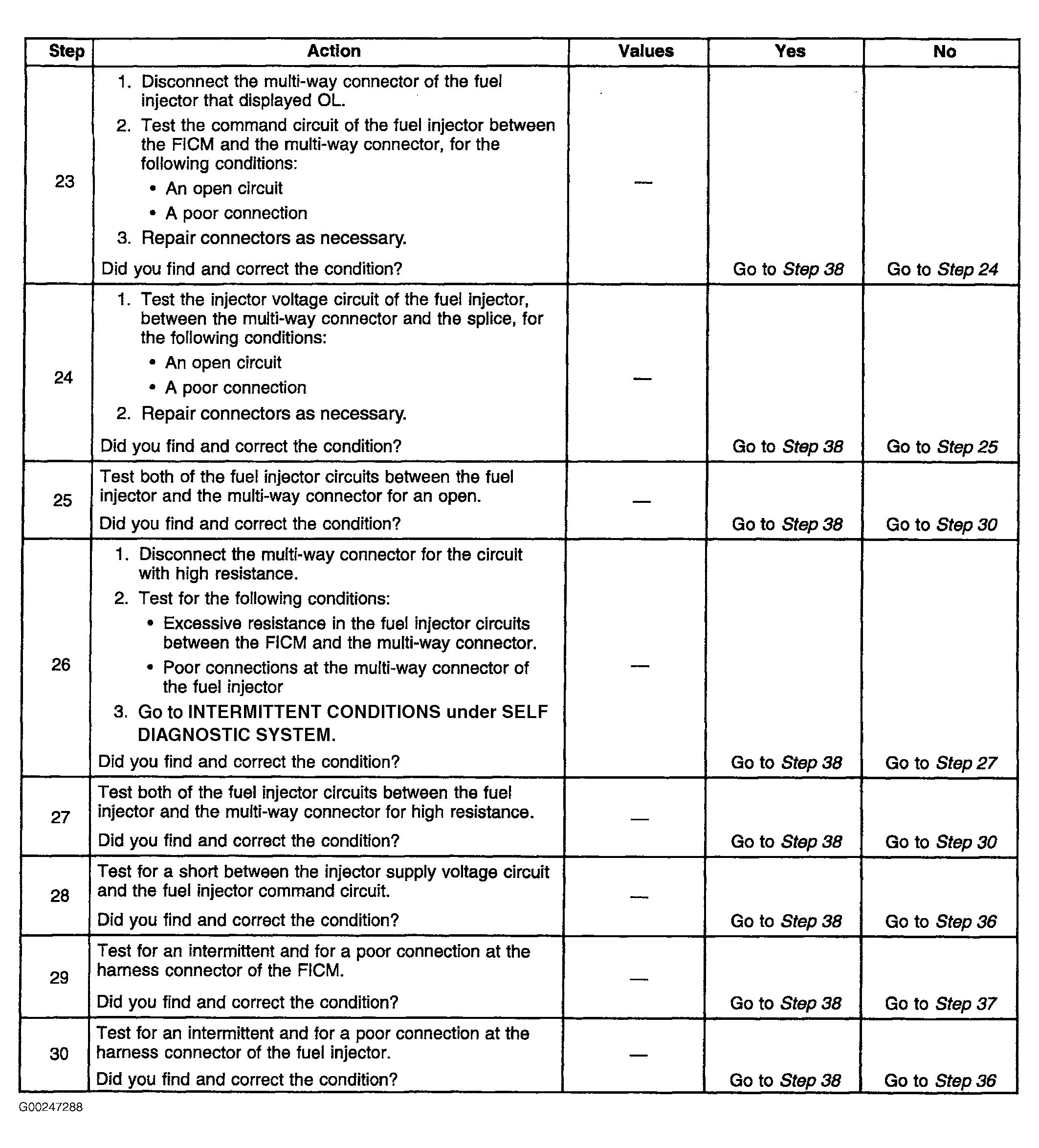

Fig 3: DTC P0201-P0208: Fuel Injector Control Circuits (Steps 23-30)

Courtesy of GENERAL MOTORS CORP.

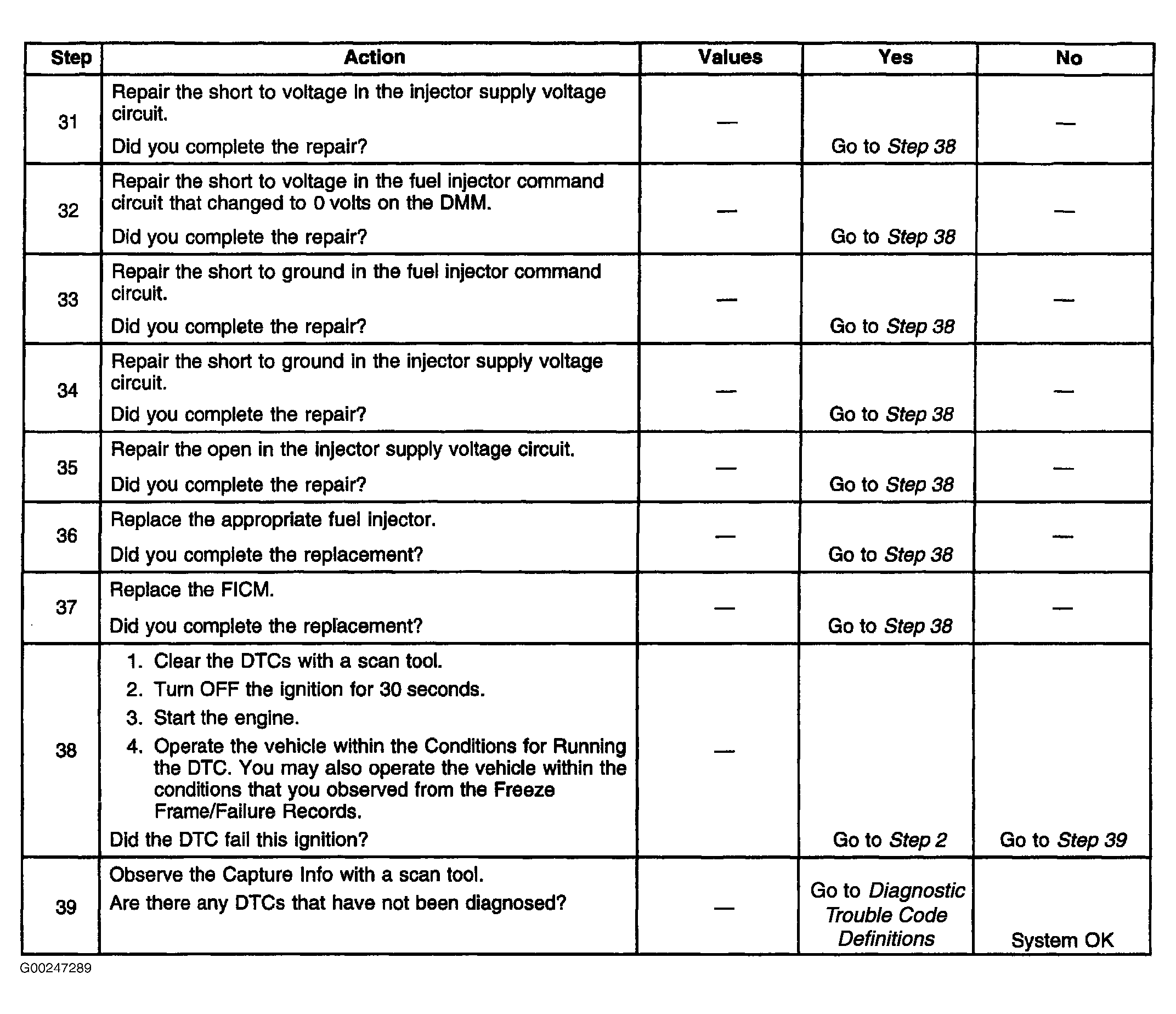

Fig 4: DTC P0201-P0208: Fuel Injector Control Circuits (Steps 31-39)

Courtesy of GENERAL MOTORS CORP.
