Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

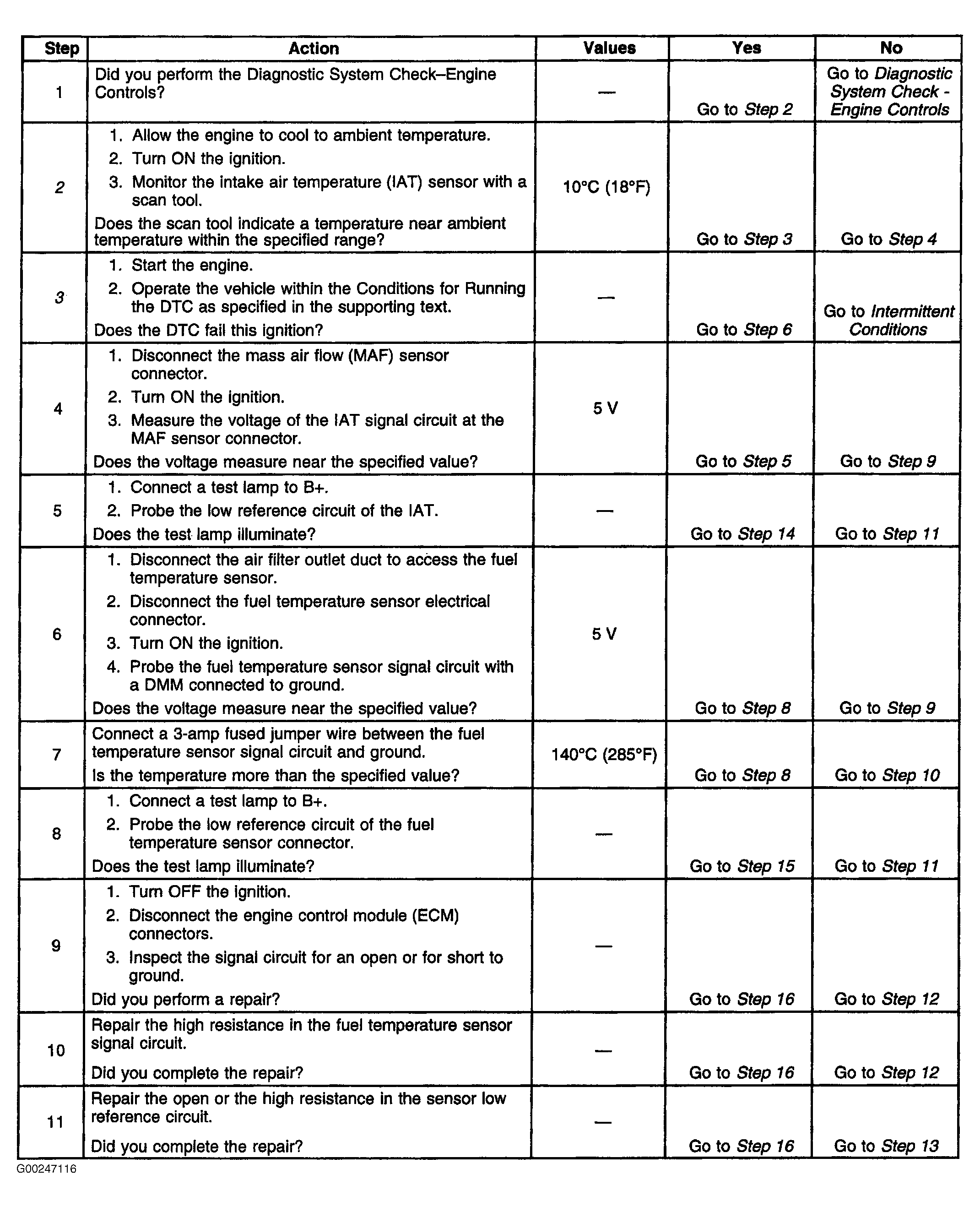

Fig 1: DTC P0181: Fuel Temperature Sensor & IAT Sensor Temperature Not Within Specification (Steps 1-11)
G00247116Courtesy of GENERAL MOTORS CORP.

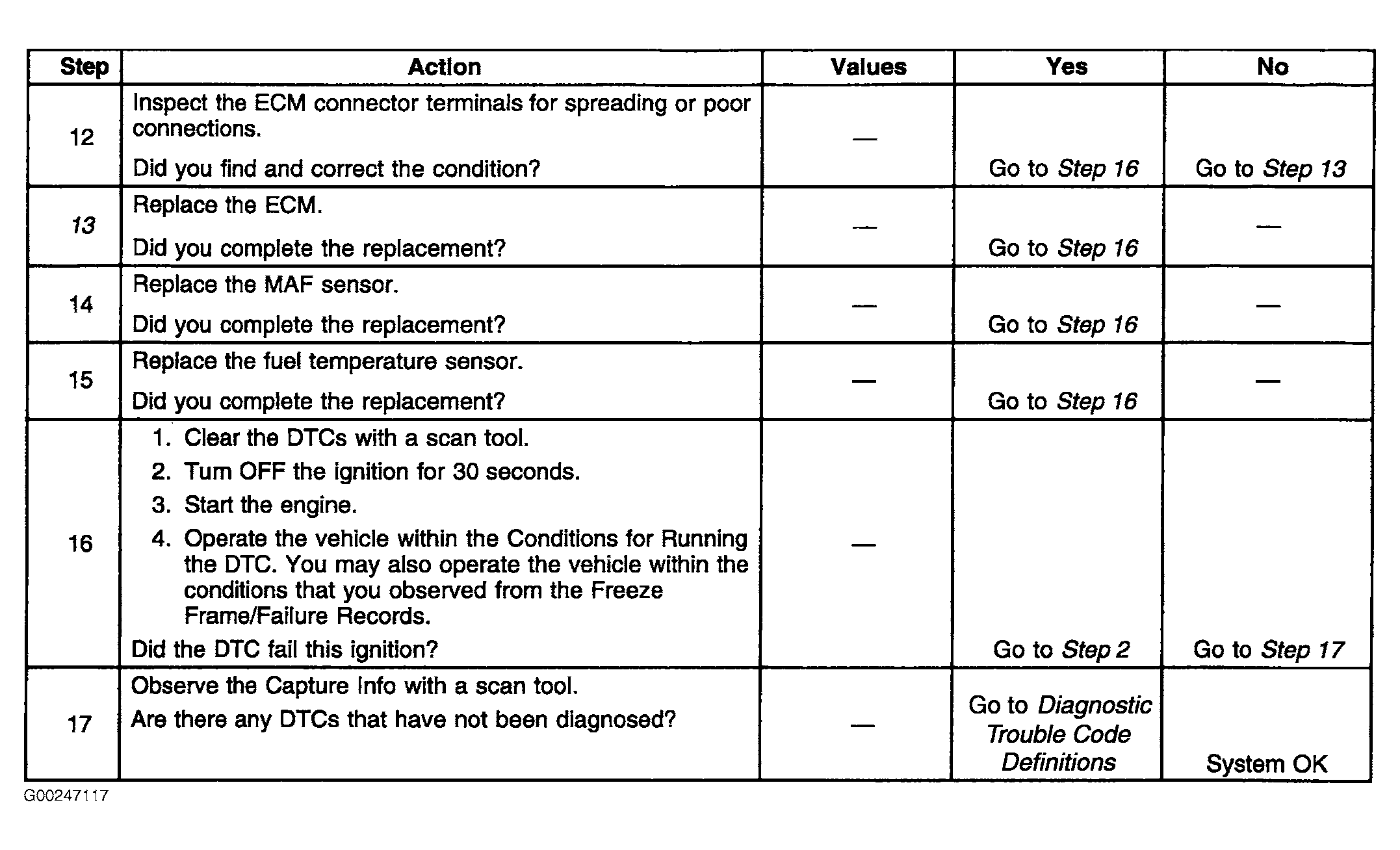

Fig 2: DTC P0181: Fuel Temperature Sensor & IAT Sensor Temperature Not Within Specification (Steps 12-17)
G00247117Courtesy of GENERAL MOTORS CORP.
