Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

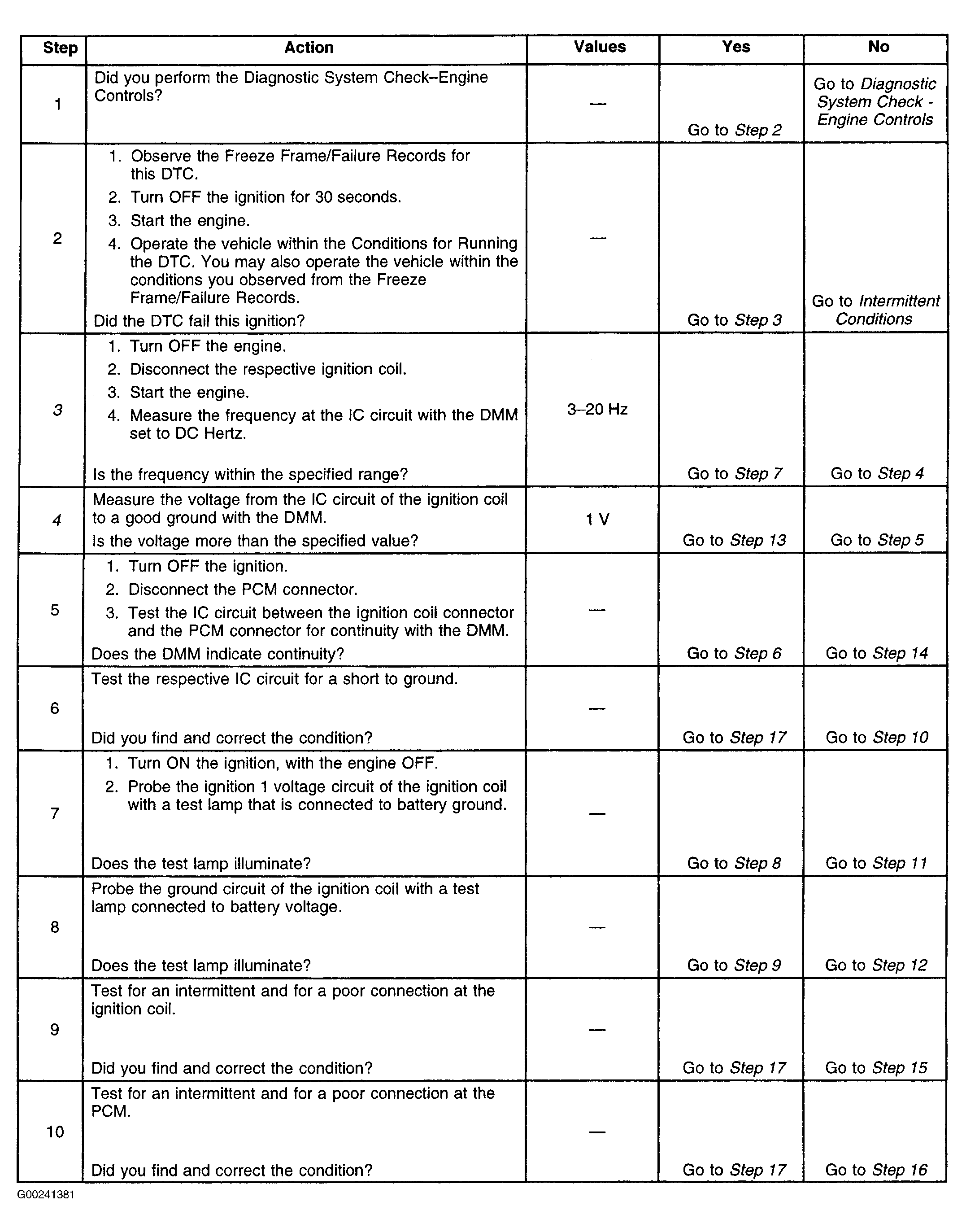

Fig 1: DTC P0351-P0358: Ignition Control Circuit (Steps 1-10)
G00241381Courtesy of GENERAL MOTORS CORP.

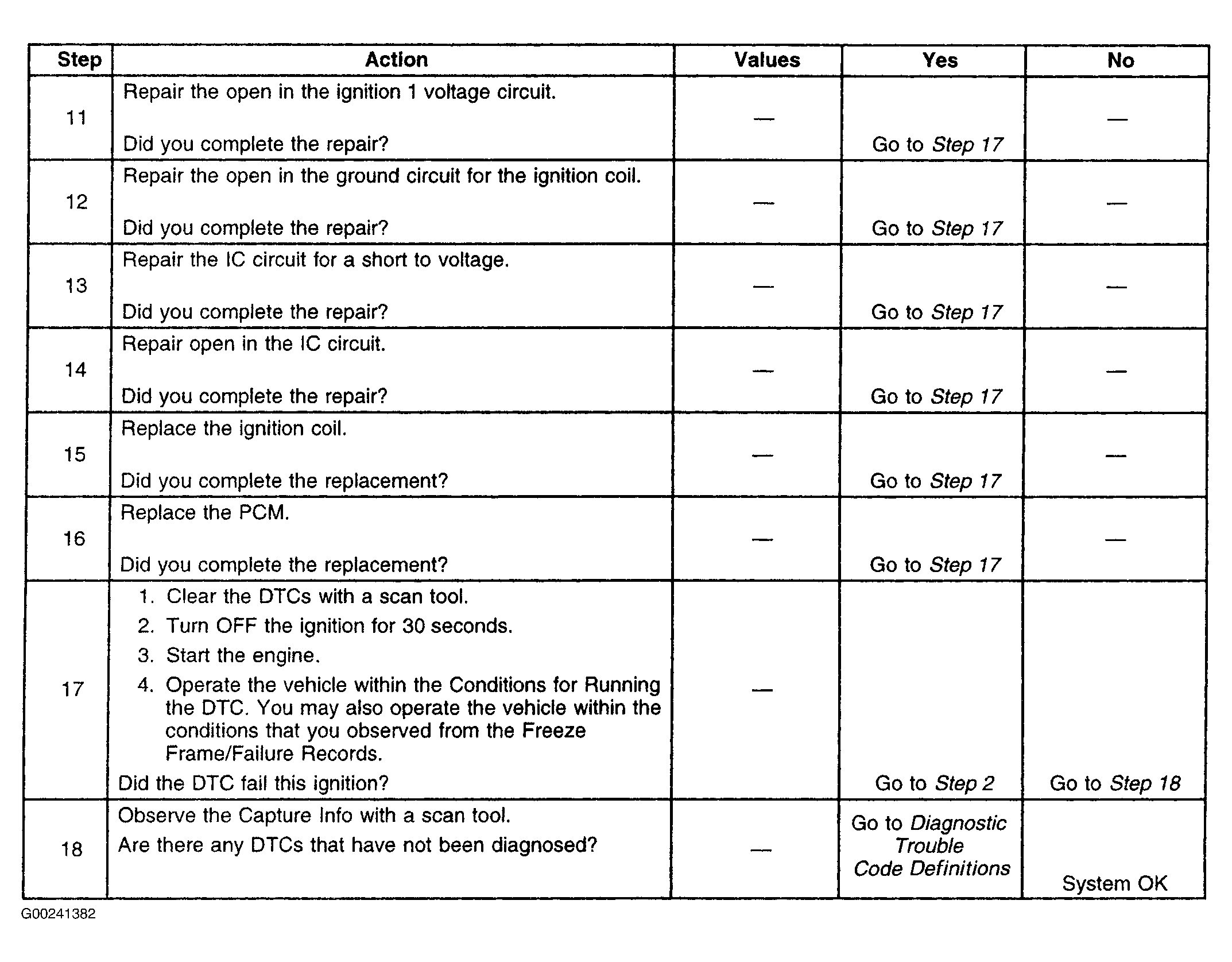

Fig 2: DTC P0351-P0358: Ignition Control Circuit (Steps 11-18)
G00241382Courtesy of GENERAL MOTORS CORP.
