Diagnostic Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Suburban, and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

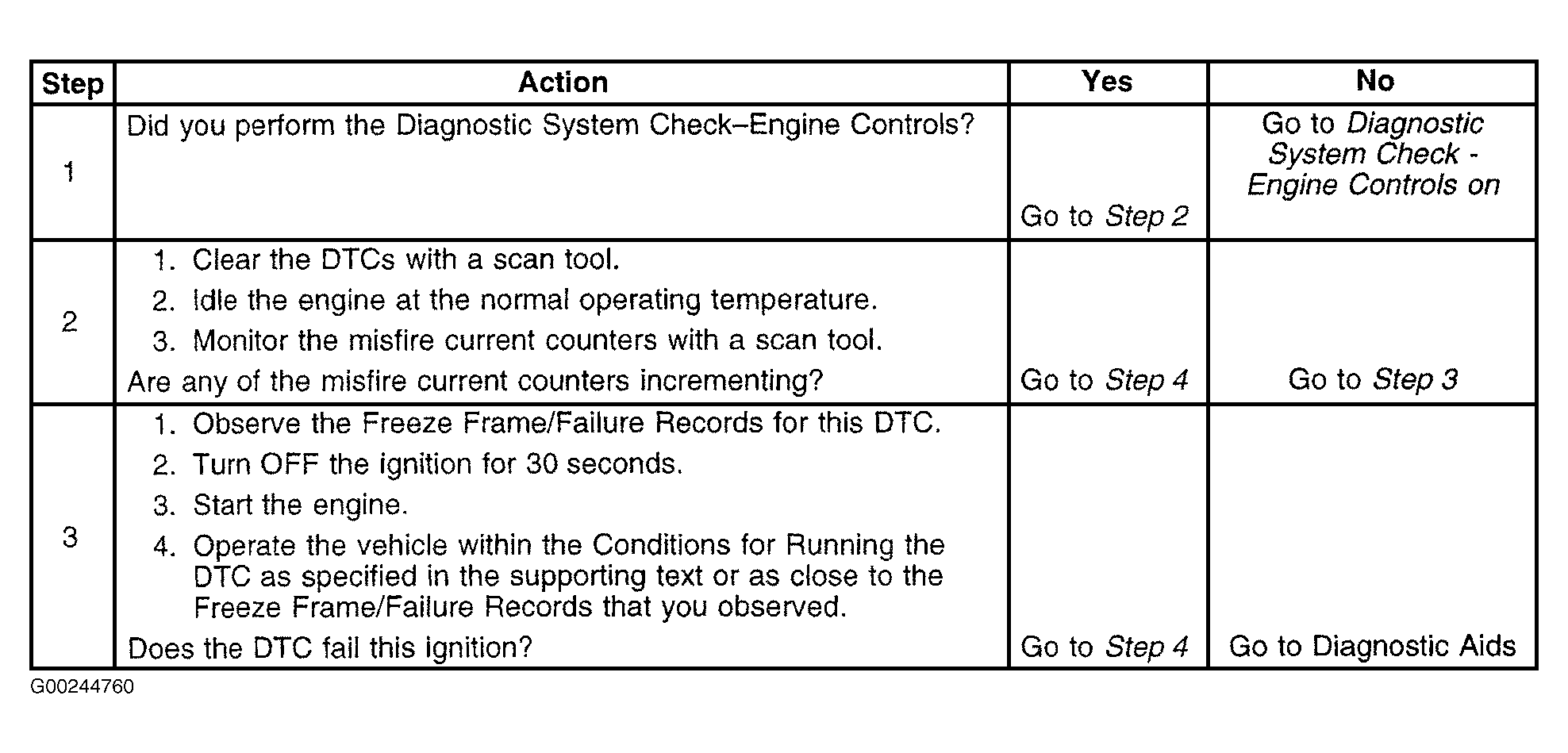

Fig 1: DTC P0200: Fuel Injector Control Circuit (Steps 1-3)

Courtesy of GENERAL MOTORS CORP.

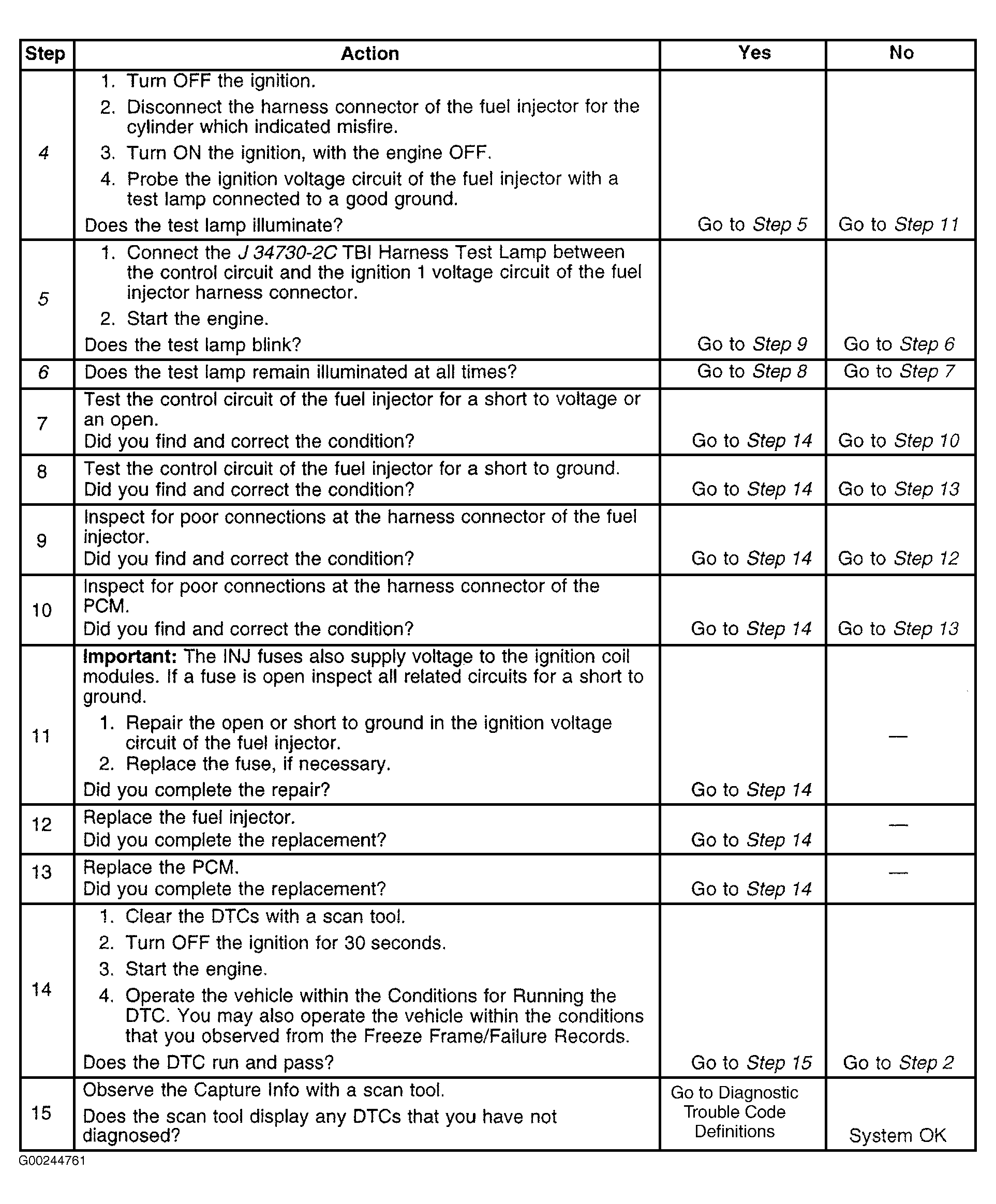

Fig 2: DTC P0200: Fuel Injector Control Circuit (Steps 4-15)

Courtesy of GENERAL MOTORS CORP.
