EVAP Service Port

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix, 2003 Chevrolet Malibu, and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The EVAP service port is located in the EVAP purge pipe between the EVAP purge solenoid and the EVAP canister. The service port is identified by a Green colored cap.

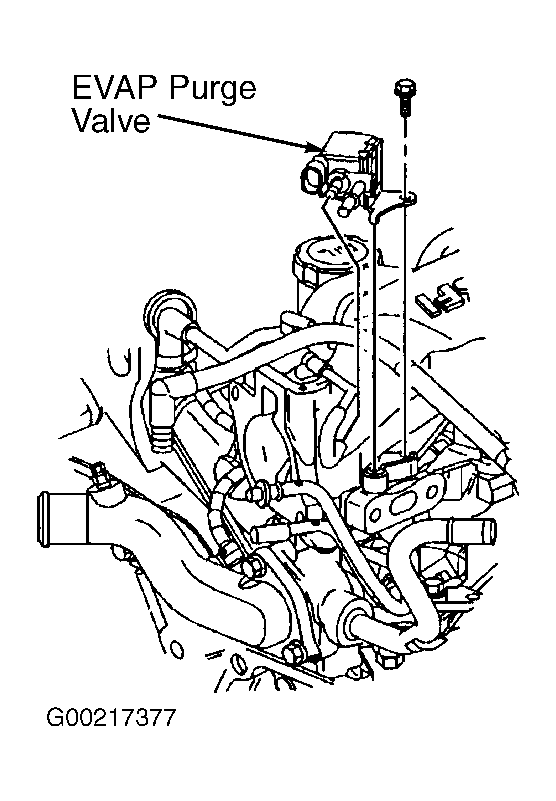

Fig 1: Identifying EVAP Purge Valve

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating EVAP Canister Vent Valve (Century & Grand Prix)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating EVAP Canister & EVAP Canister Vent Solenoid (Malibu)

Courtesy of GENERAL MOTORS CORP.
