WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

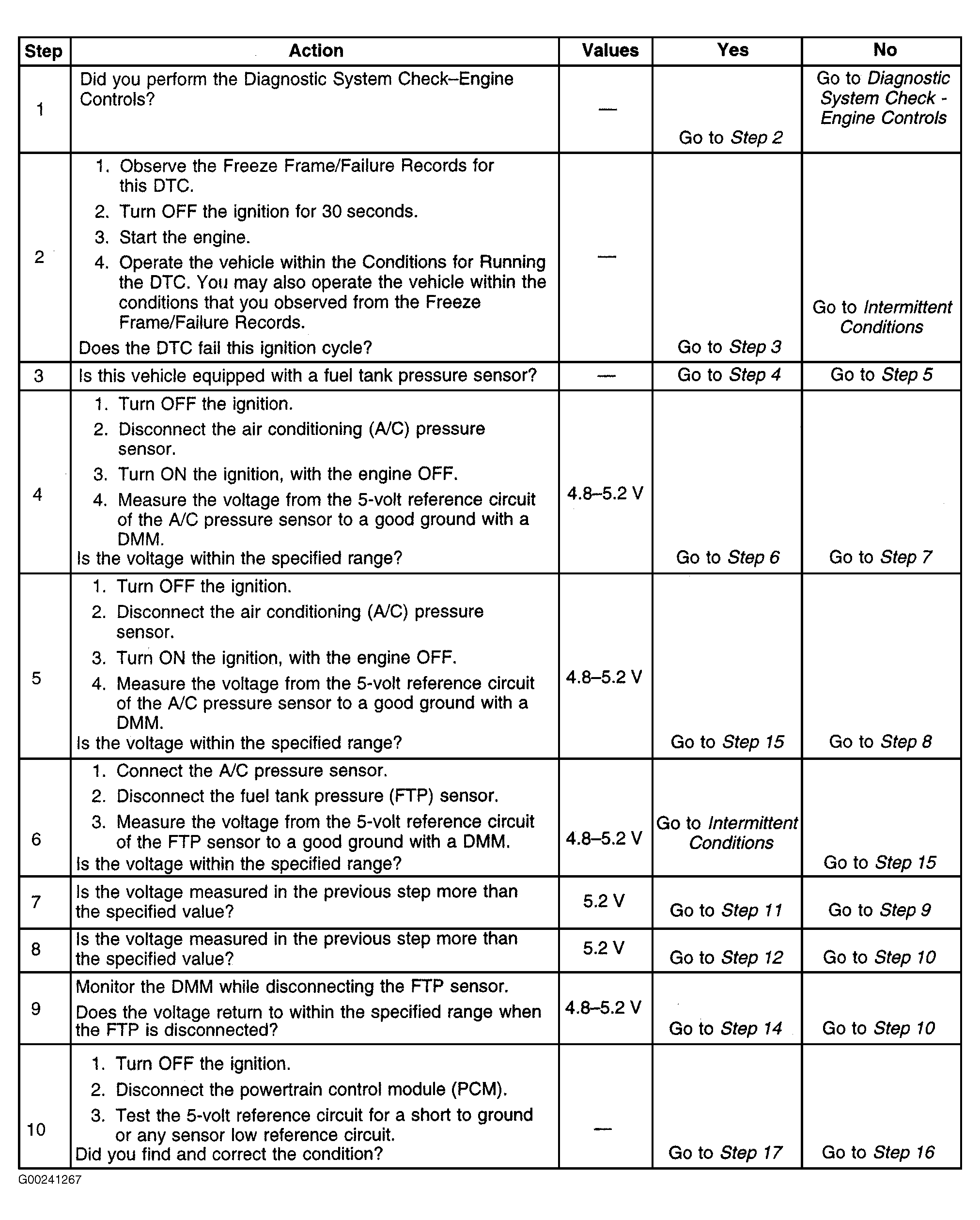

Fig 1: DTC P0651: A/C Pressure Sensor/Fuel Tank Pressure Sensor 5-Volt Reference Circuit Out Of Range (Steps 1-10)
Courtesy of GENERAL MOTORS CORP.

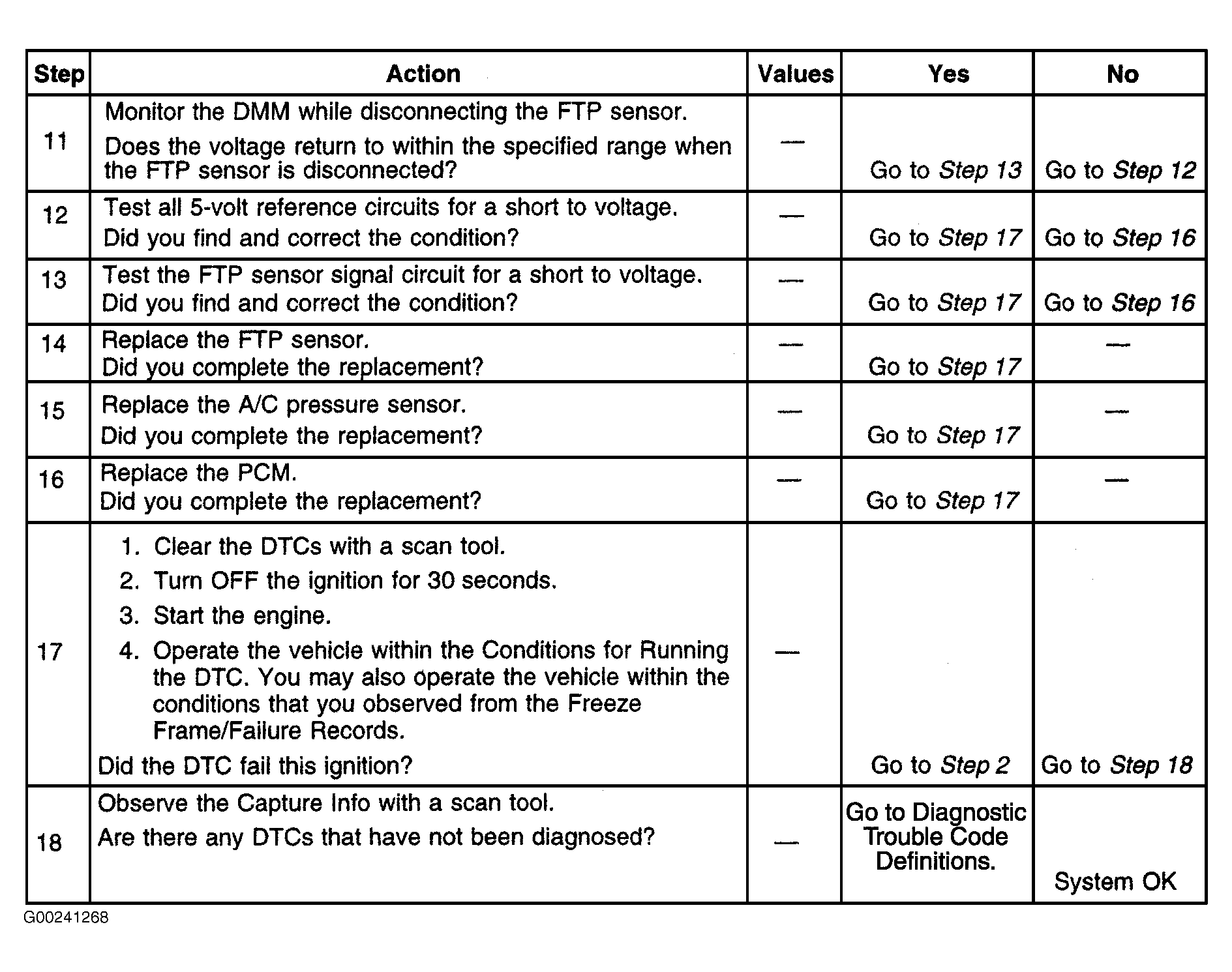

Fig 2: DTC P0651: A/C Pressure Sensor/Fuel Tank Pressure Sensor 5-Volt Reference Circuit Out Of Range (Steps 11-18)
