Diagnostic Procedures

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

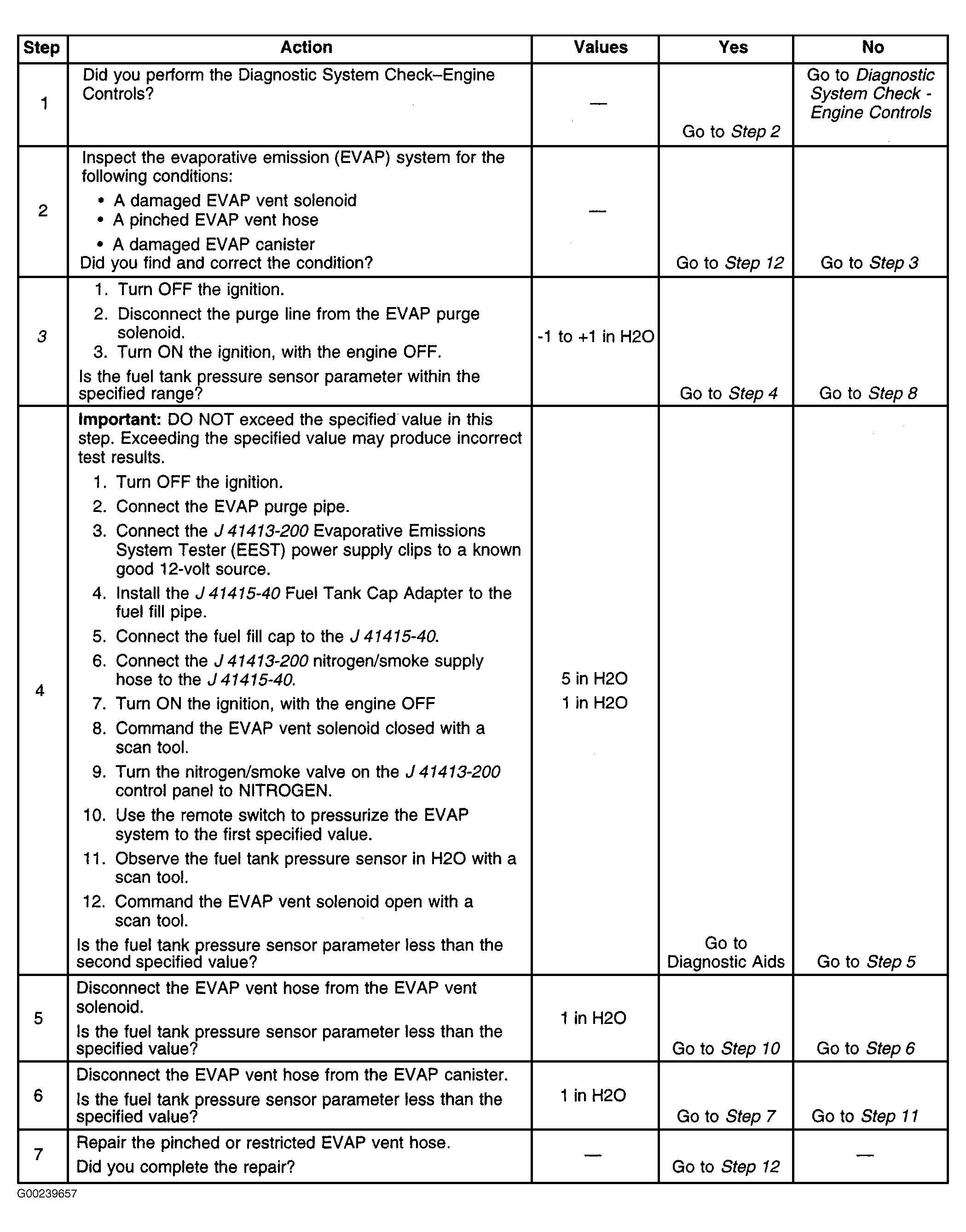

Fig 1: DTC P0446: EVAP Vent Valve Performance (Steps 1-7)
G00239657Courtesy of GENERAL MOTORS CORP.

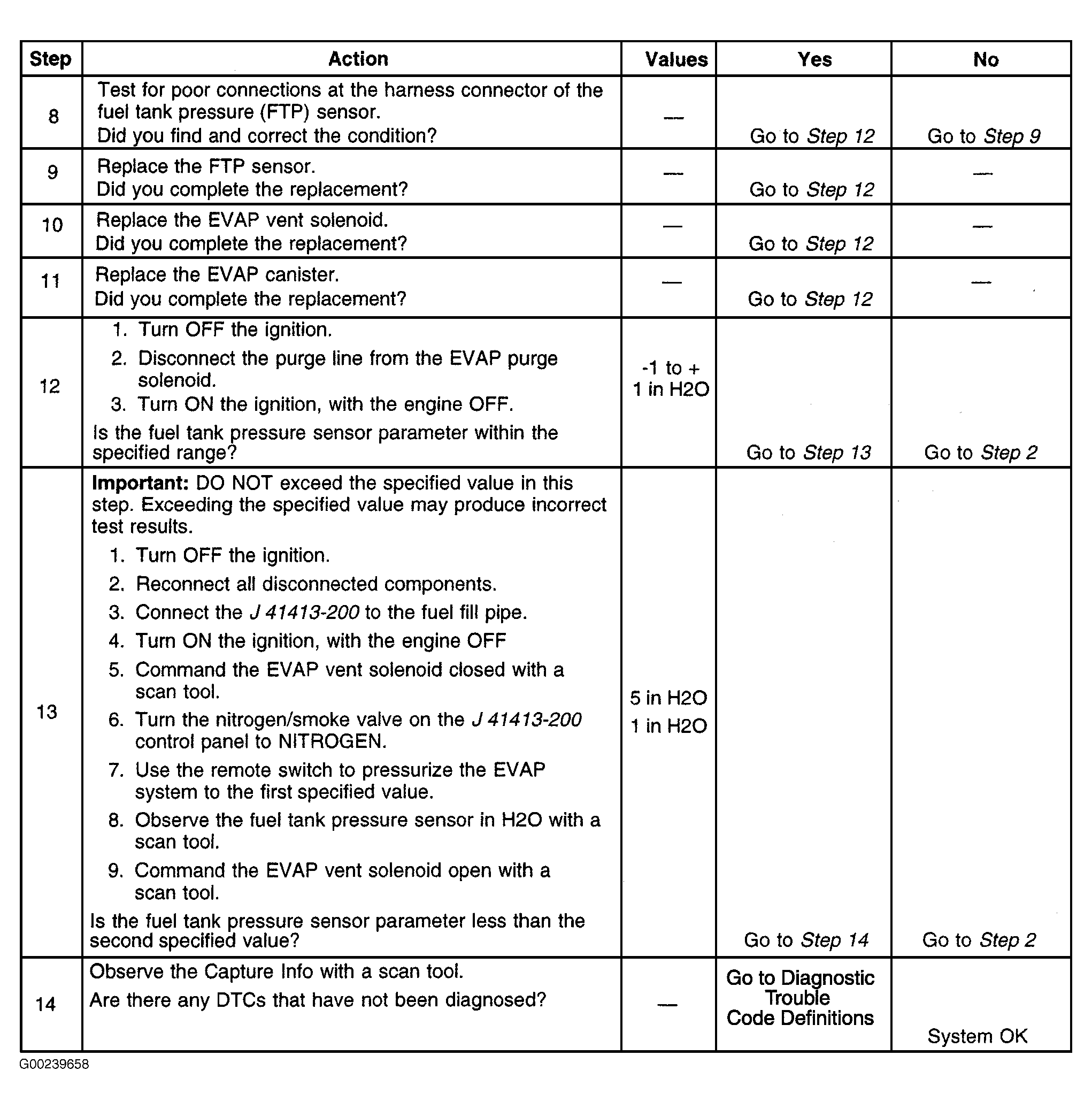

Fig 2: DTC P0446: EVAP Vent Valve Performance (Steps 8-14)
G00239658Courtesy of GENERAL MOTORS CORP.
