Diagnostic Procedures

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

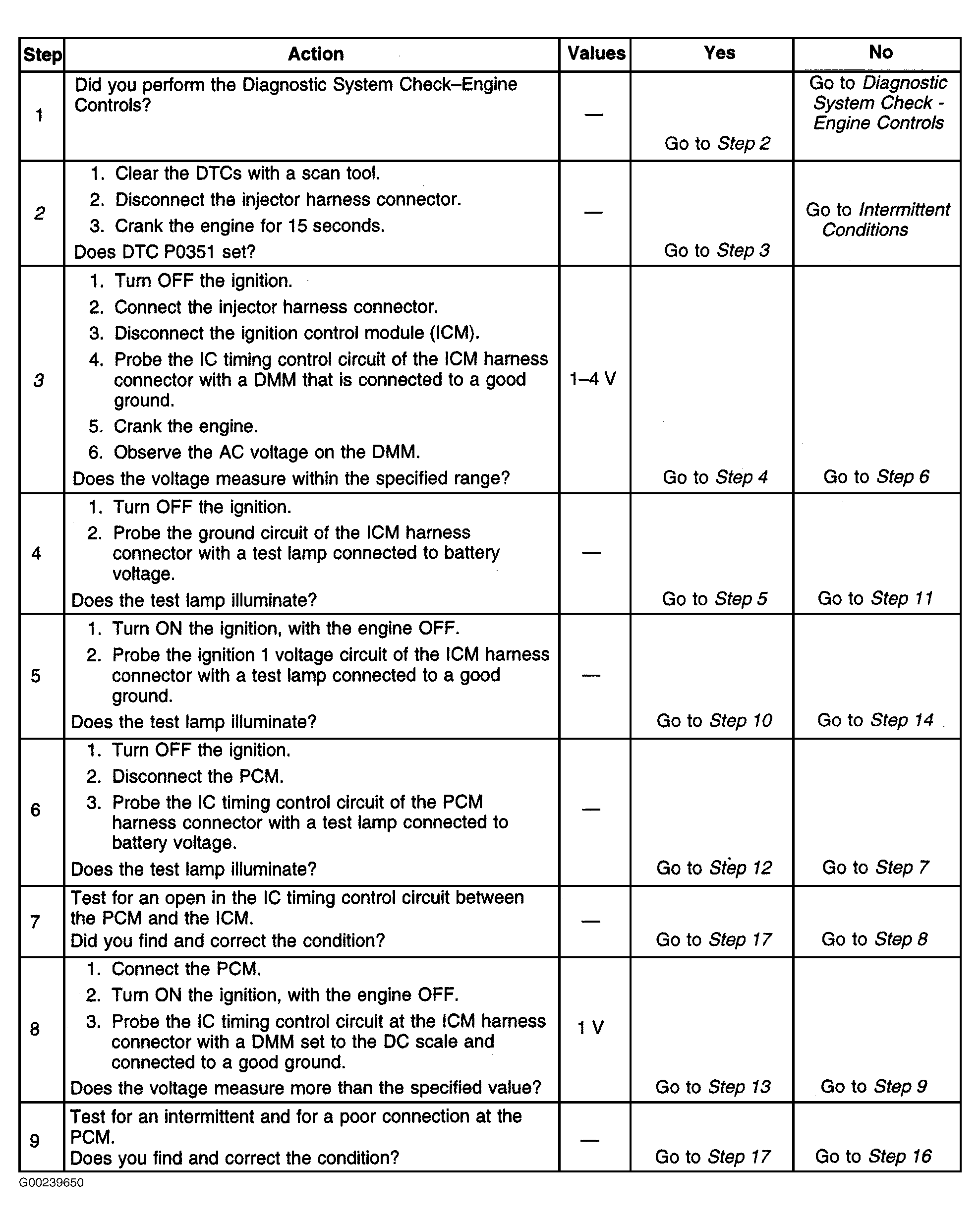

Fig 1: DTC P0351: Ignition Control Circuit (Steps 1-9)
G00239650Courtesy of GENERAL MOTORS CORP.

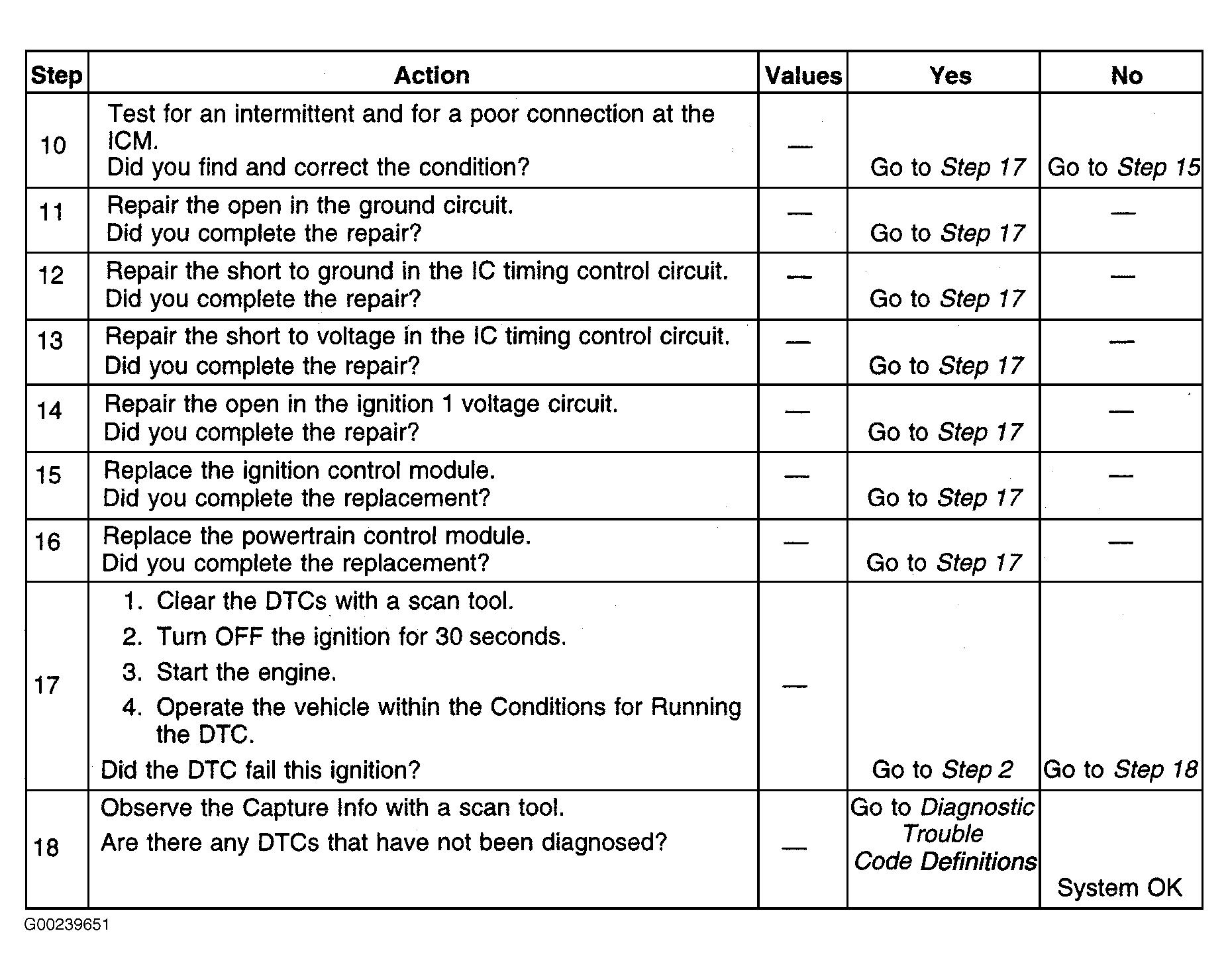

Fig 2: DTC P0351: Ignition Control Circuit (Steps 10-18)
G00239651Courtesy of GENERAL MOTORS CORP.
