Diagnostic Procedures

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

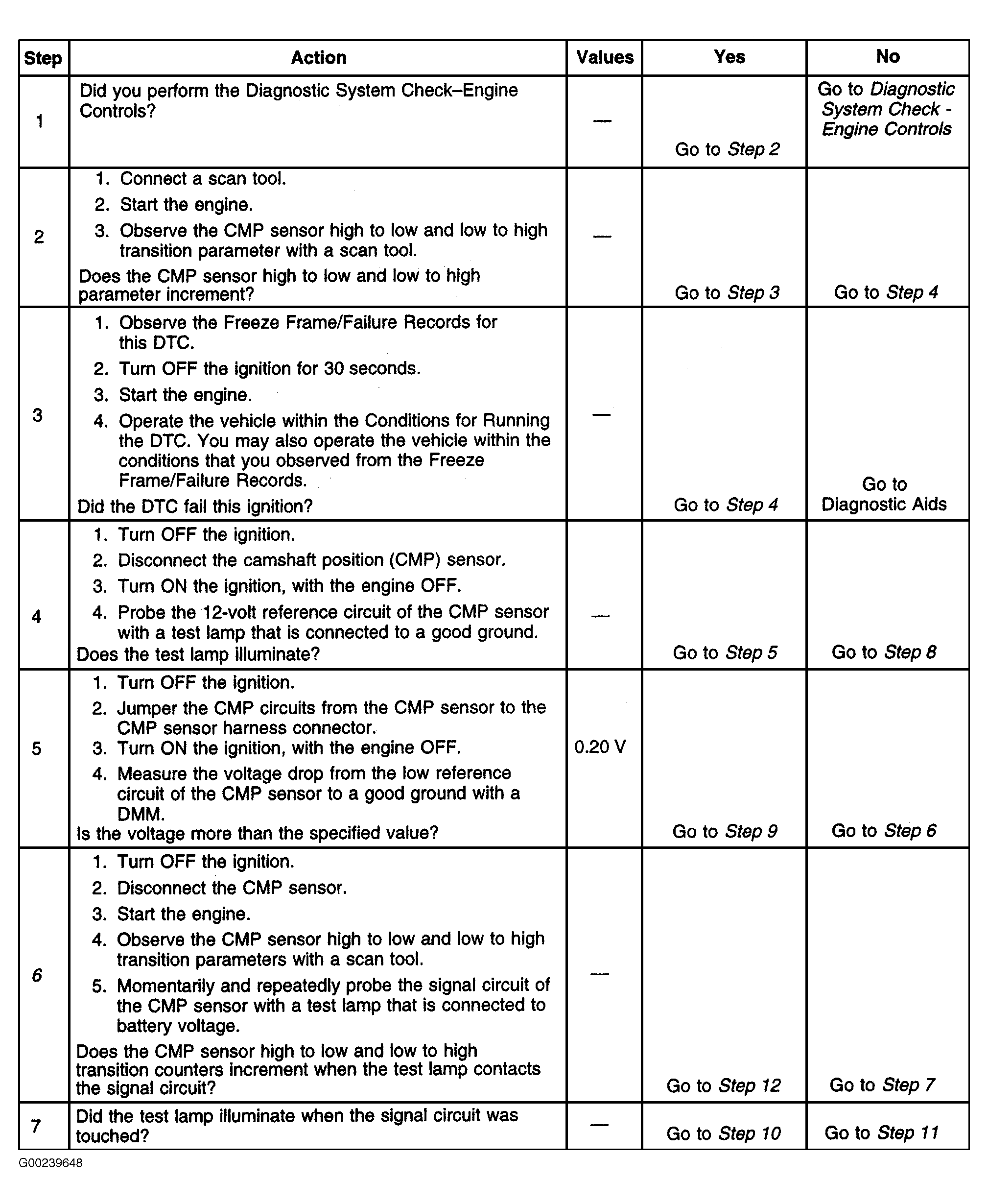

Fig 1: DTC P0341: Camshaft Position Sensor Circuit Performance (Steps 1-7)
G00239648Courtesy of GENERAL MOTORS CORP.

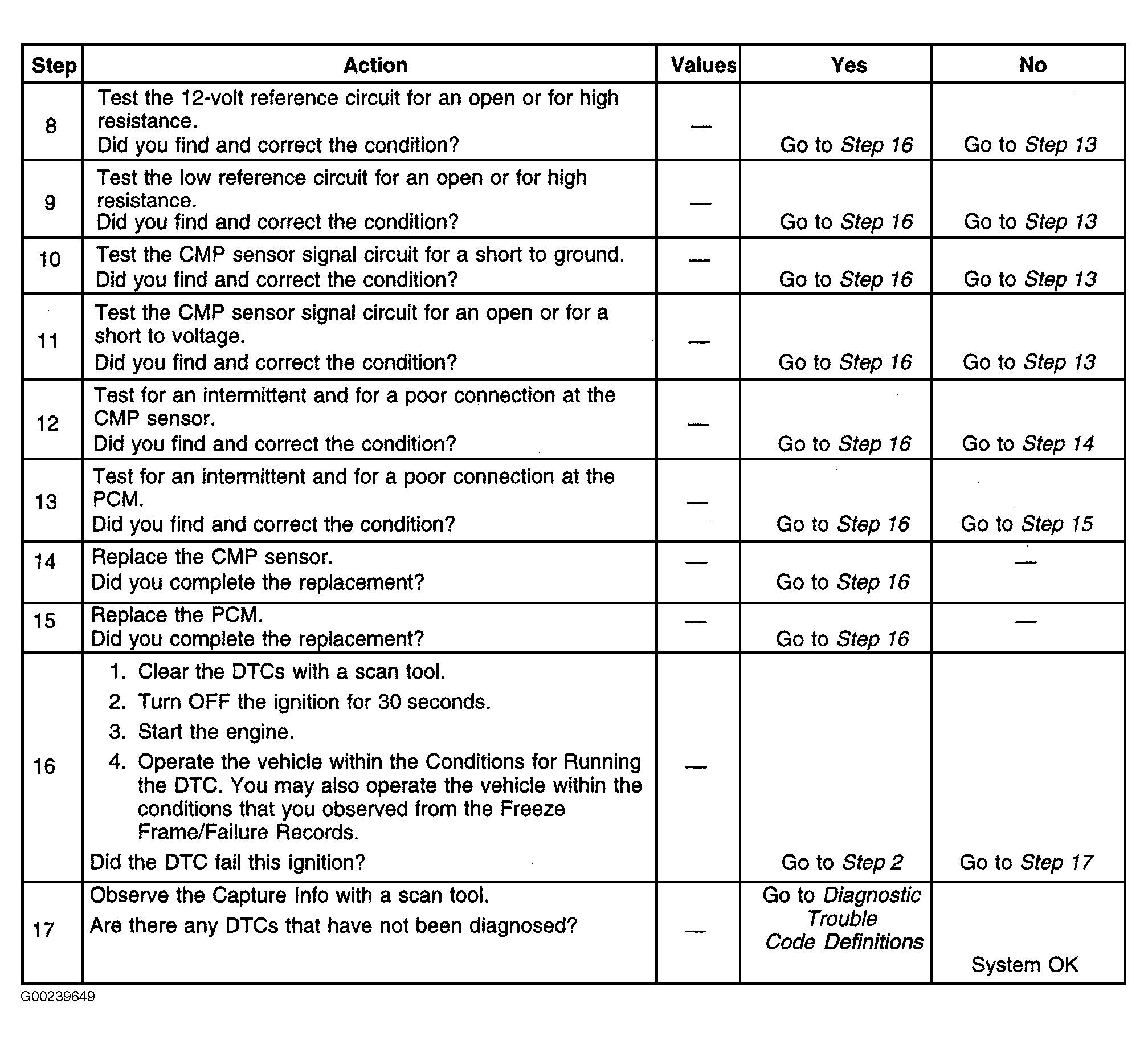

Fig 2: DTC P0341: Camshaft Position Sensor Circuit Performance (Steps 8-17)
G00239649Courtesy of GENERAL MOTORS CORP.
