Camshaft Position Sensor: Installation

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

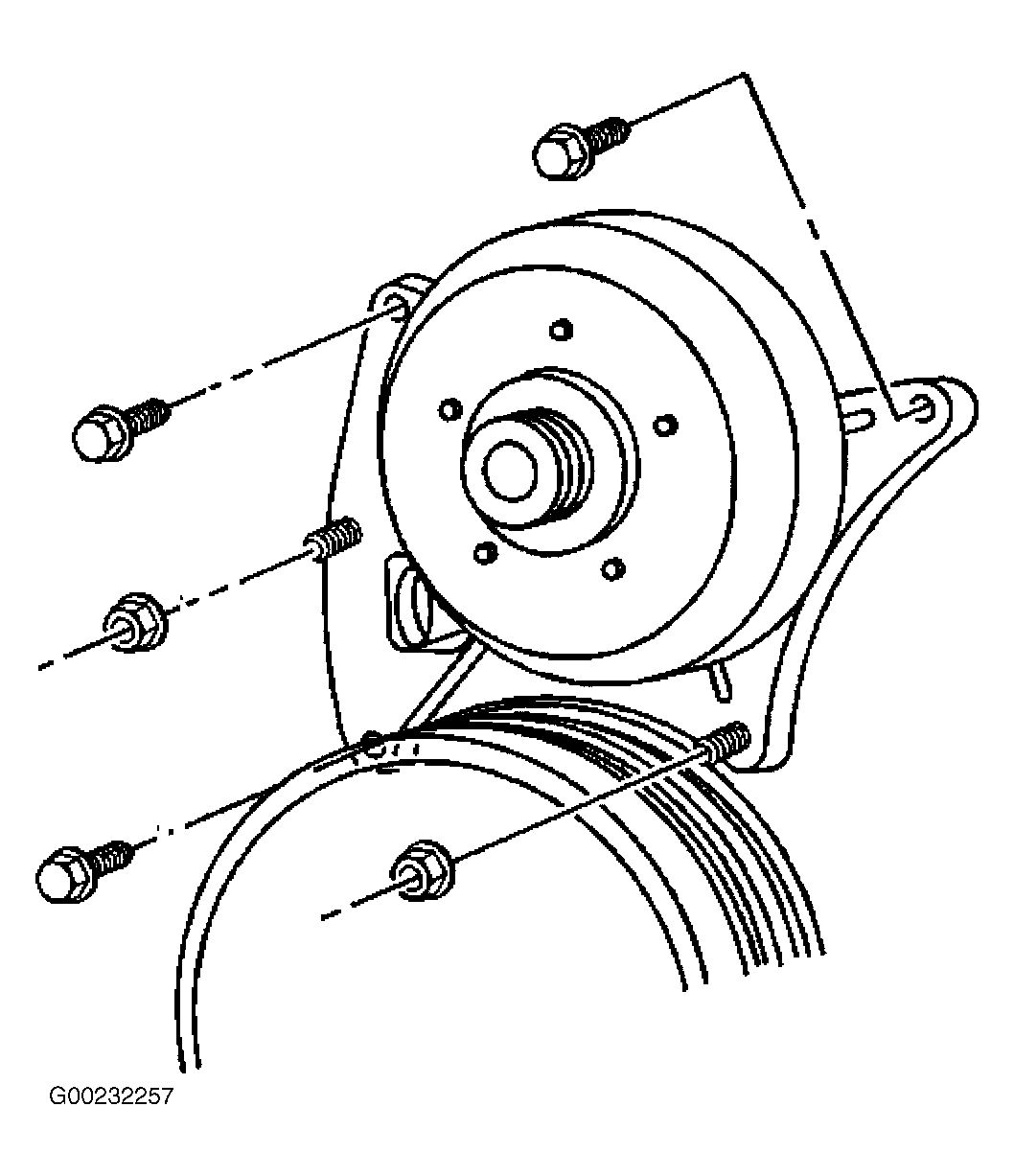

  1. Install the CMP sensor. Install the CMP sensor bolt and tighten to specification. See TORQUE SPECIFICATIONS . Install the fan pulley spacer. See Figure. Install the fan pulley. Install the fan pulley bolts/nuts. Tighten the bolts/nuts to specification. Connect the CMP sensor electrical connector.
  2. Install the fan assembly. Install the Fan Clutch Remover and Installer Set to the fan clutch. See Figure. Tighten the nut clockwise to specification. Install the drive belt. See 6.6L in COOLING SYSTEM SPECIFICATIONS & DRIVE BELT ROUTING article for drive belt routing. Install a 3/8 inch breaker bar into the tensioner opening and rotate the tensioner counterclockwise. Route the drive belt over tension pulley. Slowly release the tension on the tensioner arm. Inspect for proper drive belt installation.
  3. Install the fan shroud. See FAN SHROUD (UPPER)  under MISCELLANEOUS.
