Air Intake Pipe: Installation
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

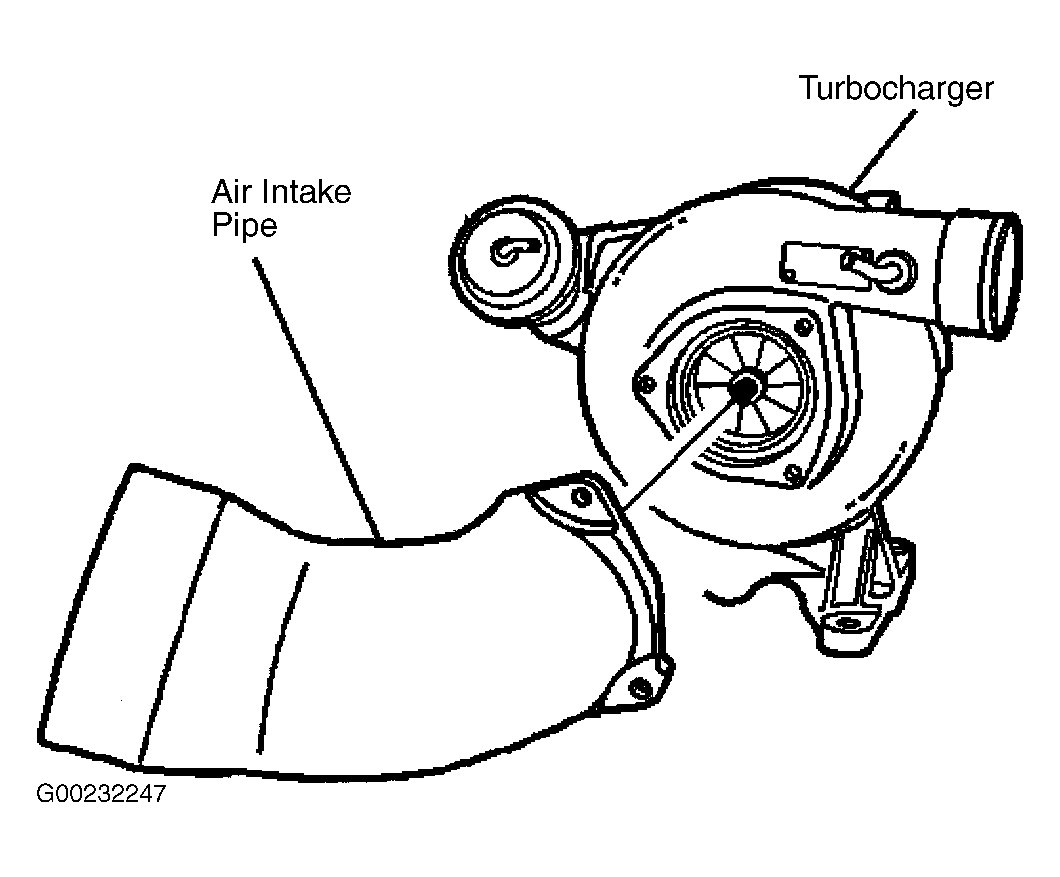

- Clean the mating surfaces on the air intake pipe and the turbocharger. Align the air intake pipe to the turbocharger. Install the air intake pipe bolts and tighten the bolts to specification. See TORQUE SPECIFICATIONS .
- Install PCV valve hose. Install glow plug relay. See GLOW PLUG RELAY under MOTORS, RELAYS & SOLENOIDS.
- Install air cleaner outlet duct. See AIR CLEANER OUTLET DUCT .
