Installation (Without Suction Screen)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

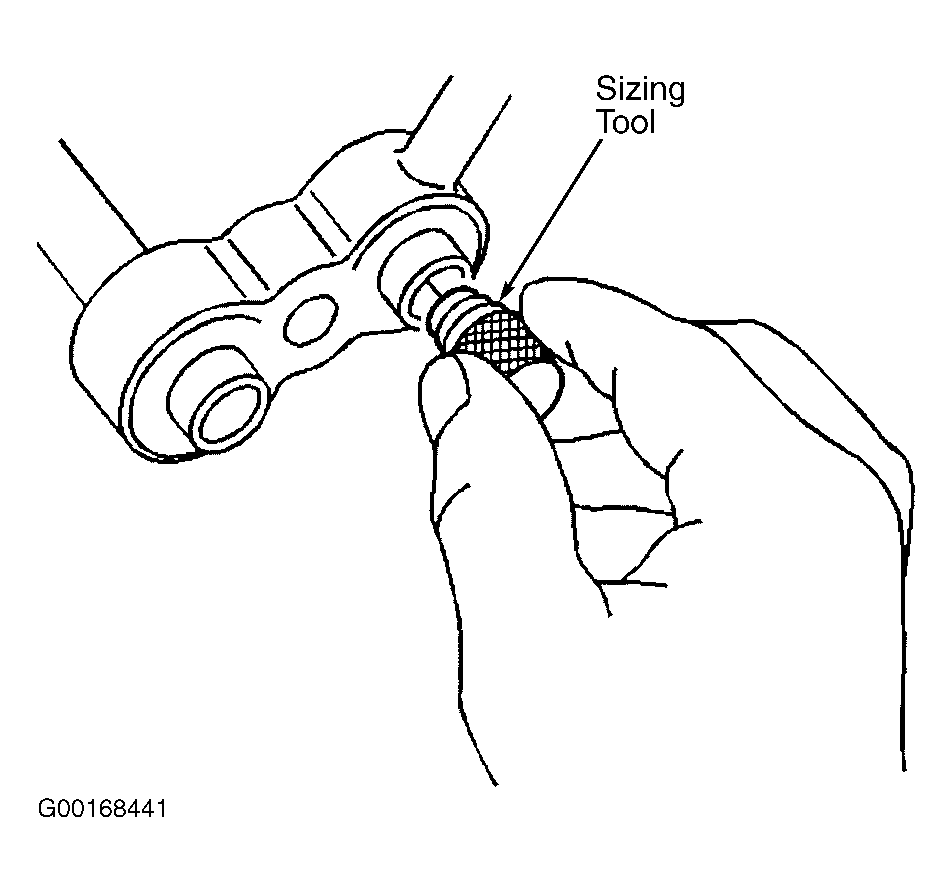

  1. Insert Suction Screen Kit sizing tool into the suction hose to select the correct size suction screen. See Figure. Insert the suction screen into the compressor end of the suction hose.

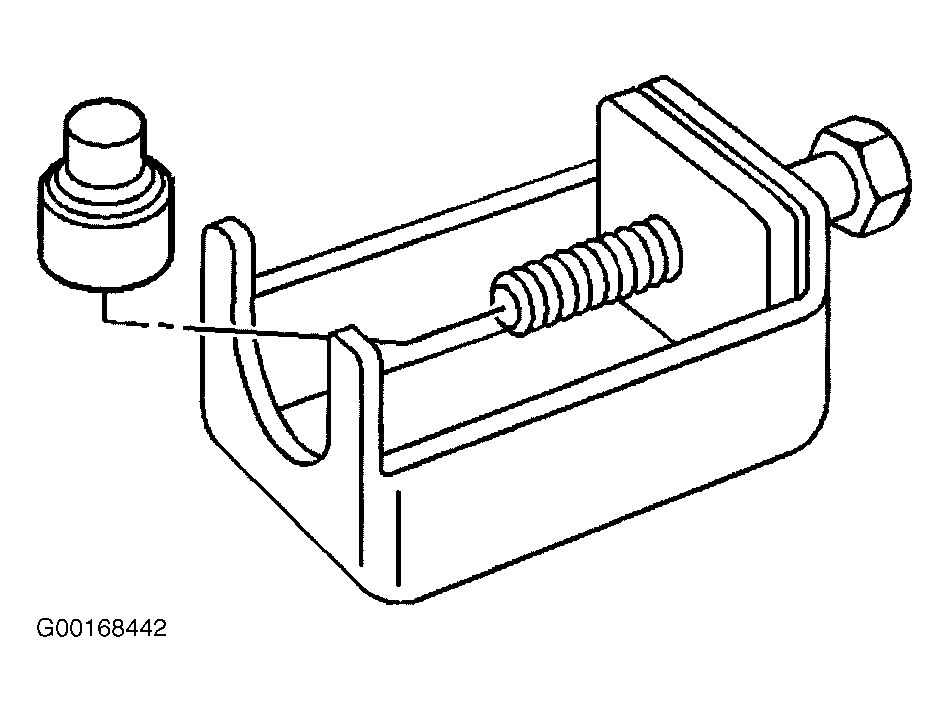

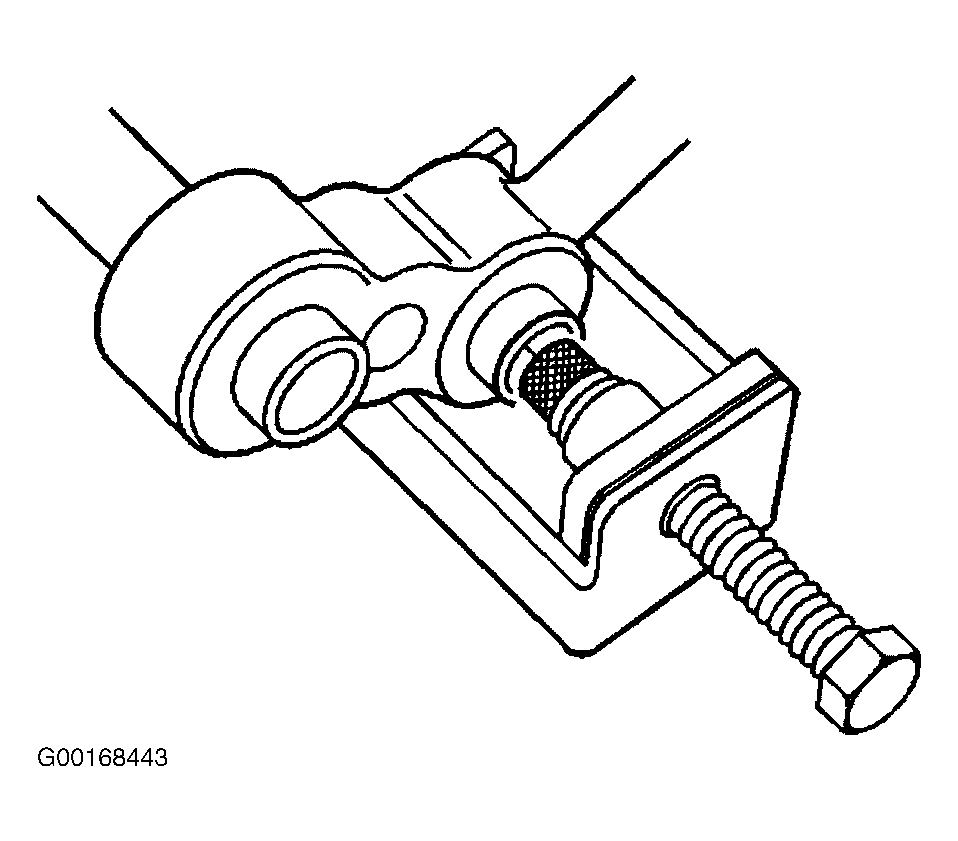

  2. Install the correct mandrel. See Figure. Install the screen installation tool over the end of the suction hose and the suction screen. See Figure.
    3. NOTE: Correct placement of suction screen is critical.
  3. Tighten the forcing screw. The suction screen is fully installed when the screen is flush with the end of the suction hose fitting. Remove the suction screen tool from the suction hose.
  4. Install an A/C refrigerant filter. See A/C REFRIGERANT FILTER . Install the suction screen notification label.
