Removal & Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the heater/vent module. Disconnect the recirculation actuator electrical connection. See Figure.

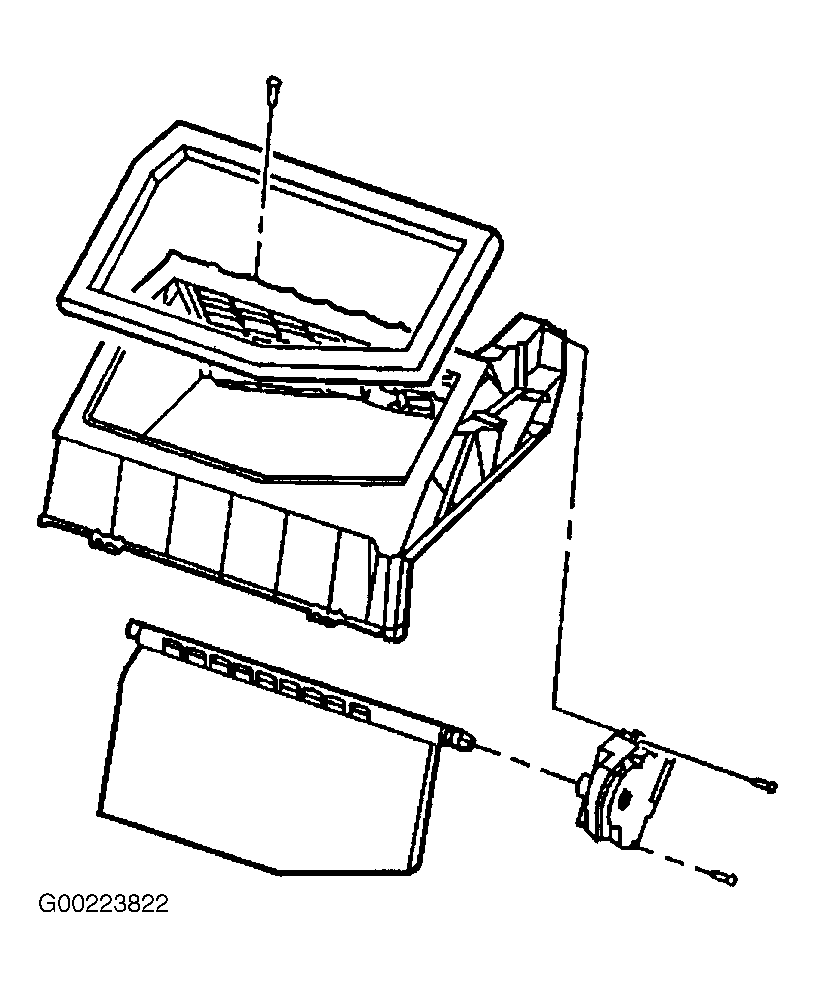

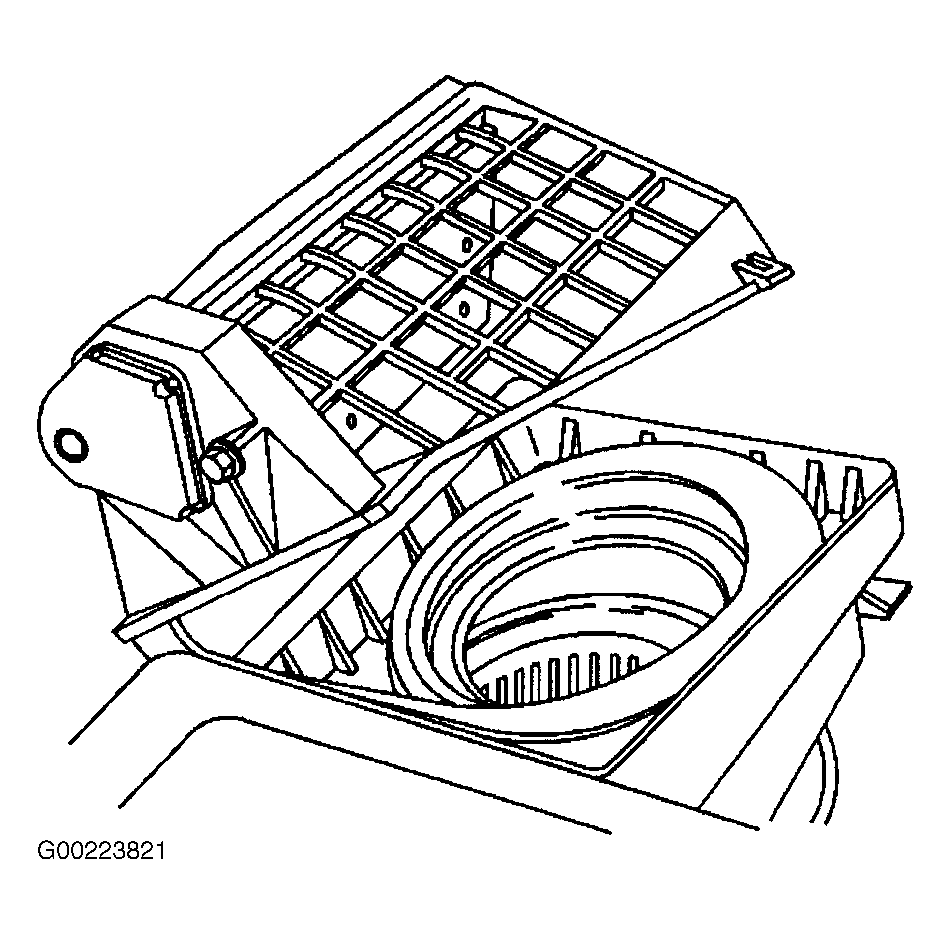

- Remove the recirculation actuator mounting screws. See Fig 1. Remove the recirculation actuator. Remove the recirculation door. See Fig 2. To install, reverse removal procedure.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
