RECIRCULATION Actuator: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

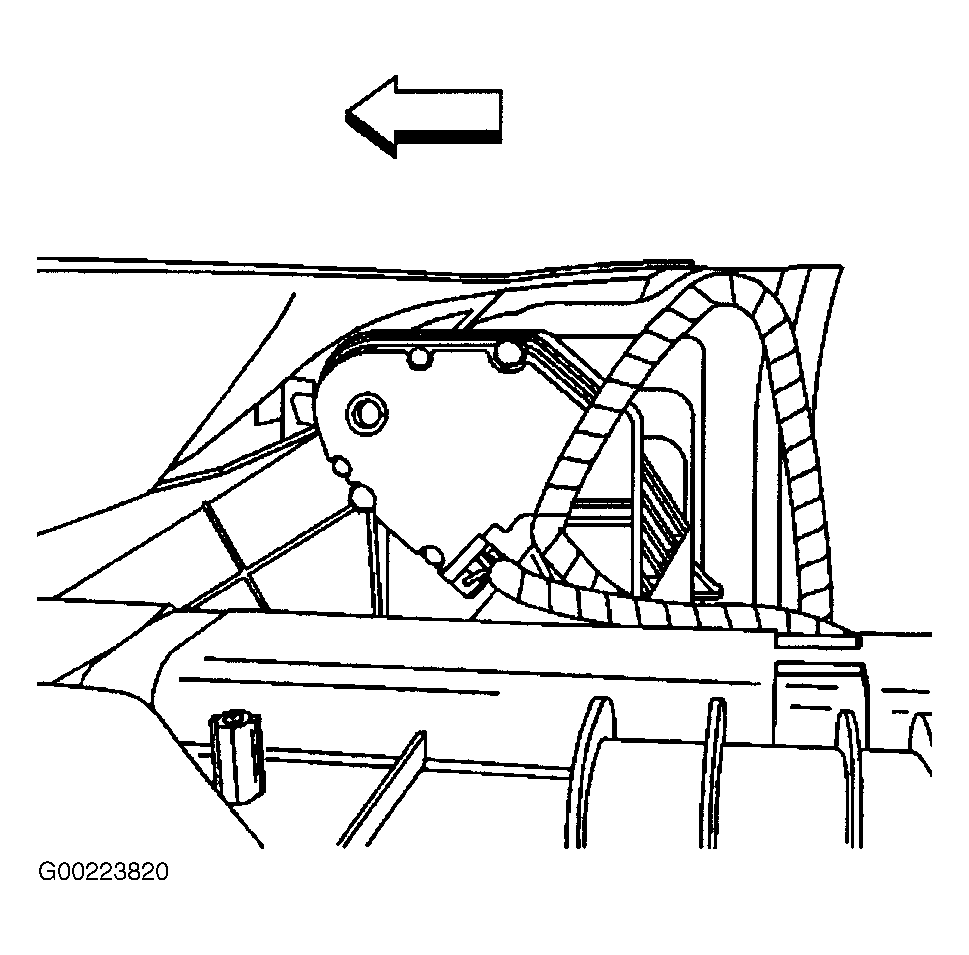

Install the recirculation actuator. See Figure. Install the recirculation actuator retaining screws. Tighten to specification. See TORQUE SPECIFICATIONS . Connect the electrical connector to the recirculation actuator. See Figure. Install the air distribution duct.
