Installation (Auxiliary - Avalanche, Escalade, Suburban, Tahoe & Yukon)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

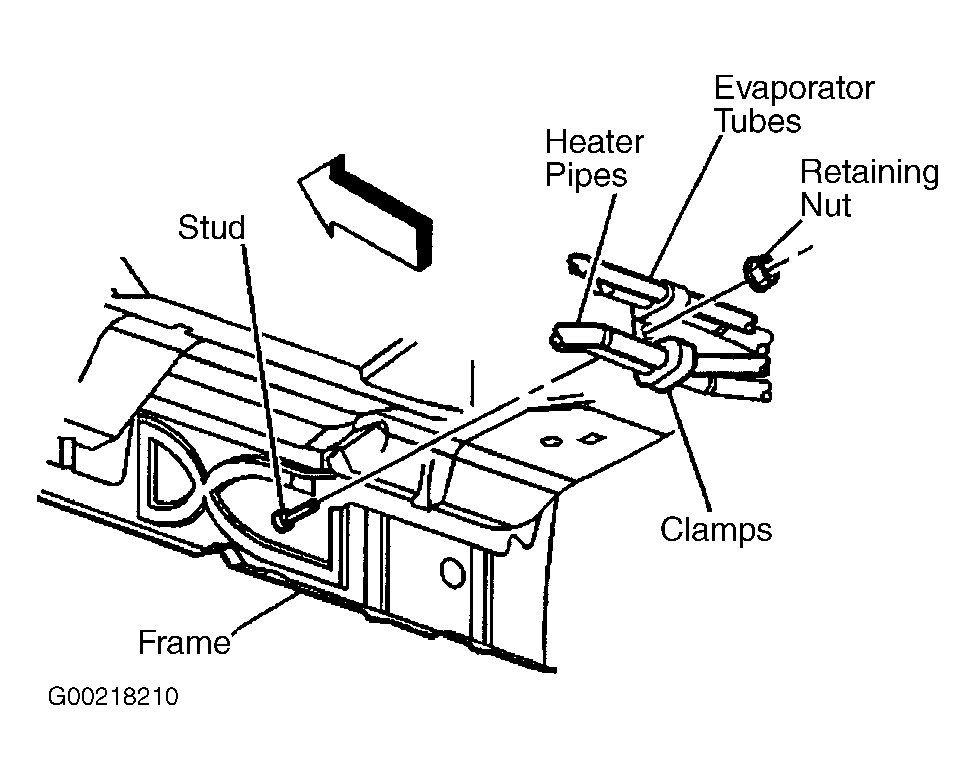

  1. Install the auxiliary heater pipes to the vehicle. Install the auxiliary heater pipes to the clamps. Install the heater/A/C tubes retaining nut to the stud at the frame. See Figure. Tighten to specification. See TORQUE SPECIFICATIONS .
  2. Install the auxiliary heater pipes to the auxiliary heater core. See Figure. Install the right front wheelhouse panel. Install the right rear wheelhouse panel. Install both of the right tires.

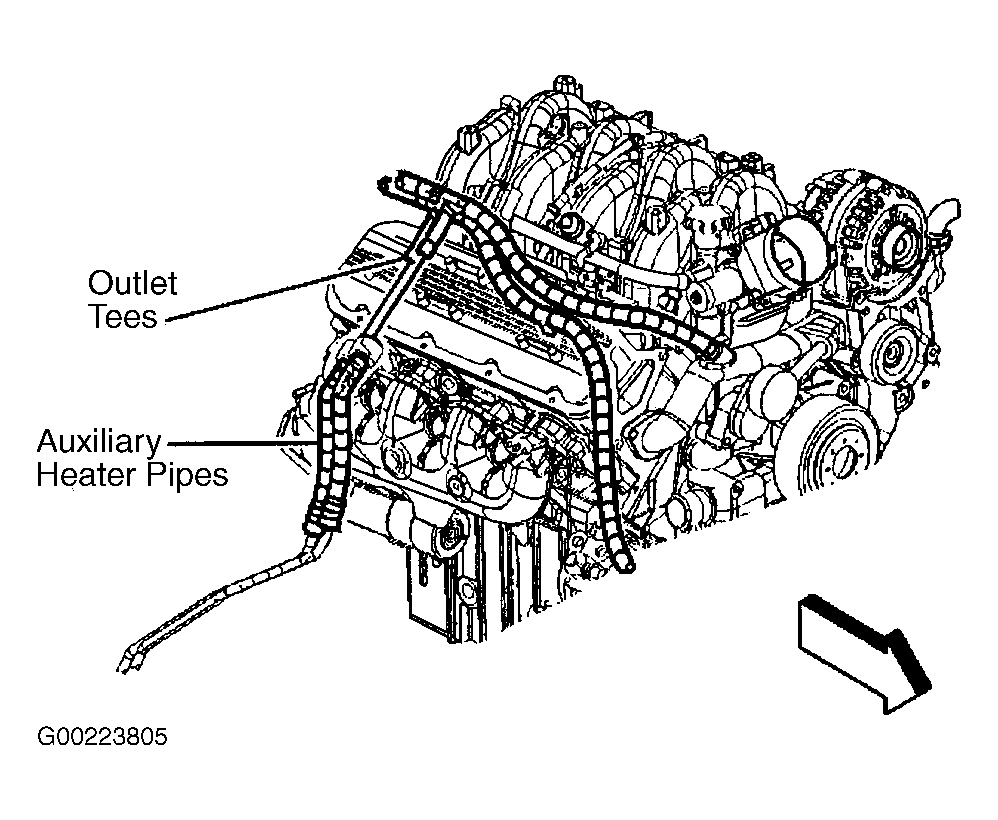

  3. Install the auxiliary heater pipes to the heater inlet and outlet tees. See Figure. Connect the outlet heater hose to the heater core. See Figure. Connect the inlet heater hose to the heater core. Fill the cooling system.
