Removal (Front Auxiliary HVAC Overhead Control) (Avalanche, Escalade, Suburban, Tahoe & Yukon)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

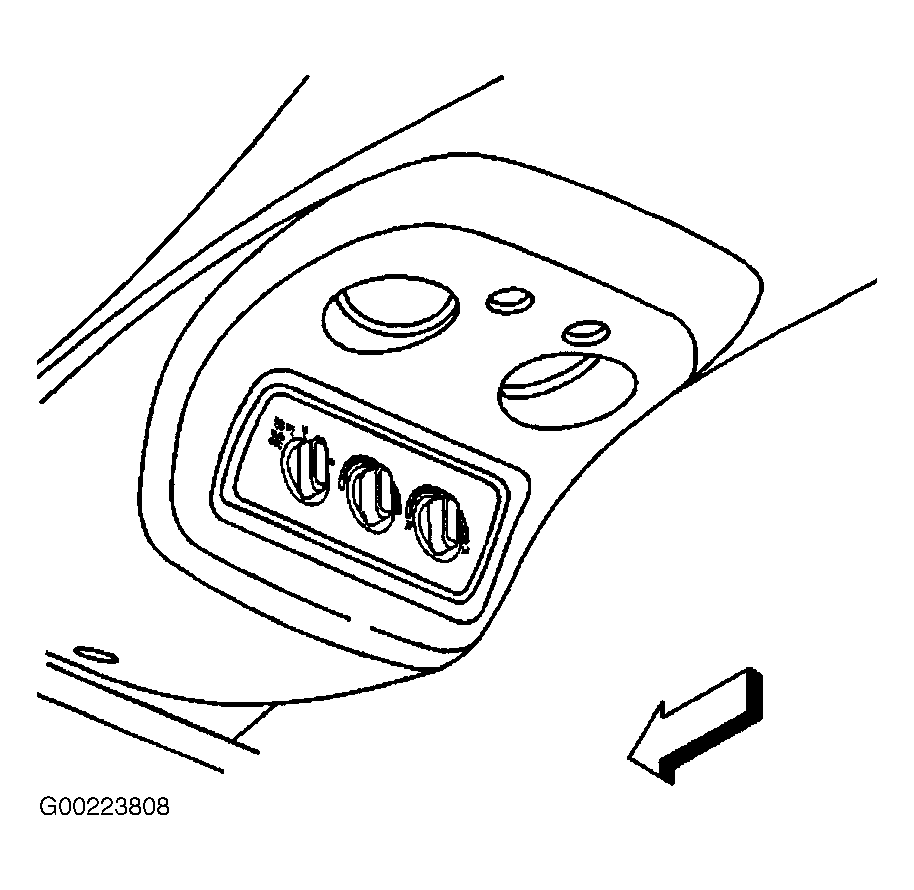

Remove the overhead console screw. Remove the overhead console from the headliner. See Fig 1. Disconnect the electrical connectors from the auxiliary HVAC control assembly assembly. Remove the overhead console from the vehicle. Remove the auxiliary HVAC control assembly from the overhead console.
