Removal (All Models)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster trim plate bezel. Remove the instrument panel storage tray. Remove the accessory switch assembly from the instrument panel. Remove the screws from the HVAC control assembly.
  2. Remove the HVAC control assembly, release the retaining tabs. Pull the control head out of the instrument panel carrier. Disconnect the electrical connectors from the HVAC control assembly. See Fig 1.

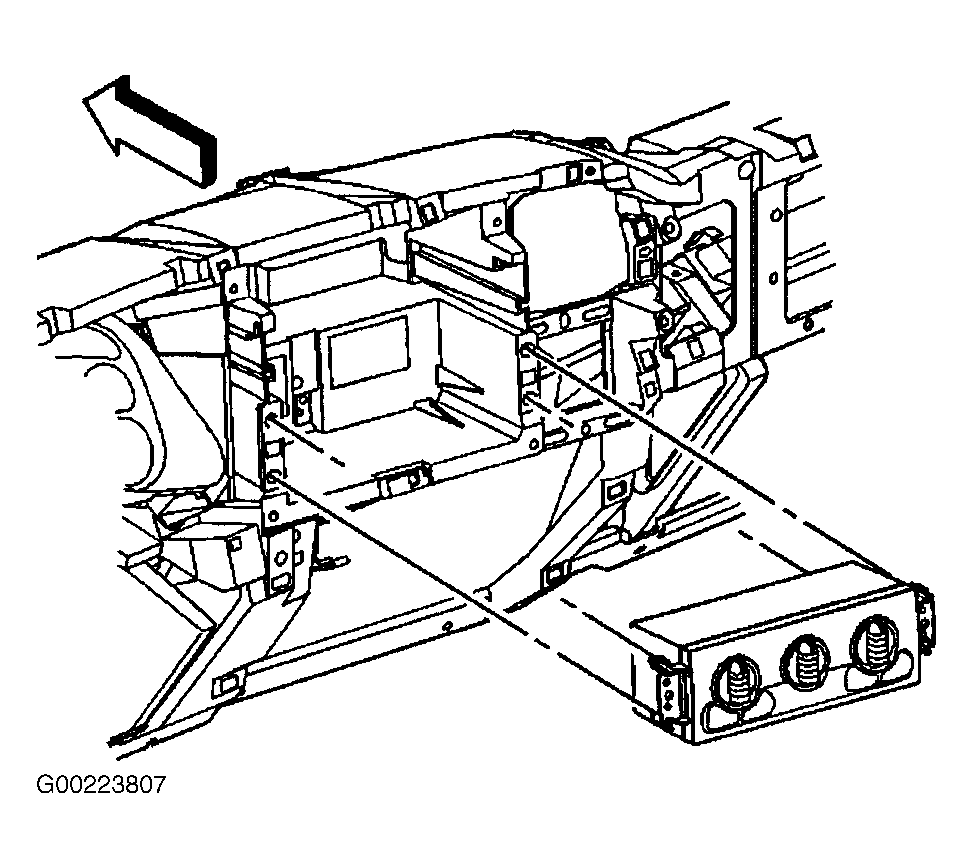

Fig 1: Removing & Installing HVAC Control Assembly
G00223807Courtesy of GENERAL MOTORS CORP.
