Defroster Door: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

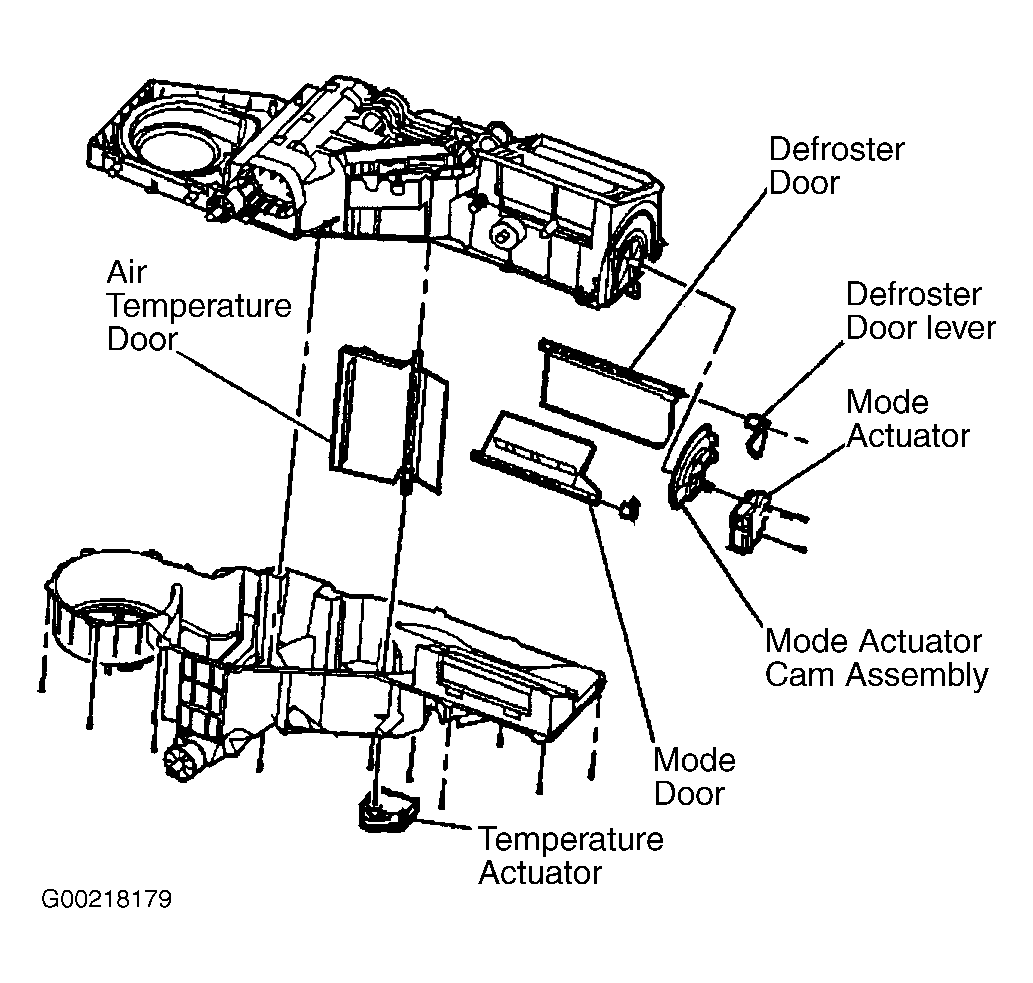

Install the defroster door. Install the defroster door lever. Install the mode actuator cam assembly. Install the mode actuator. Install the mode actuator screws. Install the mode actuator screws. See Figure. Tighten to specification. Install the HVAC module halves. Install the screws to the HVAC module. Tighten to specification. See TORQUE SPECIFICATIONS . Install the HVAC module. Refer to HVAC MODULE .
