Installation (All Models)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If replacing the condenser, add the refrigerant oil to the condenser. See SPECIFICATIONS .

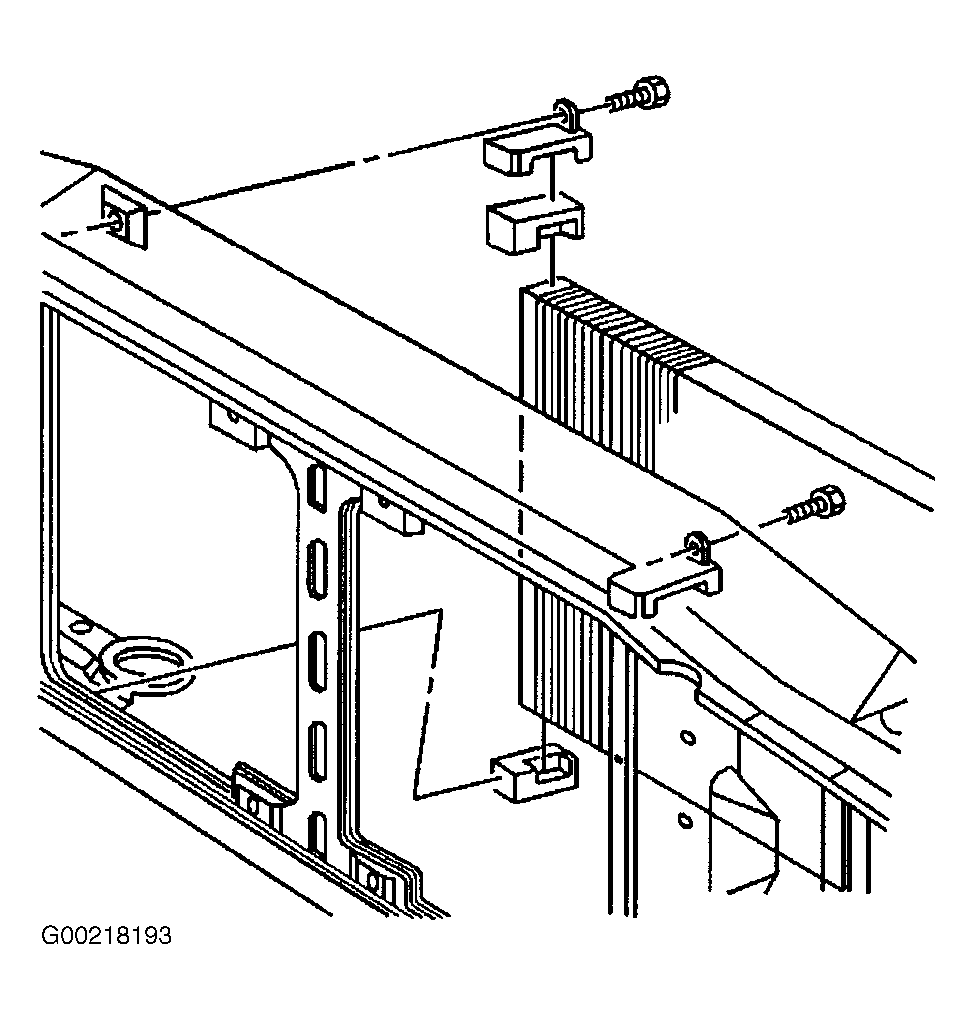

  1. Install the condenser to the vehicle. Install the upper insulator retainers and the insulator retainer bolts. See Figure. Tighten to specification. See TORQUE SPECIFICATIONS .
  2. Install the upper insulator retainers and the insulator retainer bolts. See Figure. Tighten to specification. Install the upper insulator retainers and the insulator retainer bolts. See Figure. Tighten to specification.

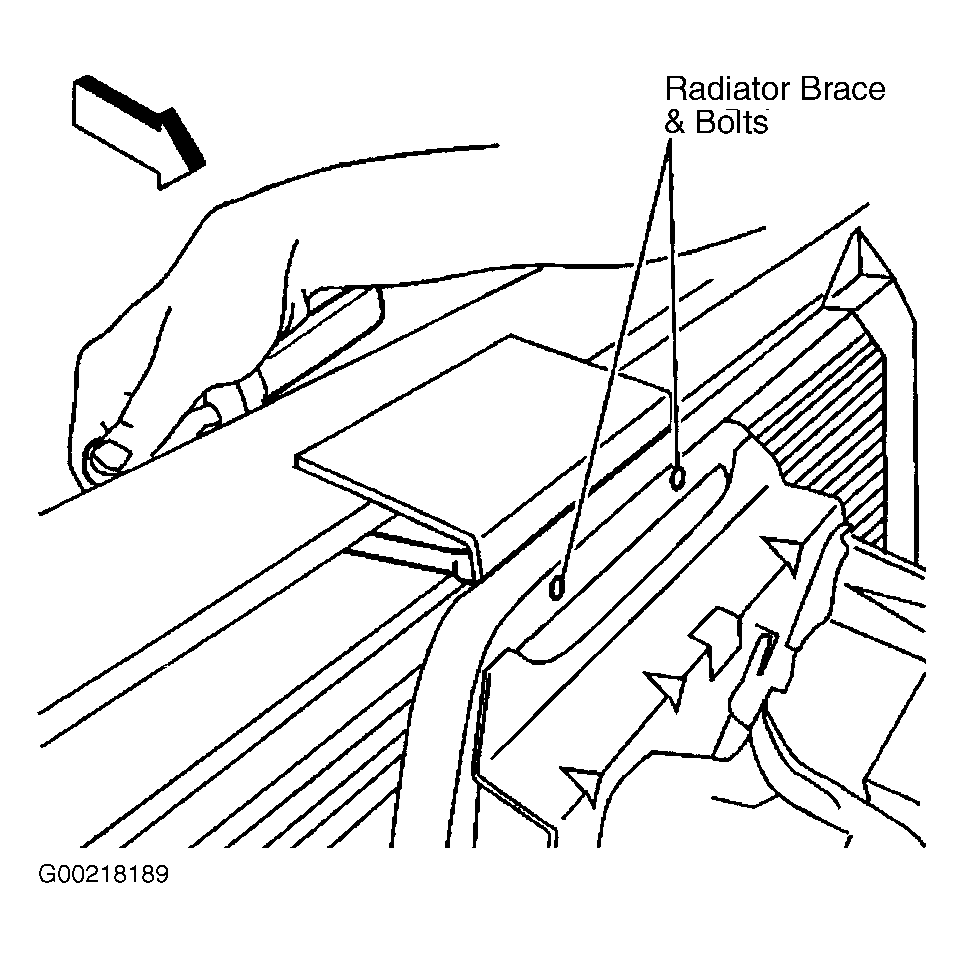

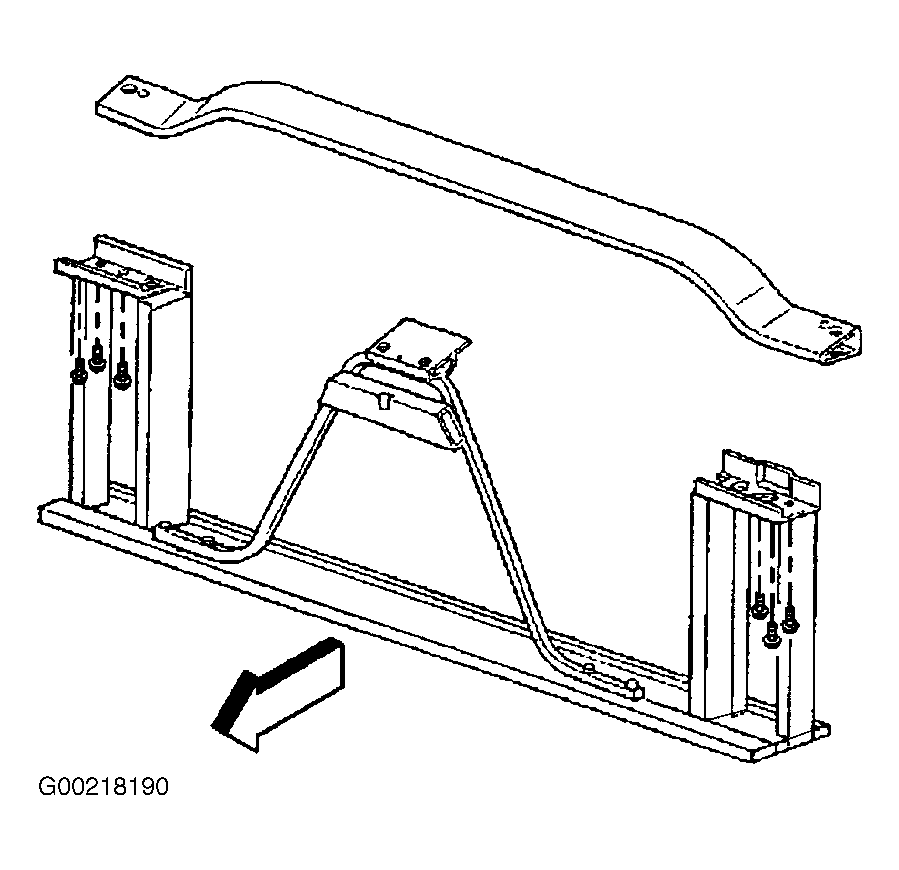

  3. Install the lower bolts to the hood latch support bracket. See Figure. Tighten to specification. Install the tie bar to radiator brace bolts. See Figure. Access the bolts from the rear of the upper radiator support. Tighten to specification.
  4. Install the grille. Evacuate and recharge the system. See RECOVERY/EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Leak test the fittings of the component using a Leak Detector.
