Removal (All Models)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant from the A/C system. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Raise and support the vehicle. Remove the air baffle bolts. Remove the air baffle. See Fig 1.
    2. NOTE: Cap or tape the open A/C lines immediately, to prevent system contamination.
  2. Remove the suction hose nut. Disconnect the suction hose from the compressor. See Fig 2. Cap off the suction port of the compressor.
  3. Remove the discharge hose nut. Disconnect the discharge hose from the compressor. Cap off the discharge port of the compressor. Remove and discard the sealing washers.

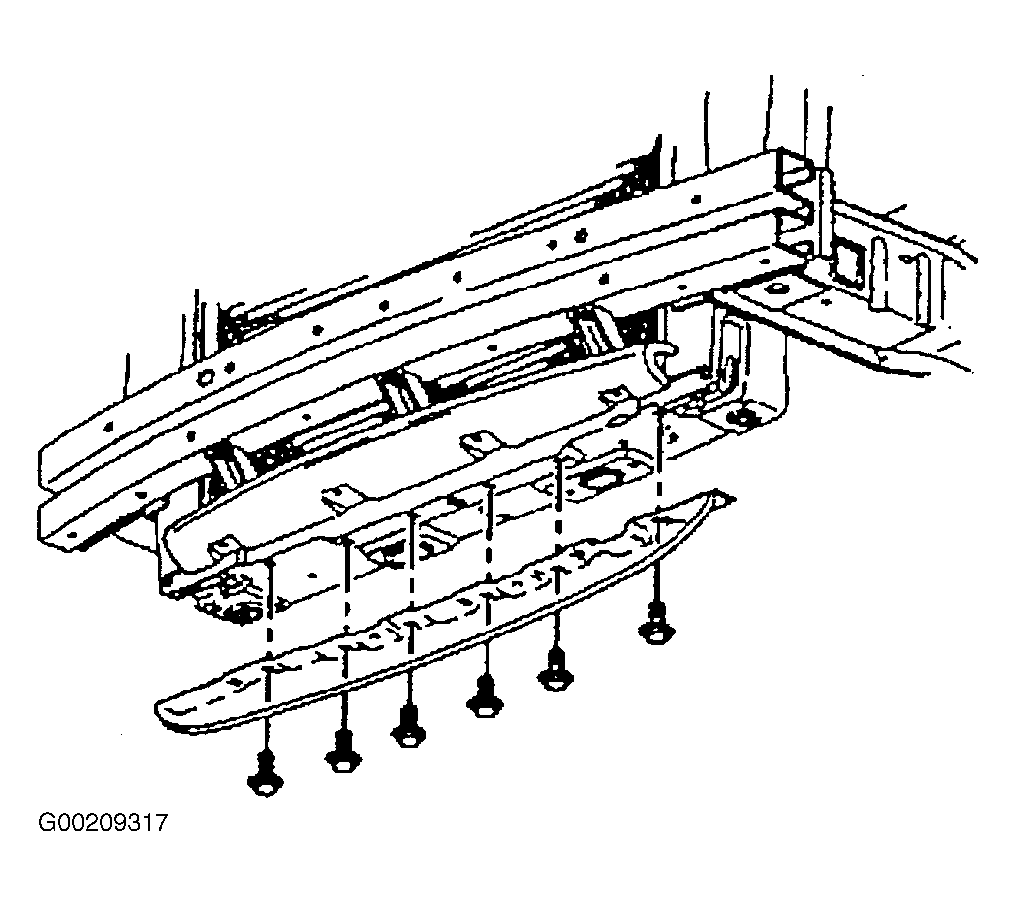

Fig 1: Removing & Installing Air Baffle Bolts
G00209317Courtesy of GENERAL MOTORS CORP.

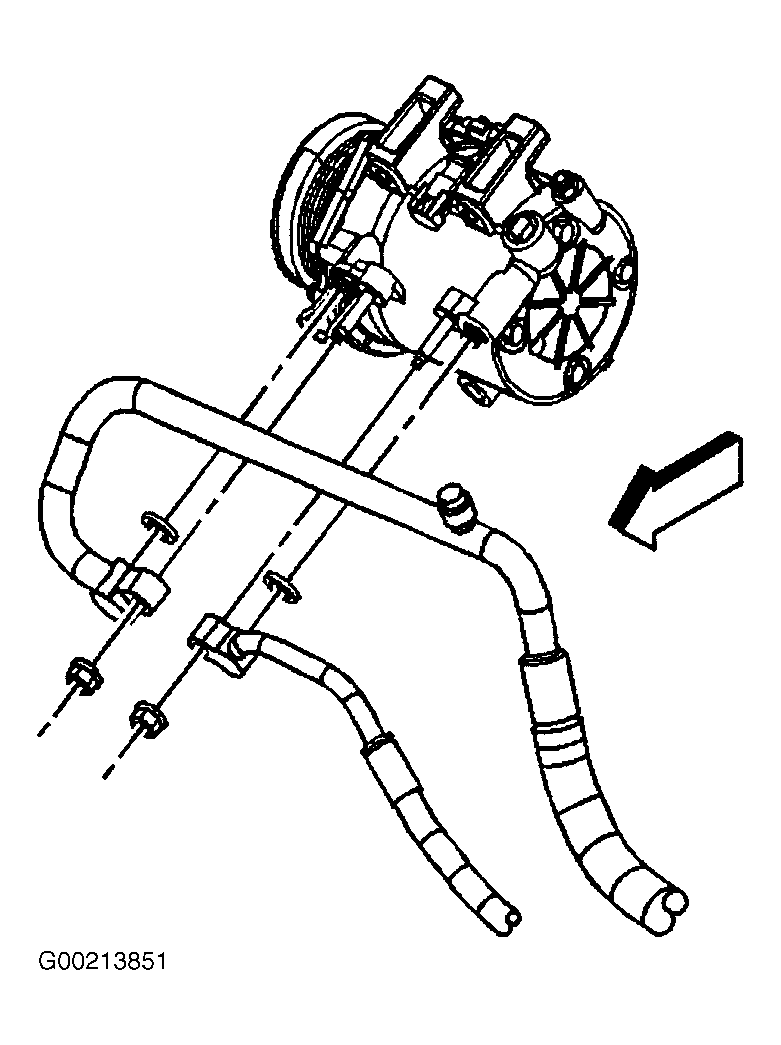

Fig 2: Removing & Installing Suction Hose At Compressor
G00213851Courtesy of GENERAL MOTORS CORP.
