Removal & Installation (All Models)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cover from the underhood convenience center. Remove the compressor relay. See Fig 1.

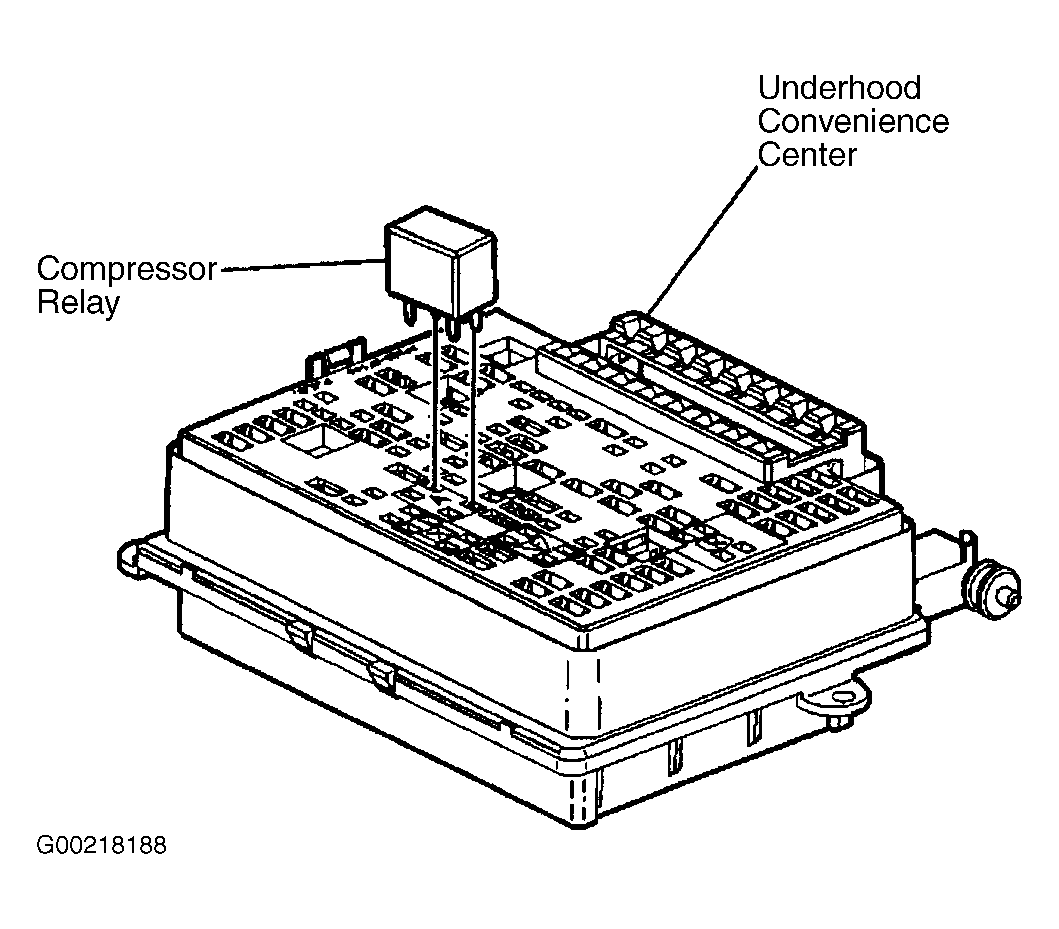

Fig 1: Removing & Installing Compressor Relay

Courtesy of GENERAL MOTORS CORP.
