Installation (Front)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

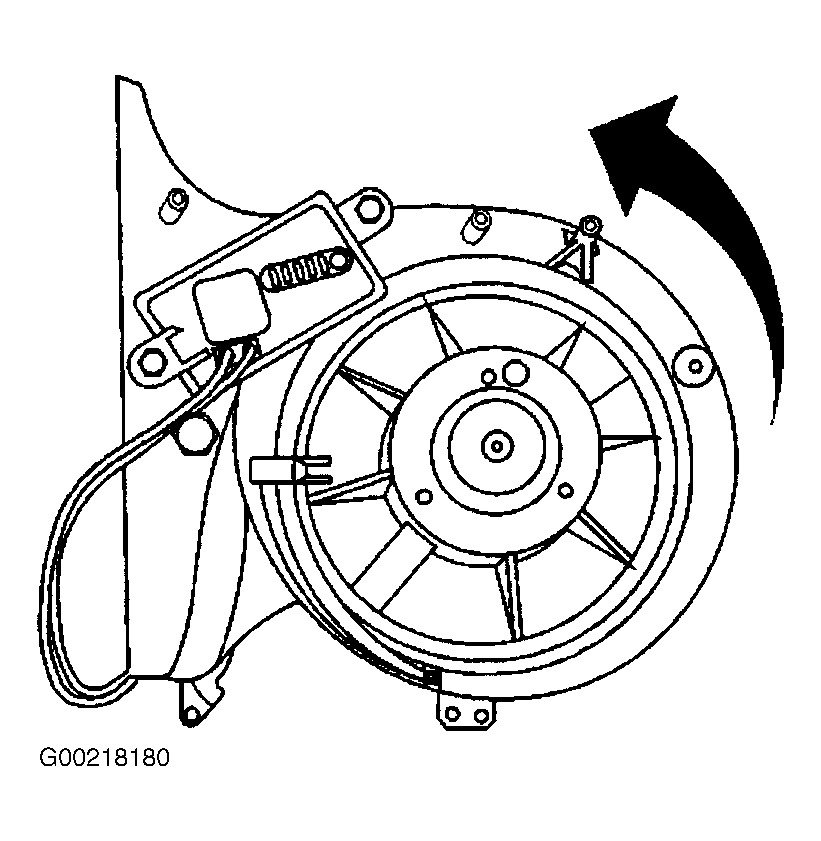

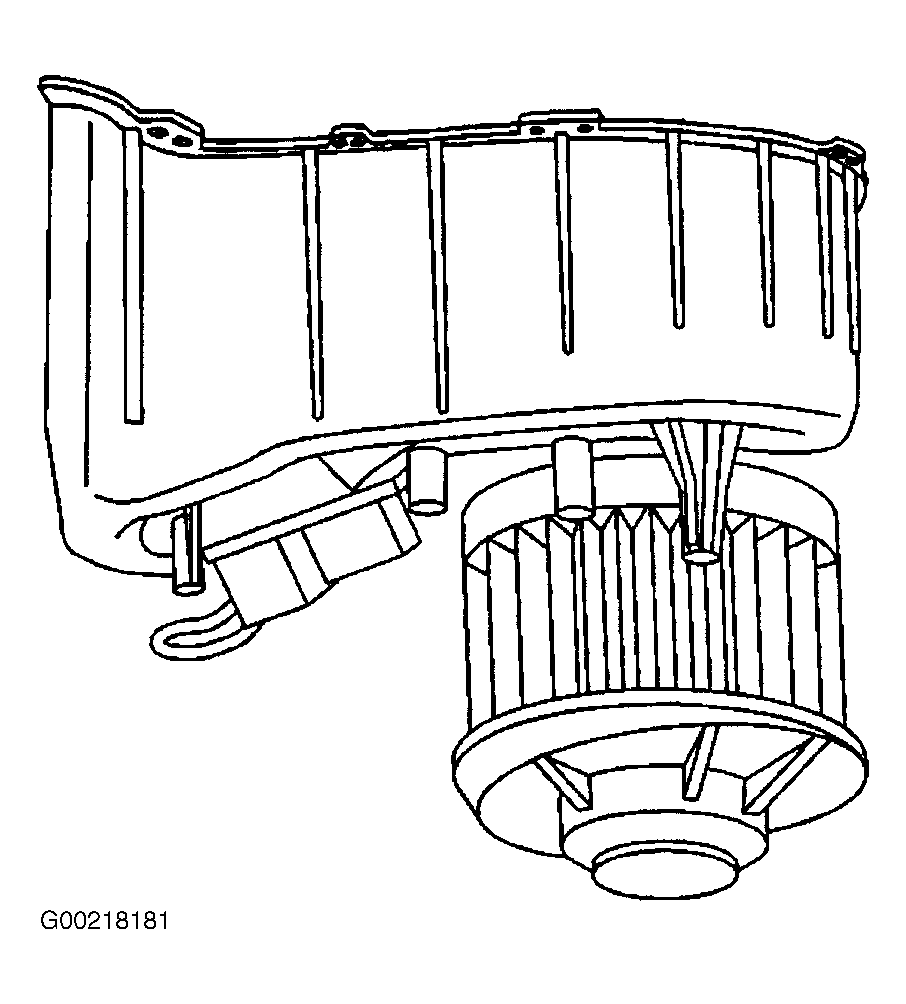

  1. Install the blower motor. See Figure. Install the blower motor to the heater/vent module. Turn the blower assembly clockwise until the retaining tab locks into place. See Figure.
  2. Connect the electrical connector to the blower motor. Install the blower motor insulating cover screws. Tighten to specification. See TORQUE SPECIFICATIONS . If equipped, install the sound insulator panel.
