Installation (Front)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

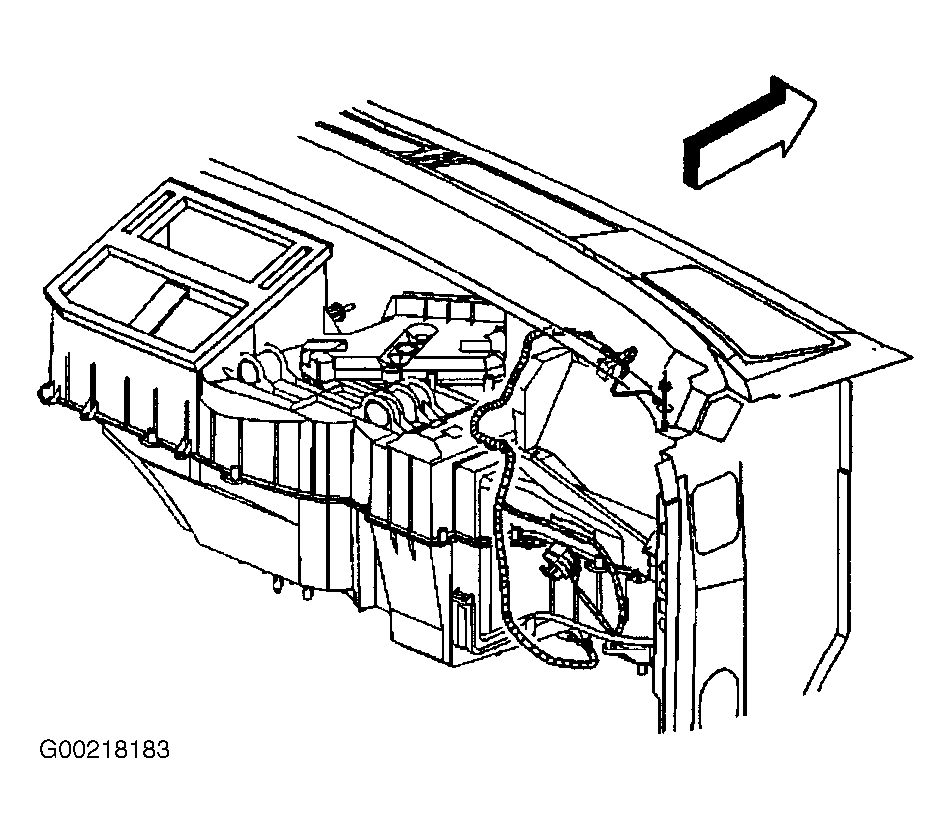

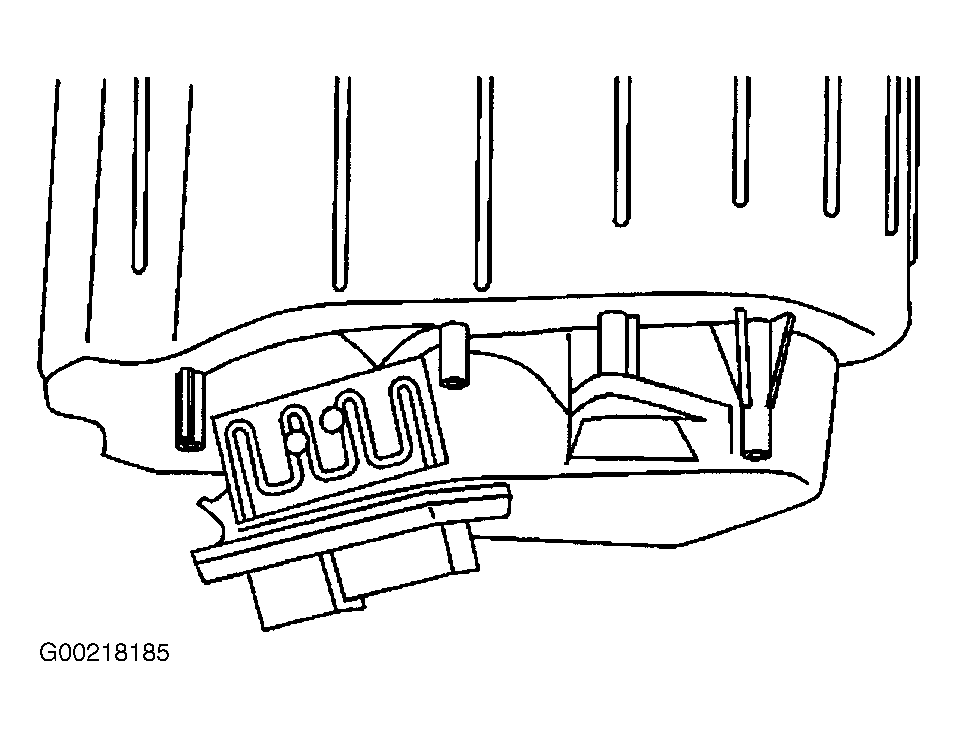

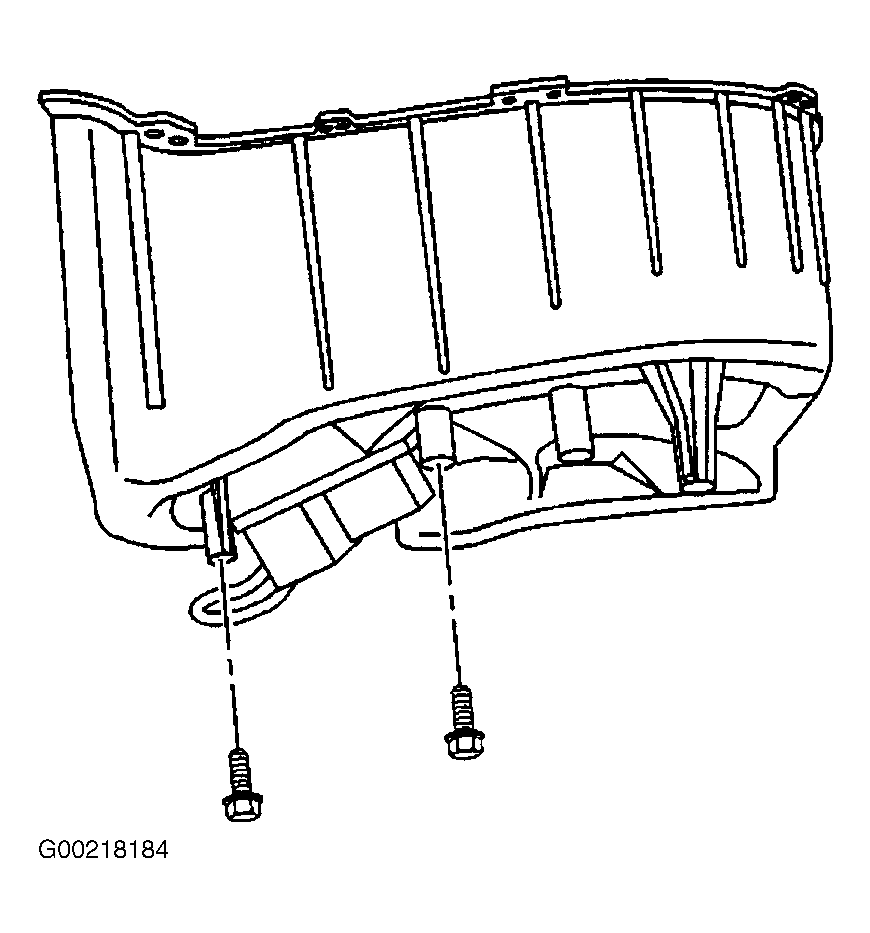

Install the blower motor resistor. See Figure. Install the blower motor resistor retaining screws. See Figure. Tighten to specification. See TORQUE SPECIFICATIONS . Connect the electrical connection to the blower motor resistor. Connect the electrical connection to the blower motor. See Figure. If equipped, install the I/P sound insulator.
