Installation (Auxiliary - Avalanche, Escalade, Suburban, Tahoe, Yukon)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

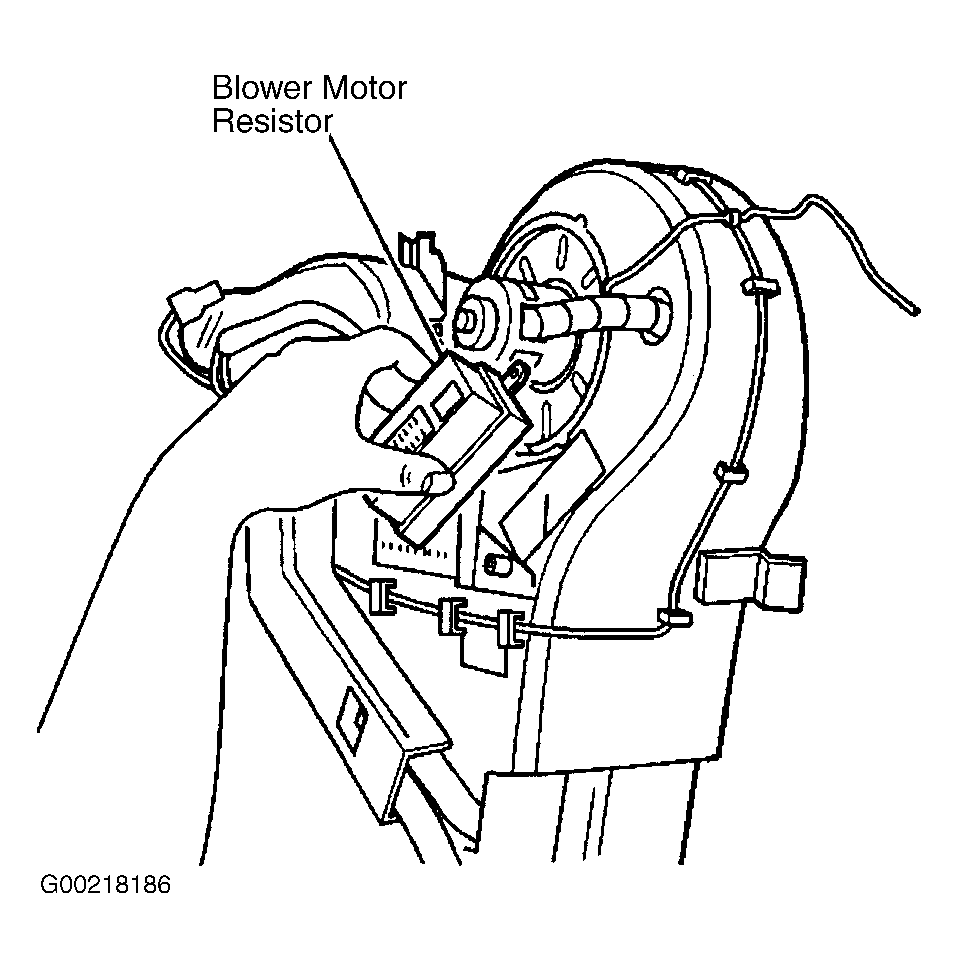

Install the blower motor resistor to the vehicle. See Figure. Install the retaining screws to the blower motor resistor. Tighten to specification. See TORQUE SPECIFICATIONS . Connect the electrical connector to the blower motor resistor. Install the right rear quarter trim panel.
