A/C Low Pressure Switch: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

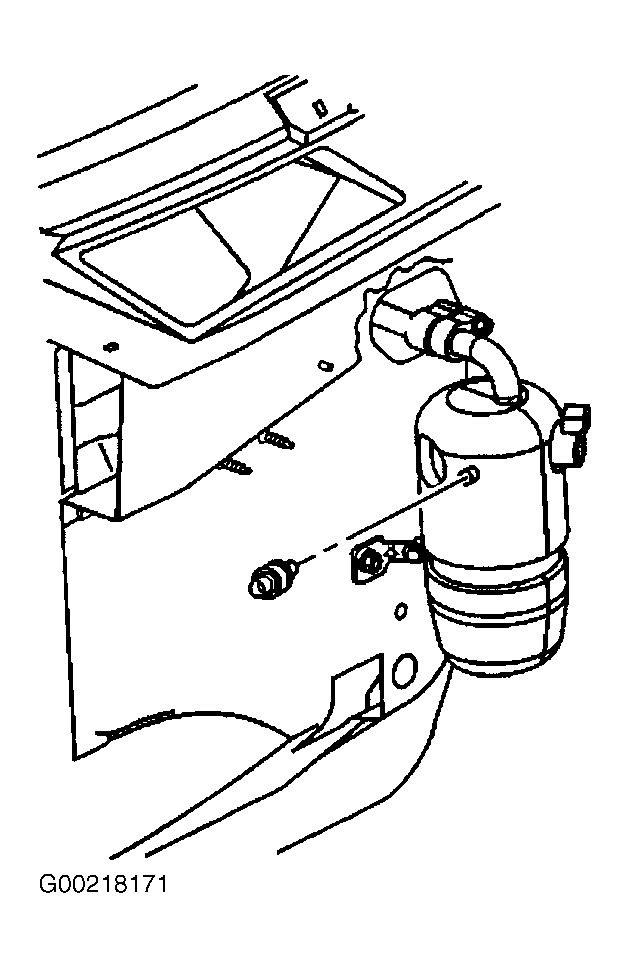

Install the new O-ring seal to the switch. See O-RING . Install the A/C low pressure switch to the accumulator. Tighten to specification. See TORQUE SPECIFICATIONS . Connect the electrical connector to the A/C low pressure switch. See Figure. Leak test the fittings of the components using a Leak Detector.
