A/C High Pressure Switch: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant the system. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Clean the control A/C high pressure switch area before removing the snap ring. Disconnect the electrical connector from the A/C high pressure switch.
Remove the A/C high pressure switch snap ring using a pair of 90 degree angle pliers or Snap Ring Pliers. Remove the A/C high pressure switch from the compressor. See Fig 1. Remove the old O-ring seal from the A/C high pressure switch cavity using the O-Ring Remover.
Inspect the A/C high pressure switch cavity and the O-ring groove in the rear head for dirt or foreign material. Clean the components as necessary.

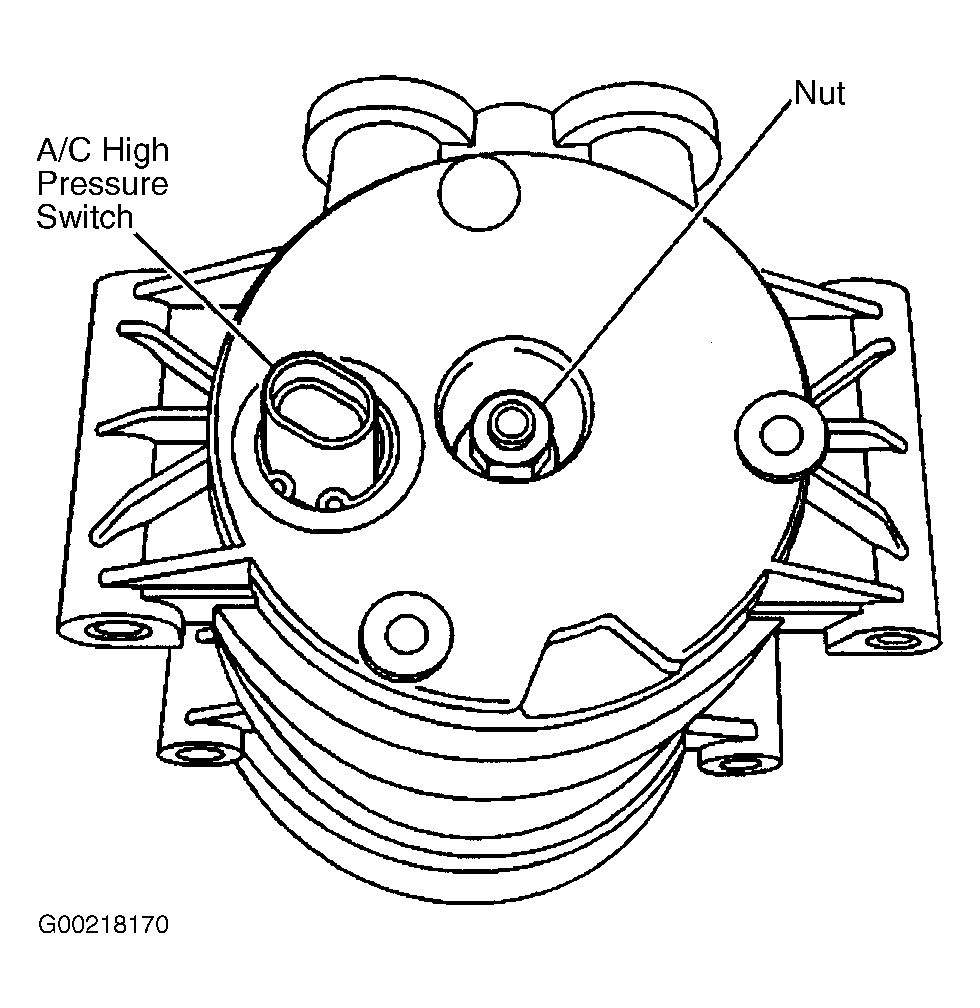

Fig 1: Removing & Installing A/C High Pressure Switch
Courtesy of GENERAL MOTORS CORP.
