6.6L (Diesel)

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

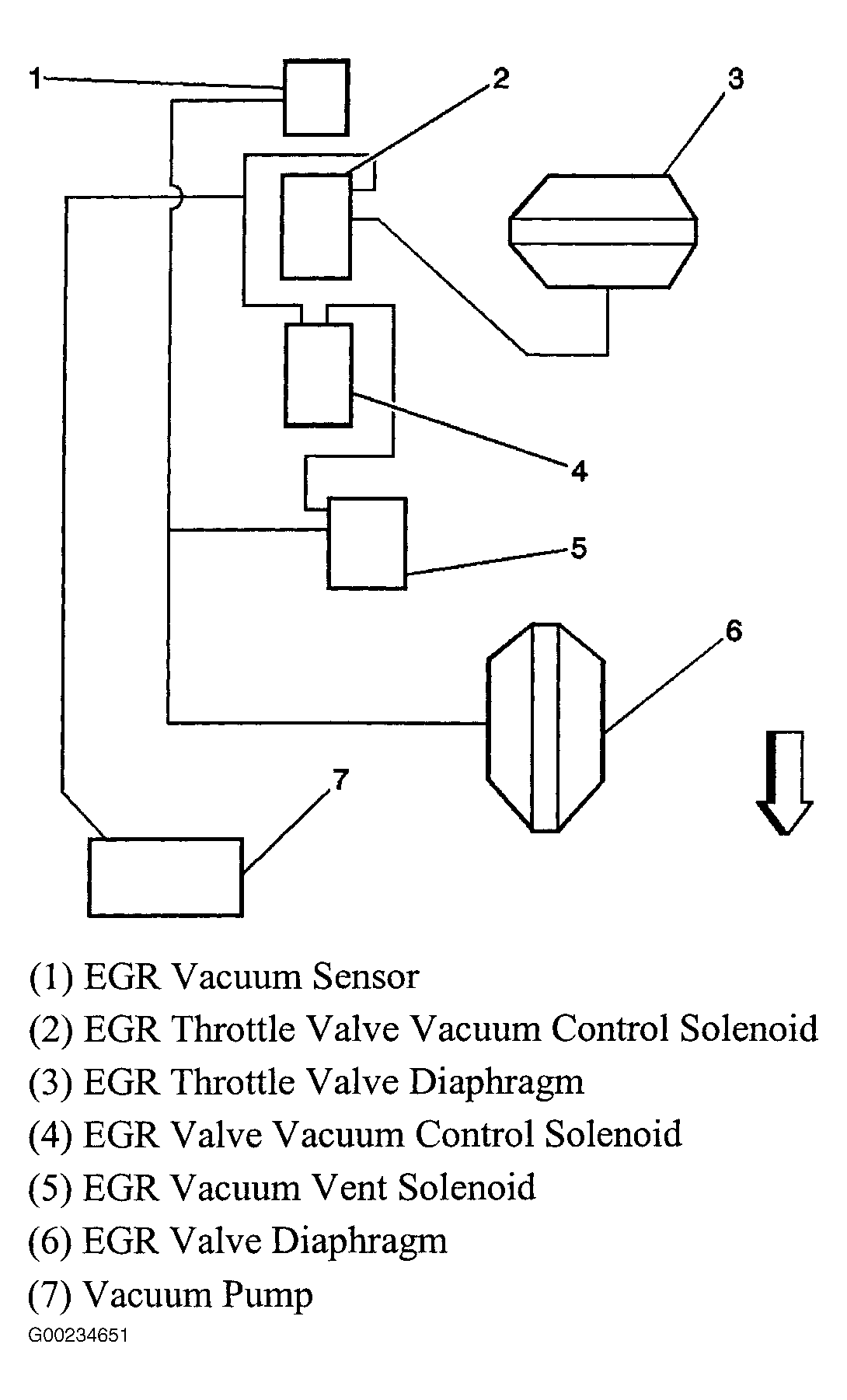

Fig 1: Vacuum Hose Routing (6.6L Diesel)
G00234651Courtesy of GENERAL MOTORS CORP.
