Manifold Absolute Pressure Sensor: Installation
WARNING: This page is about a different car, the 2003 Pontiac Bonneville, 2003 Buick Park Avenue, and 2003 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

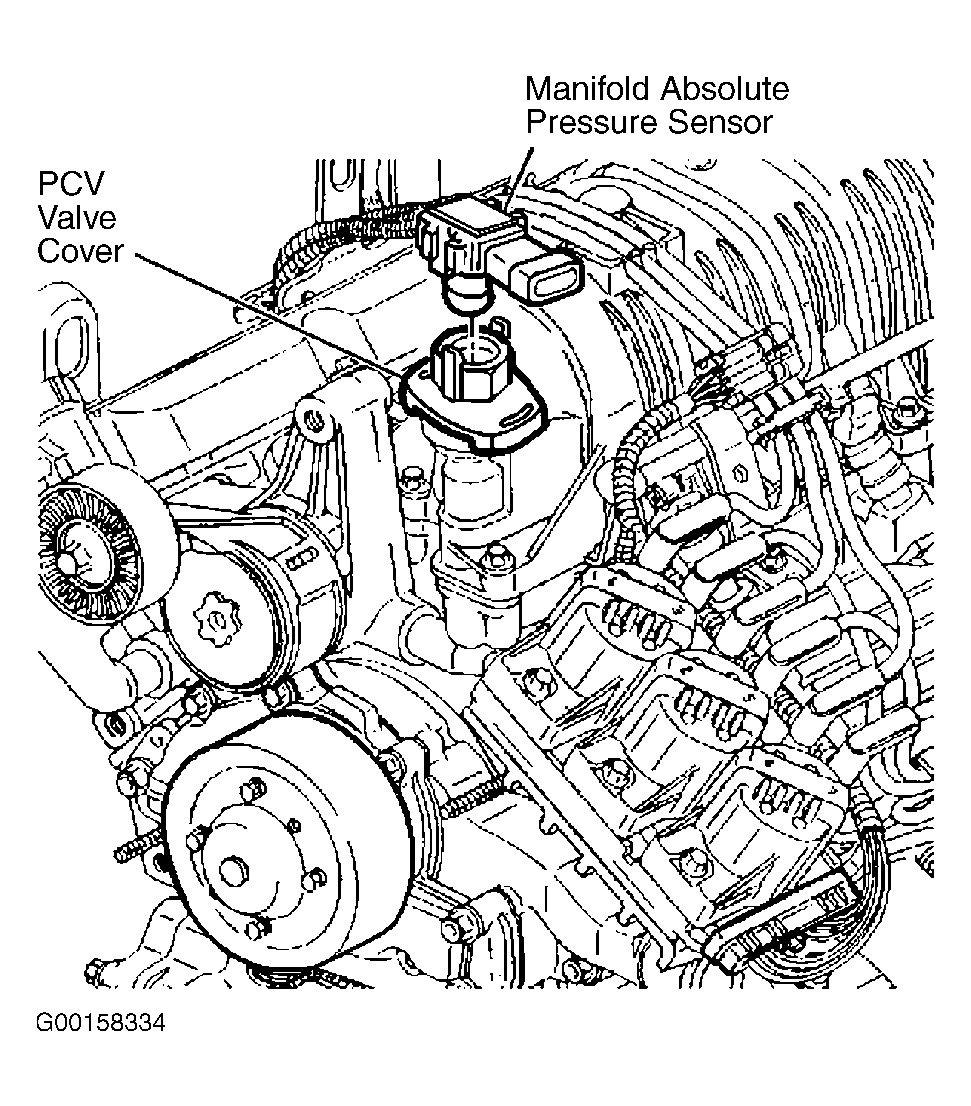

Ensure that the seal is installed on the MAP sensor and that the seal is not damaged. Position and install the MAP sensor to the PCV valve cover. Ensure that the locking tabs engage to hold the MAP sensor to the PCV valve cover. Connect the MAP sensor electrical connector. Install the fuel injector sight shield.

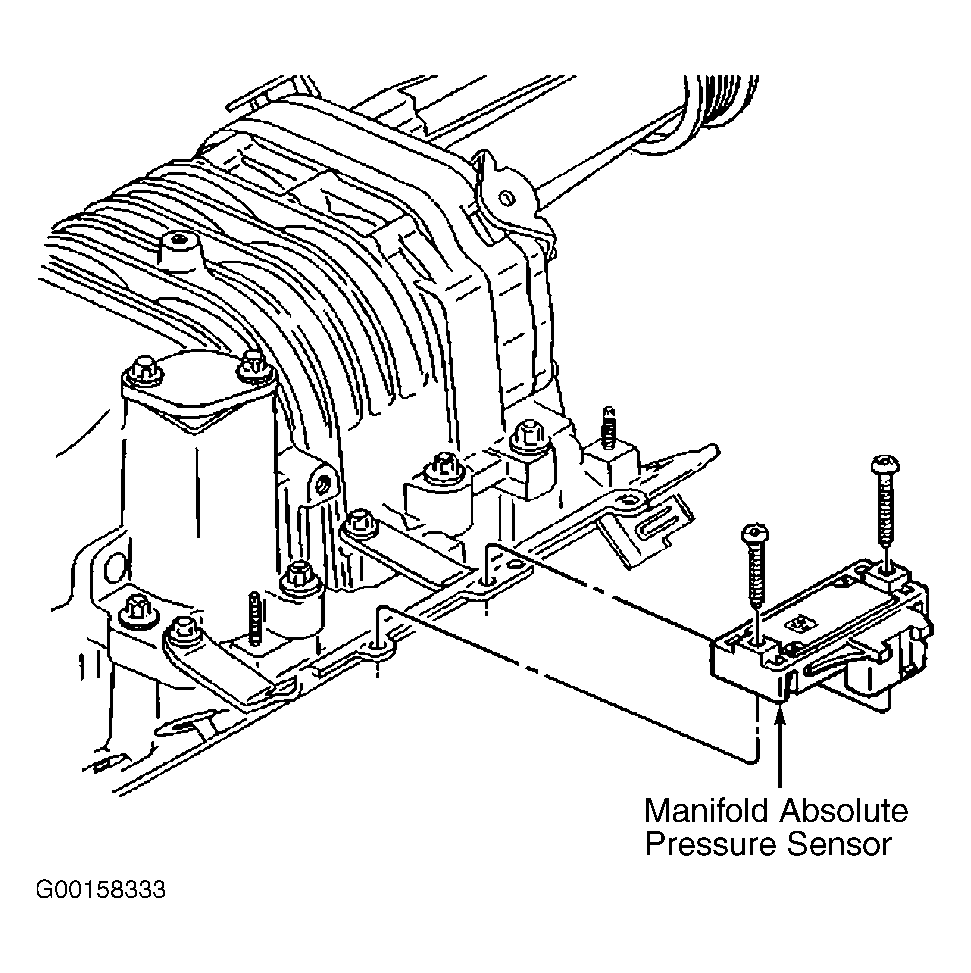

Install the MAP sensor. Install the MAP sensor screws. Tighten the screws to specification. See TORQUE SPECIFICATIONS . Connect the MAP sensor electrical connector and the vacuum hose. Install the fuel injector sight shield.
