Camshaft Position Sensor: Removal
WARNING: This page is about a different car, the 2003 Pontiac Bonneville, 2003 Buick Park Avenue, and 2003 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

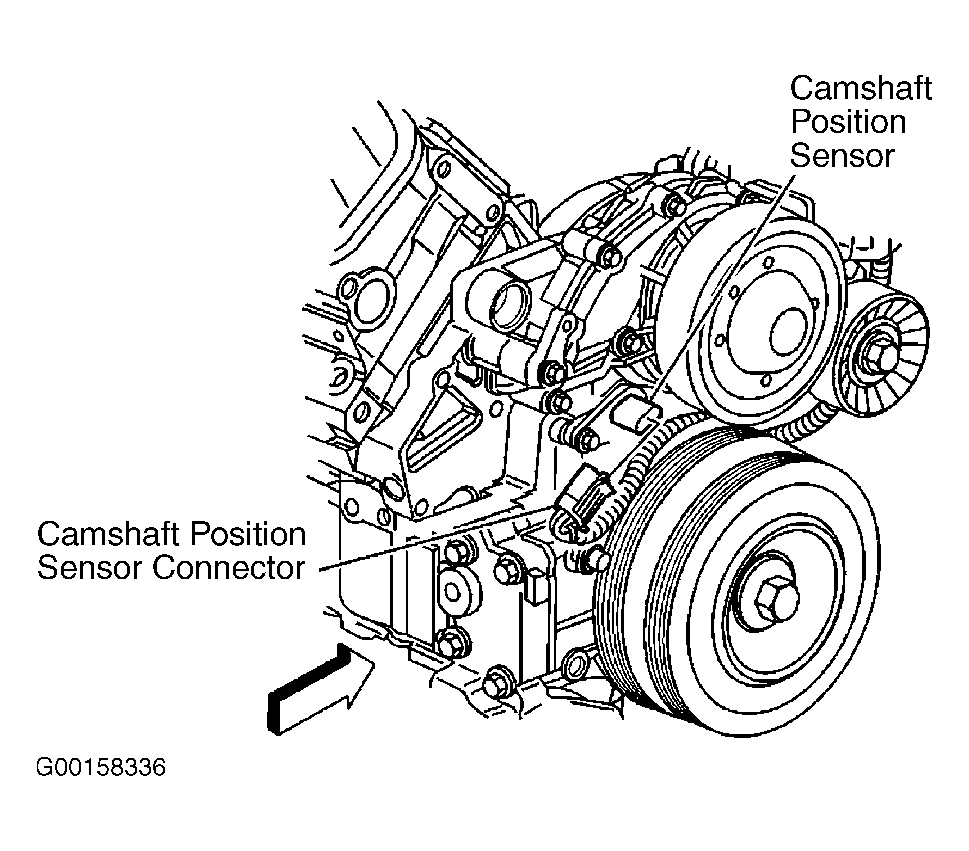

Remove the coolant recovery reservoir. Rotate the drive belt tensioner counterclockwise and remove the drive belt. Disconnect the electrical connector from the Camshaft Position (CMP) sensor. See Figure. Remove the CMP sensor bolt. Remove the CMP sensor from the engine front cover.
