Removal (8.1L)

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air cleaner resonator outlet duct. See AIR CLEANER RESONATOR OUTLET DUCT  under AIR INDUCTION SYSTEMS.

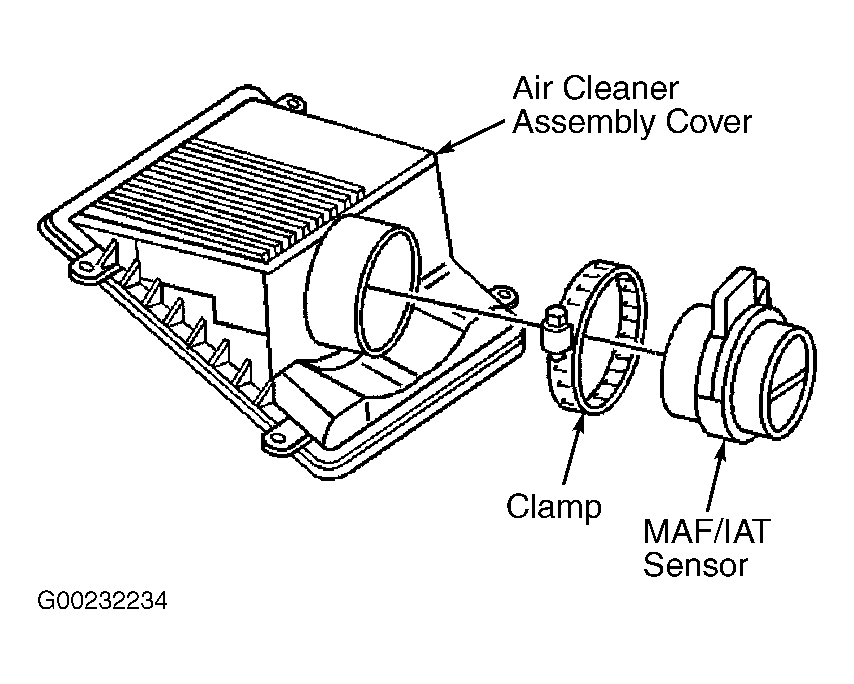

  2. Disconnect the MAF/IAT sensor electrical connector. Loosen the MAF/IAT clamp. See Figure. Remove the MAF/IAT sensor from the air cleaner assembly.
