Removal & Installation (4.3L)
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition off. Disconnect sensor harness connector. MAP sensor is located on top center of engine.

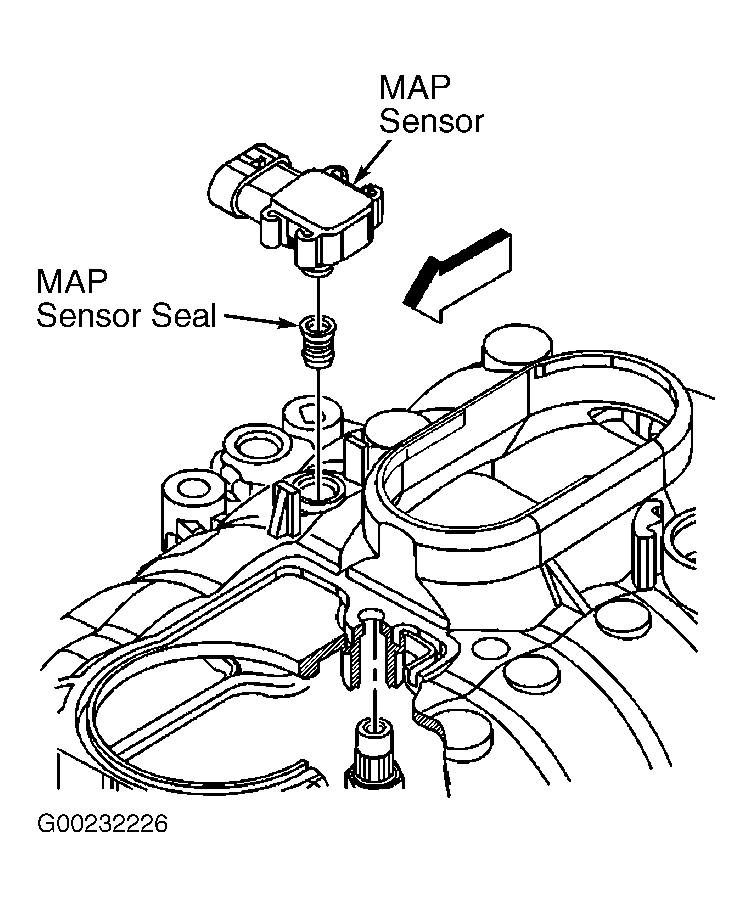

- Remove MAP sensor from intake manifold by pulling straight up with a slight rocking motion. See Fig 1. Remove and discard MAP sensor grommet.
Install a NEW MAP sensor grommet onto the MAP sensor. Carefully install MAP sensor into intake manifold. Reconnect harness connector to MAP sensor.
