Fuel Tank Pressure Sensor: Removal

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

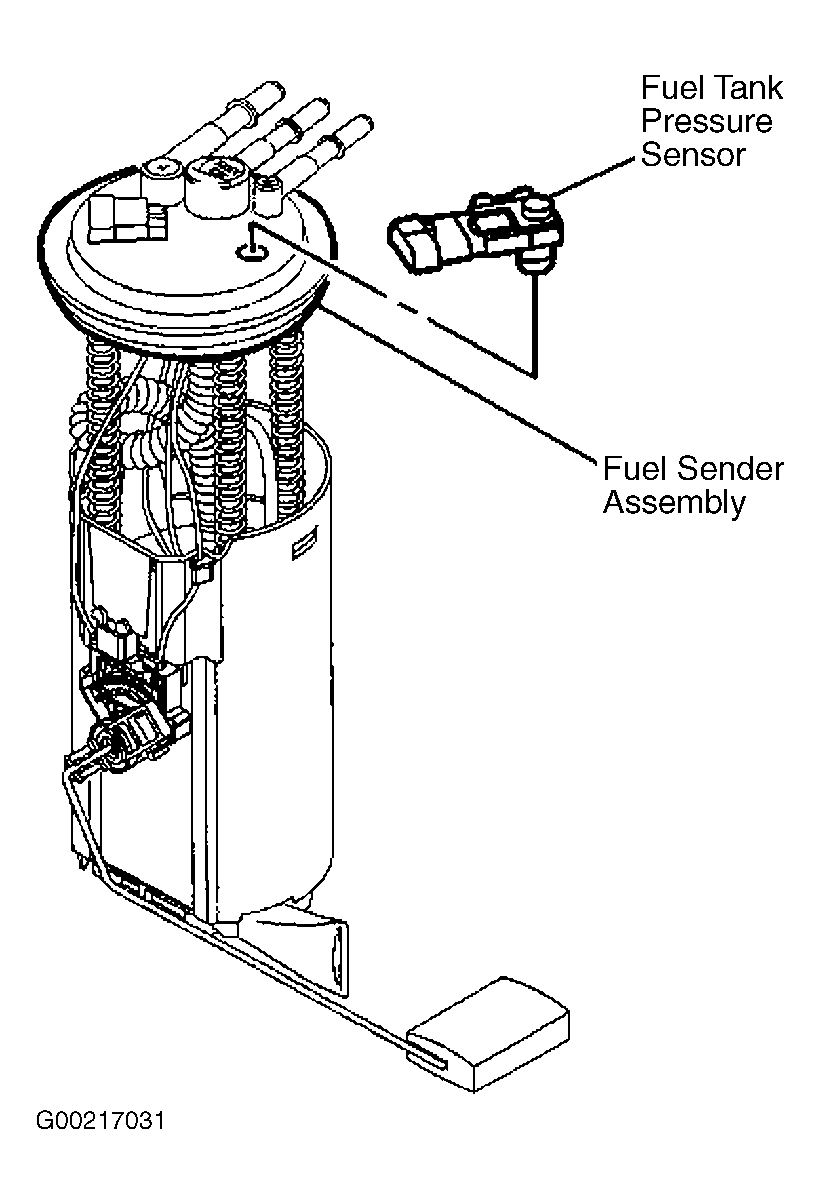

Remove fuel tank. See FUEL TANK under FUEL SYSTEMS. Using a slight rocking motion, while pulling straight up, remove the fuel tank pressure sensor. See Figure.
