Removal (2.2L)

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

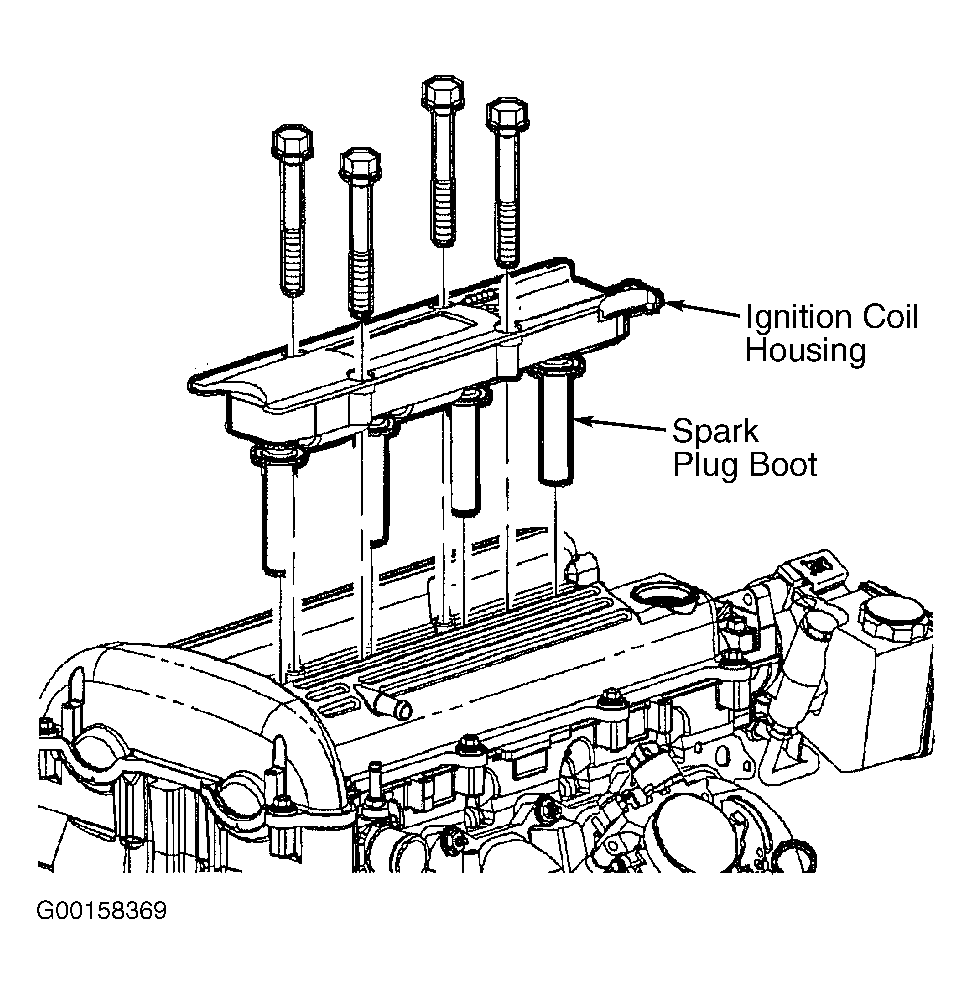

Remove ignition coil housing with spark plug boots from spark plugs. See IGNITION COIL HOUSING  . See Figure . To avoid getting water and debris into the spark plug holes, use compressed air and a shop rag to blow out each spark plug hole before plugs are removed. Using a 5/8" spark plug socket, remove spark plugs.
