Fuel Pressure Dampener (2.2L): Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. The fuel pressure dampener is located on the end of the fuel rail. Disconnect the negative battery cable. Remove the outlet resonator/duct assembly. See AIR CLEANER OUTLET RESONATOR/DUCT ASSEMBLY  under AIR INDUCTION SYSTEMS.
  2. Relieve the fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE  . Disconnect Gauge Bar Set (SA9127E) after pressure has been released (if using the without scan tool method of releasing fuel pressure).

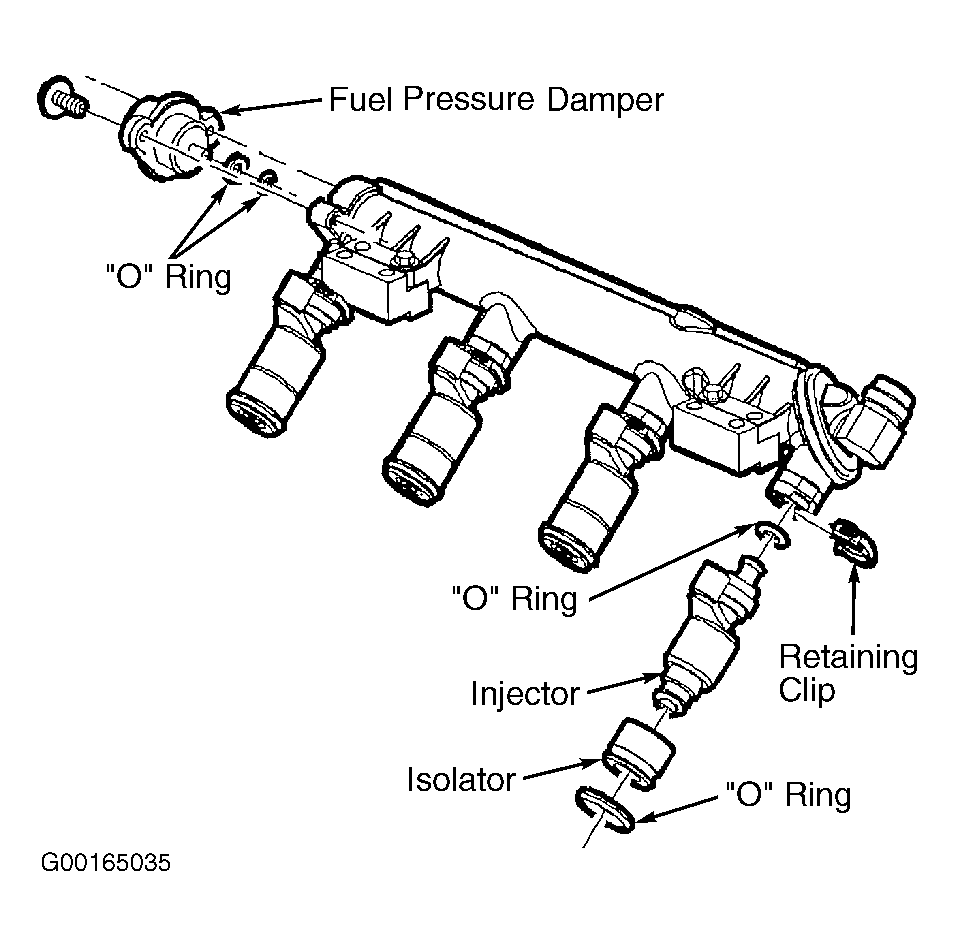

  3. Remove the fuel dampener bolts. See Figure . Remove the fuel pressure dampener and "O" ring seals. Visually inspect the seals for cuts, nicks, or flatness. Replace as necessary.
