Fuel Hose/Pipes (Chassis Feed): Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Relieve the fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE  . Disconnect Gauge Bar Set (SA9127E) after pressure has been released (if using the without scan tool method of releasing fuel pressure).
  2. From underhood, remove the fuel line clip and using the Fuel Line Disconnect Set (J 37088-A), disconnect the fuel feed line from the fuel rail. Disconnect the EVAP purge line from the EVAP purge solenoid. Raise the vehicle to a comfortable working height.

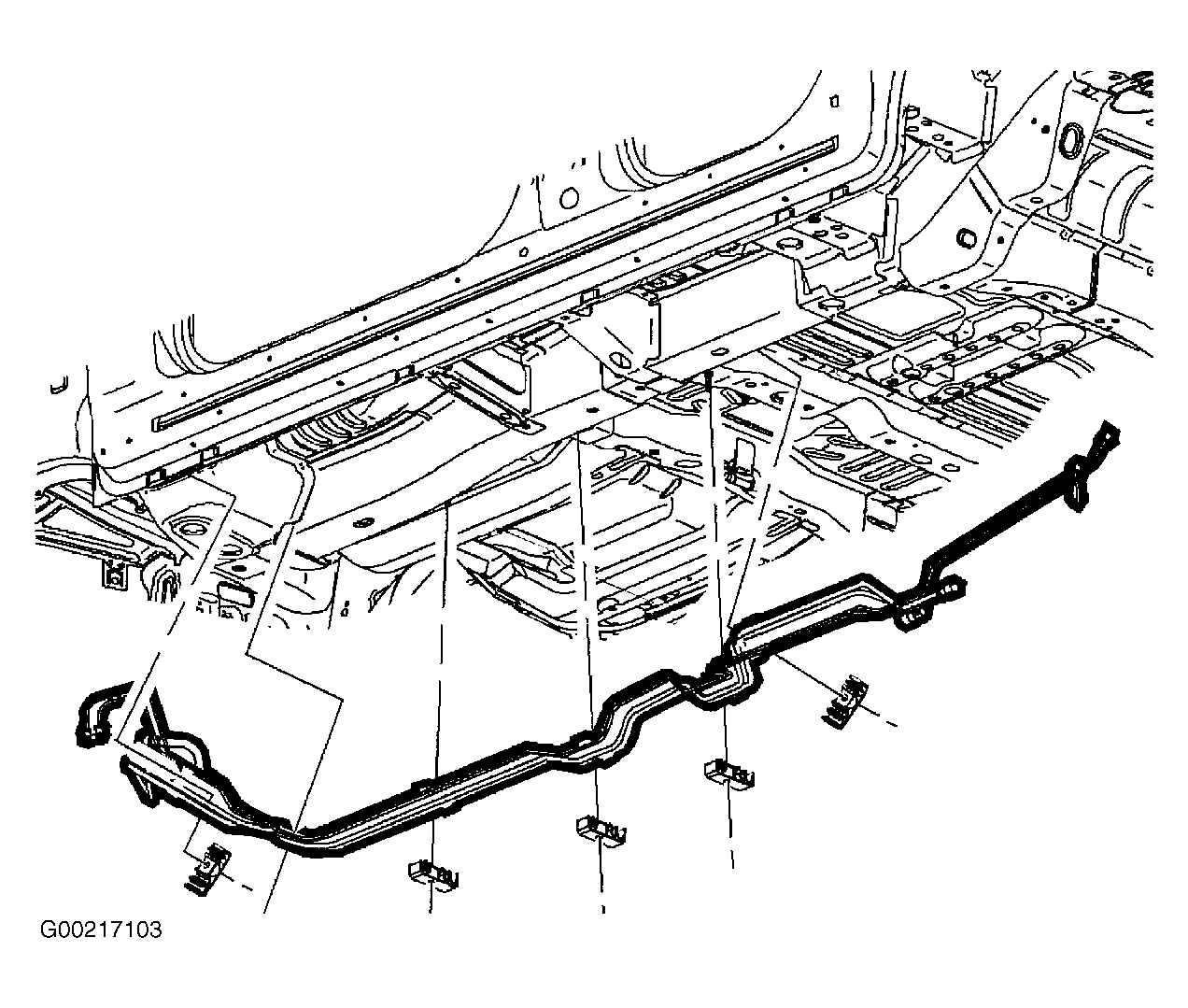

  3. Disconnect the chassis fuel feed line from the fuel filter outlet and remove the plastic retainer from the fuel filter. Disconnect the EVAP purge line from the EVAP canister. Release the fuel and EVAP purge lines from underbody retainers. See Figure .
