SIR Coil With Centering Window & No Spring Service Lock

WARNING: This page is about a different car, the 2002 Pontiac Grand Am, 2002 Oldsmobile Alero, and 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure front wheels are in straight-ahead position. Hold SIR Coil assembly with clear bottom upward to see coil ribbon. While holding SIR Coil assembly housing, rotate hub in direction of arrow (on bottom of assembly) until it stops. SIR Coil assembly should now be wound up snug against center hub.

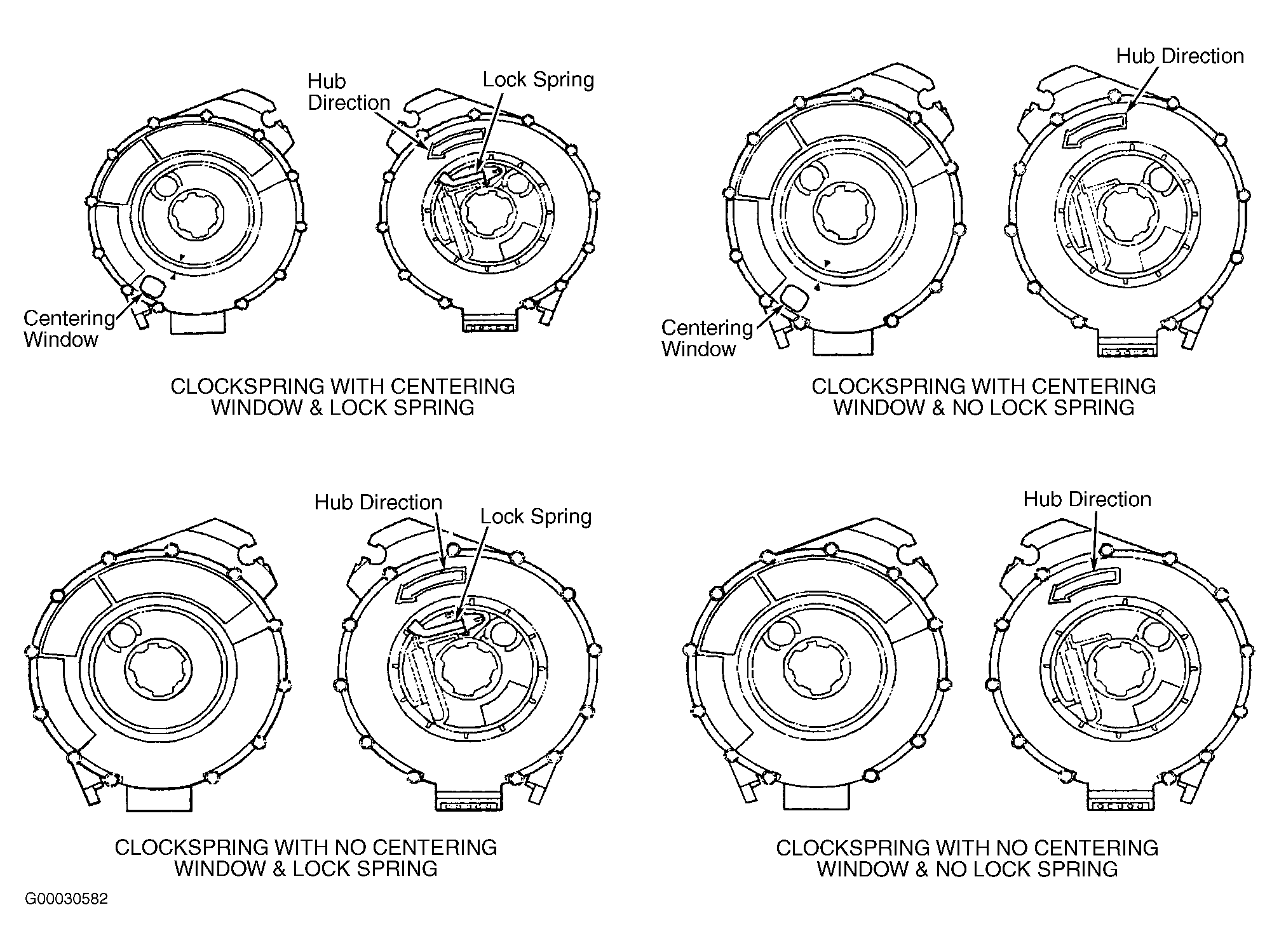

  2. Rotate SIR Coil assembly hub in opposite direction slowly until centering window appears yellow and both arrows line up. See Figure . SIR Coil assembly can now be installed if front wheels are in straight-ahead position.
