Track Bar: Installation

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the track bar to the vehicle.

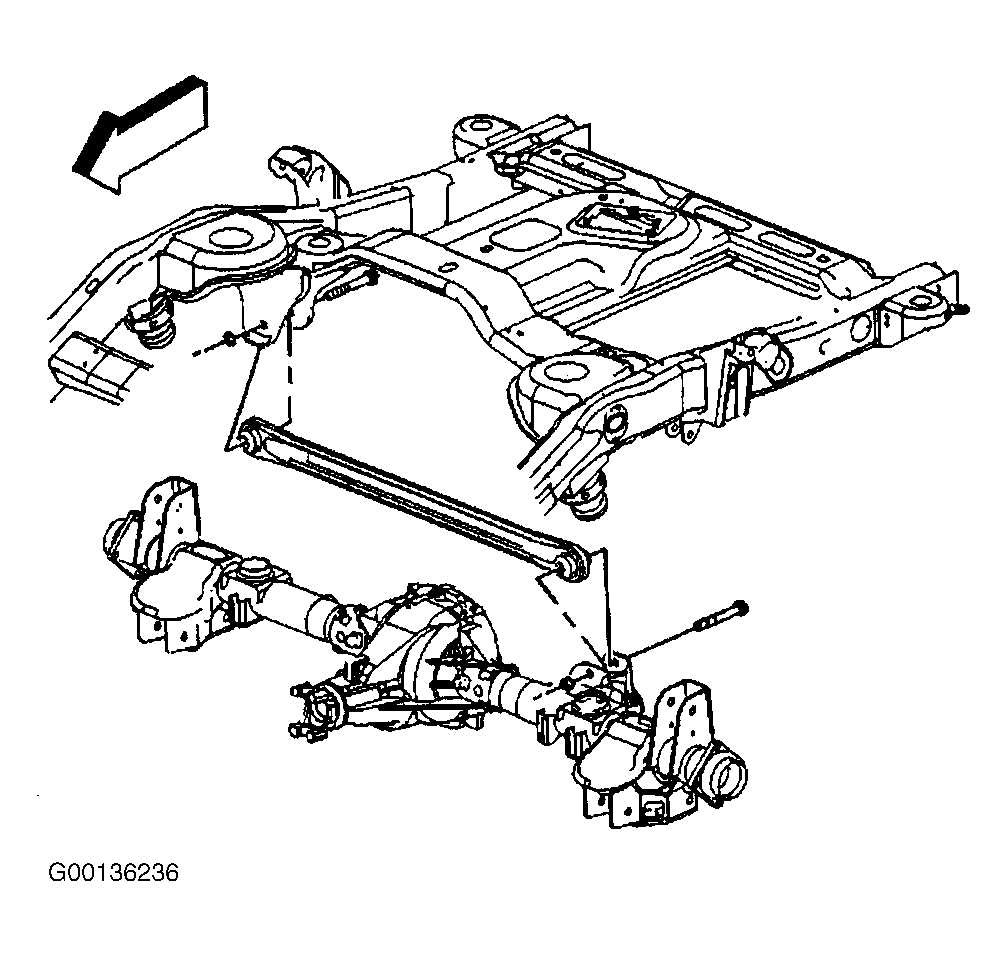

  2. Install the track bar retaining bolts. See Figure .
    3. NOTE: DO NOT tighten the bolts unless the suspension is at curb height position.
  3. Install the track bar retaining nuts. Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .
  4. Install the parking brake cable and retaining clips to the track bar.
  5. Remove the rear axle support.
  6. Lower the vehicle.
