Shock Absorber (15 Series Utility Without Level Control): Installation

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shock absorber.

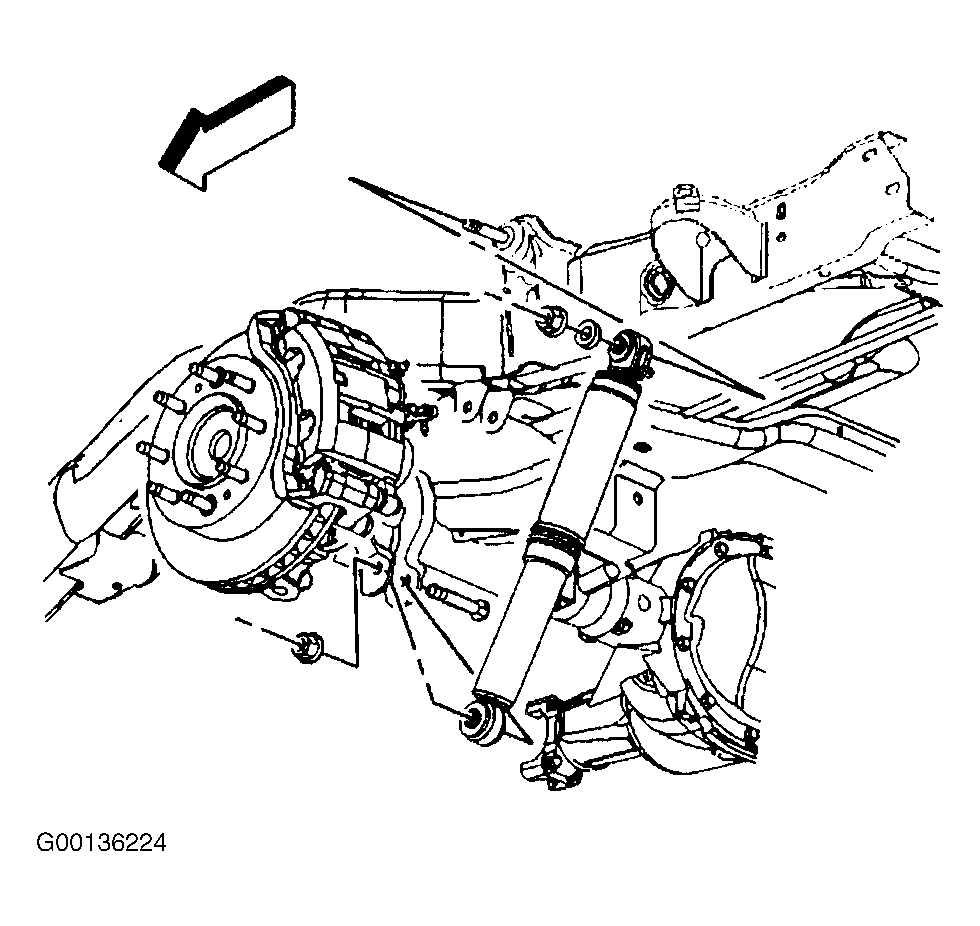

  2. Install the upper shock absorber nut and bolt. See Figure .
  3. Install the lower shock absorber nut and bolt. Tighten upper and lower shock absorber nuts to specification. See TORQUE SPECIFICATIONS  .

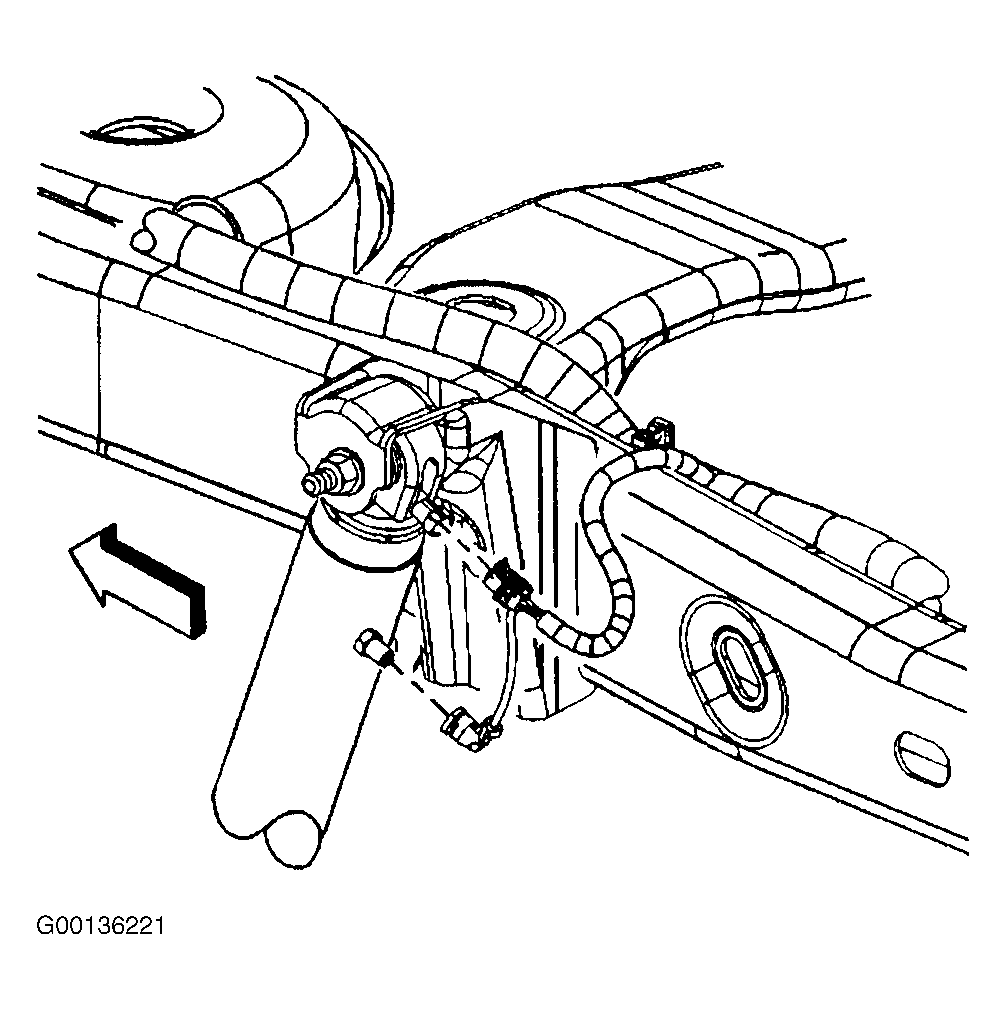

  4. Connect the electrical connector and air line if equipped with RTD. See Figure .
  5. Connect the RTD sensor harness connector to the vehicle harness connector (if equipped).
  6. Remove the support from the rear axle.
  7. Remove the safety stands.
  8. Lower the vehicle.
