Rear Axle Lower Control Arm: Removal

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support vehicle.
Remove the lower control arm retaining nuts. See Fig 1 .
Remove the lower control arm retaining bolts.
Remove the lower control arm.

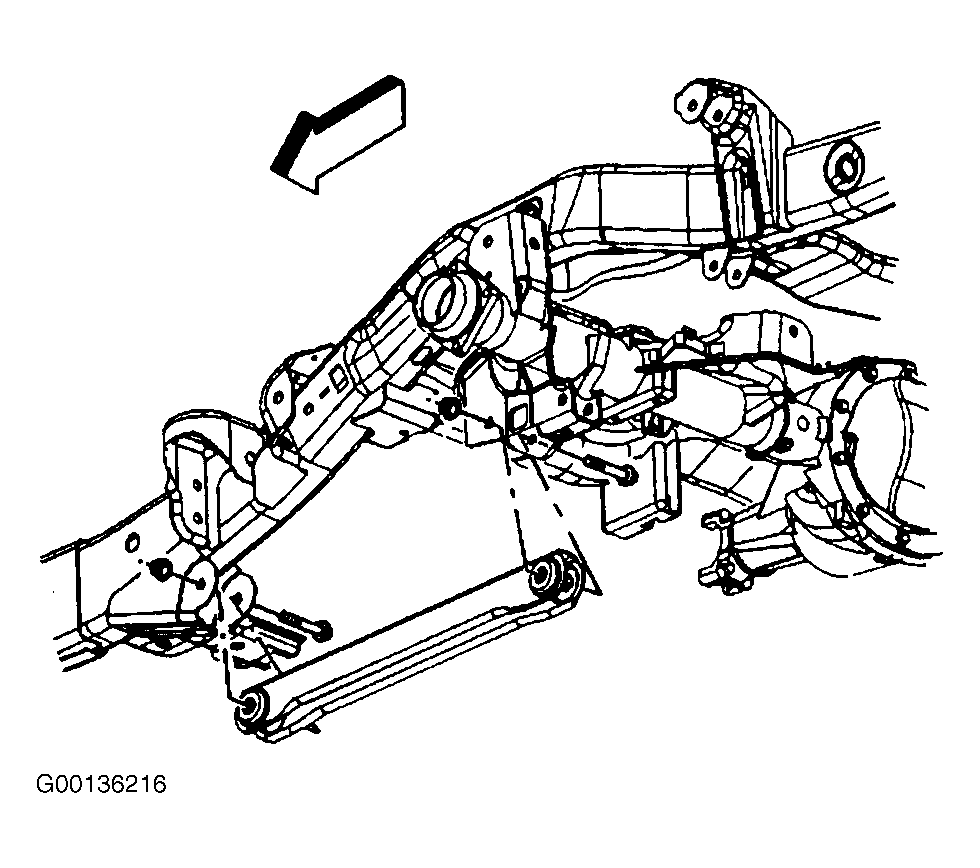

Fig 1: Removing & Installing Rear Axle Lower Control Arm

Courtesy of GENERAL MOTORS CORP.
