Leaf Spring: Removal

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Support the rear axle independently in order to relieve the tension on the leaf springs.
  3. Disconnect the Real Time Damping (RTD) sensor harness connector from the vehicle harness connector (if equipped).
  4. Remove the trailer hitch (if equipped).
  5. On left side only, remove the fuel tank.
  6. Remove the U-bolt nuts. See Fig 1 .
  7. Remove the U-bolts.
  8. Remove the spring spacer.
  9. Remove the anchor plate.
  10. Remove the rear shackle-to-frame bracket nut and bolt. See Fig 2 .
  11. Remove the front spring bracket bolt. See Fig 3 .
  12. Remove the leaf spring assembly from the vehicle.
  13. Remove the shackle from the spring.

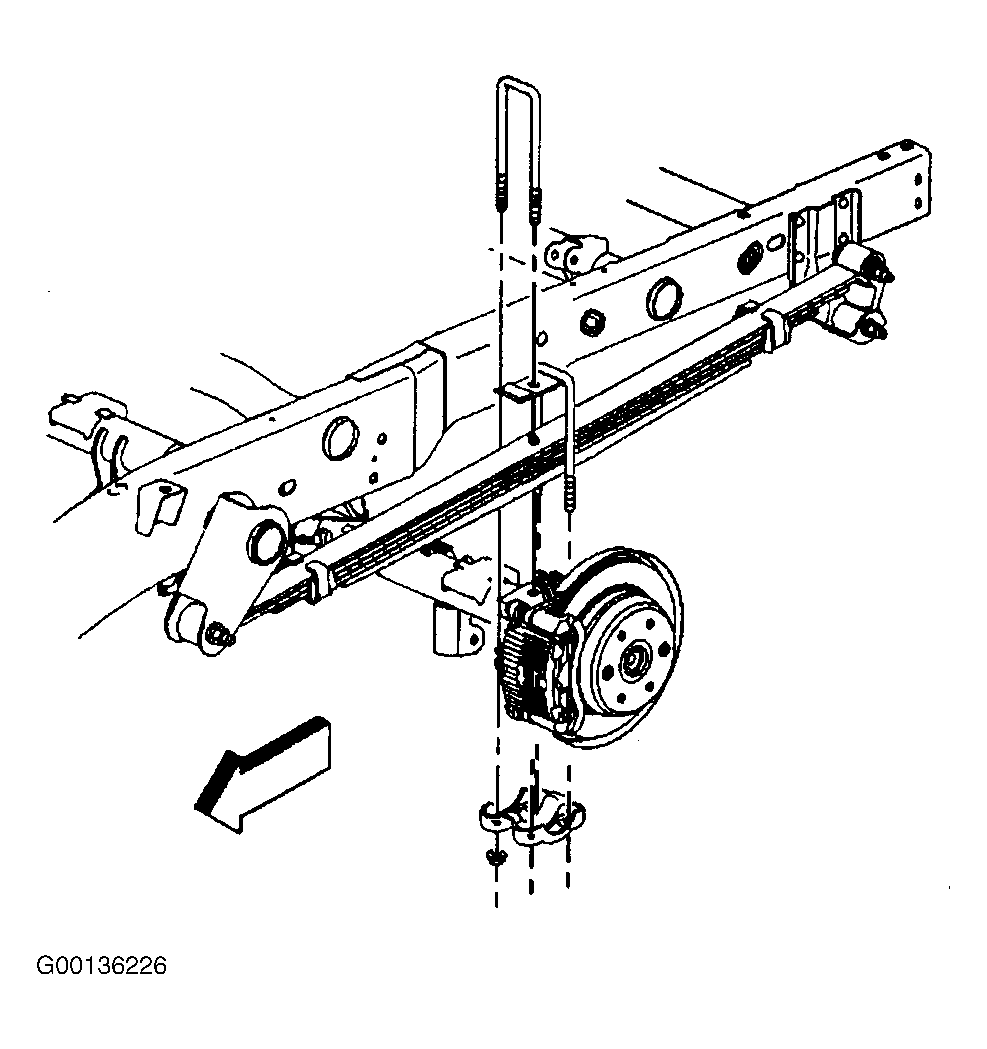

Fig 1: Removing & Installing "U" Bolts
G00136226Courtesy of GENERAL MOTORS CORP.

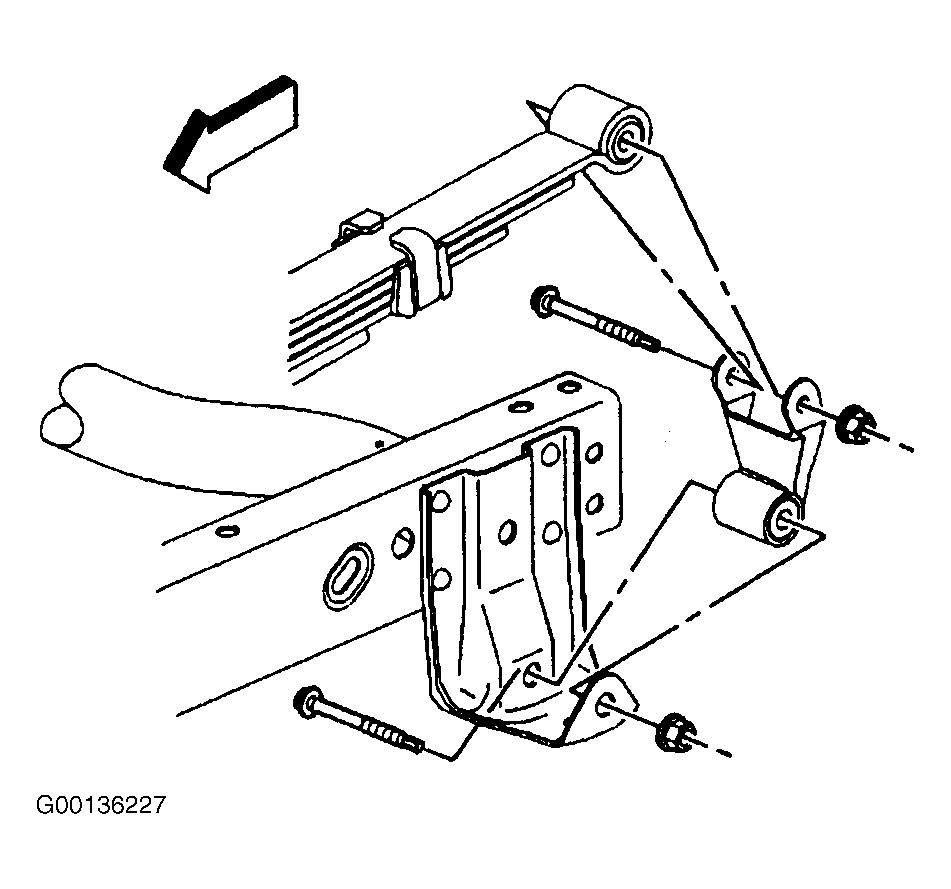

Fig 2: Exploded View Of Rear Spring Shackle
G00136227Courtesy of GENERAL MOTORS CORP.

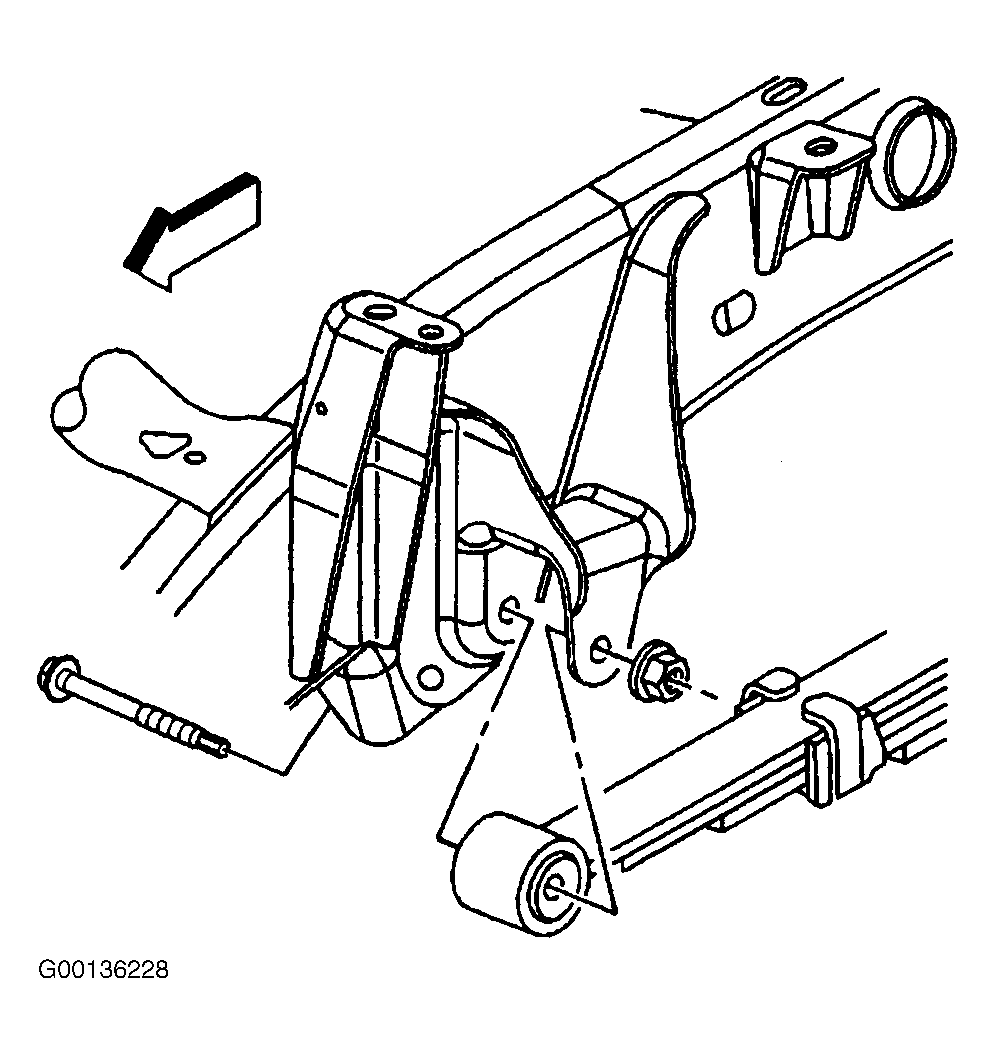

Fig 3: Removing & Installing Front Spring Bracket
G00136228Courtesy of GENERAL MOTORS CORP.
