Leaf Spring Bushing: Removal

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the leaf spring assembly from the vehicle. See LEAF SPRING .
Place the leaf spring in a press. Press the bushing out. See Fig 1 . Clean the spring bushing bore of any foreign or old bushing material.

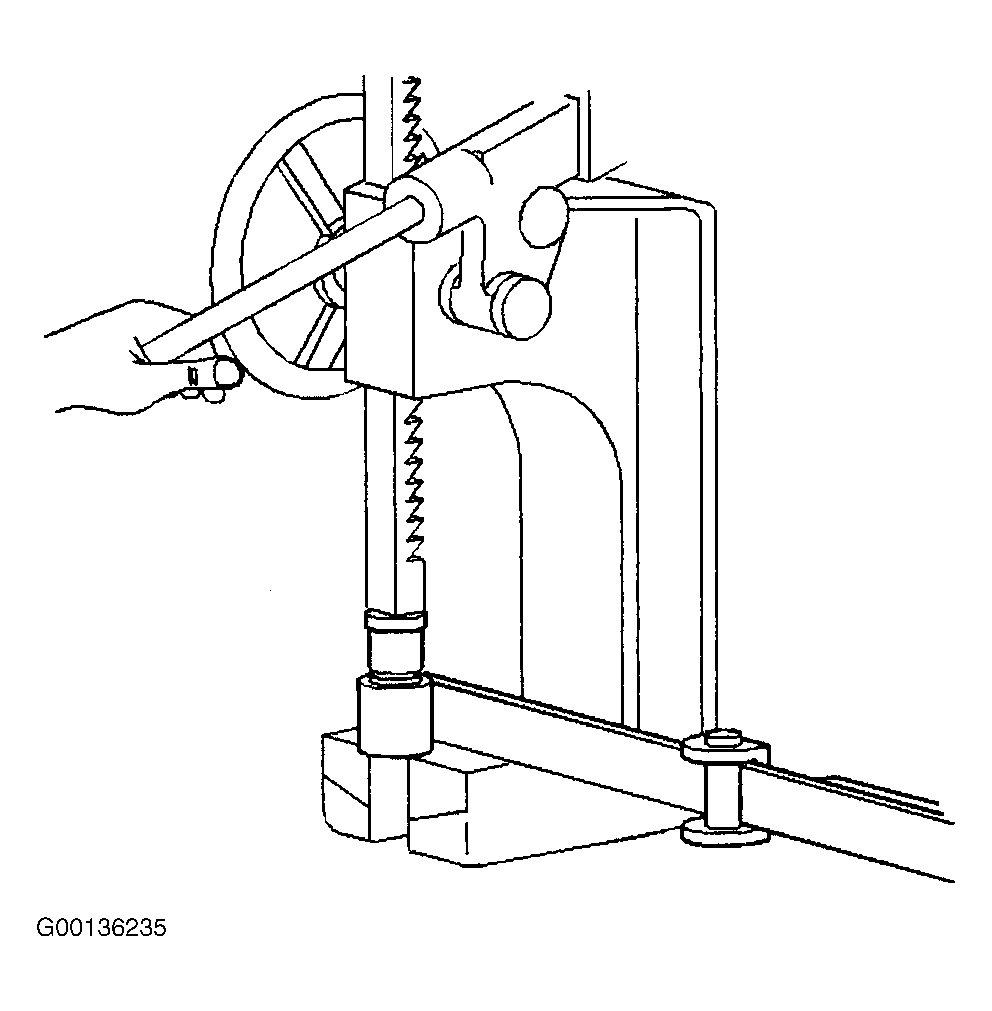

Fig 1: Removing Bushing From Leaf Spring

Courtesy of GENERAL MOTORS CORP.
