Coil Spring: Removal
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Coil spring rear suspension is only available 15 series utility models.
- Raise and support the vehicle.
- Support the rear axle.
- Disconnect the Real Time Damping (RTD) sensor harness connector from the vehicle harness connector (if equipped).

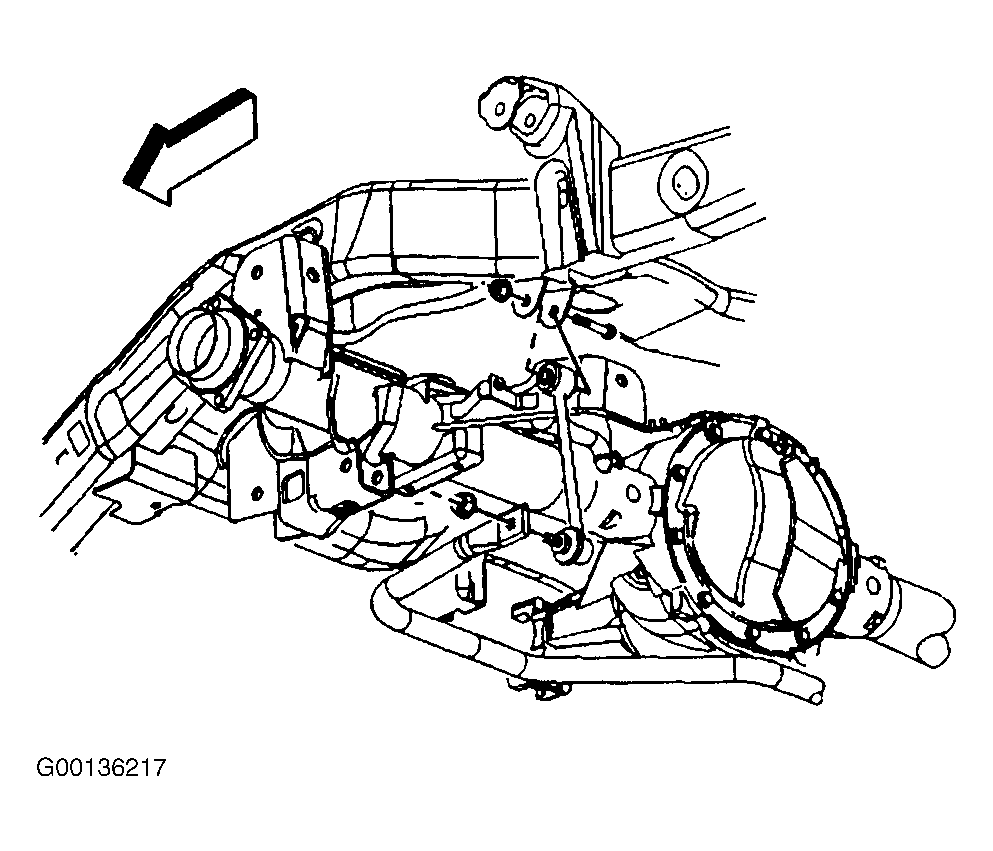

- Remove the stabilizer shaft link retaining nuts from the stabilizer shaft and frame. See Fig 1 .
- Remove the lower shock absorber nut and bolt from the rear axle.
- Lower the rear axle until the springs are fully unloaded.
- Remove the coil spring and the upper insulator. See Fig 2 .
