Coil Spring: Installation

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

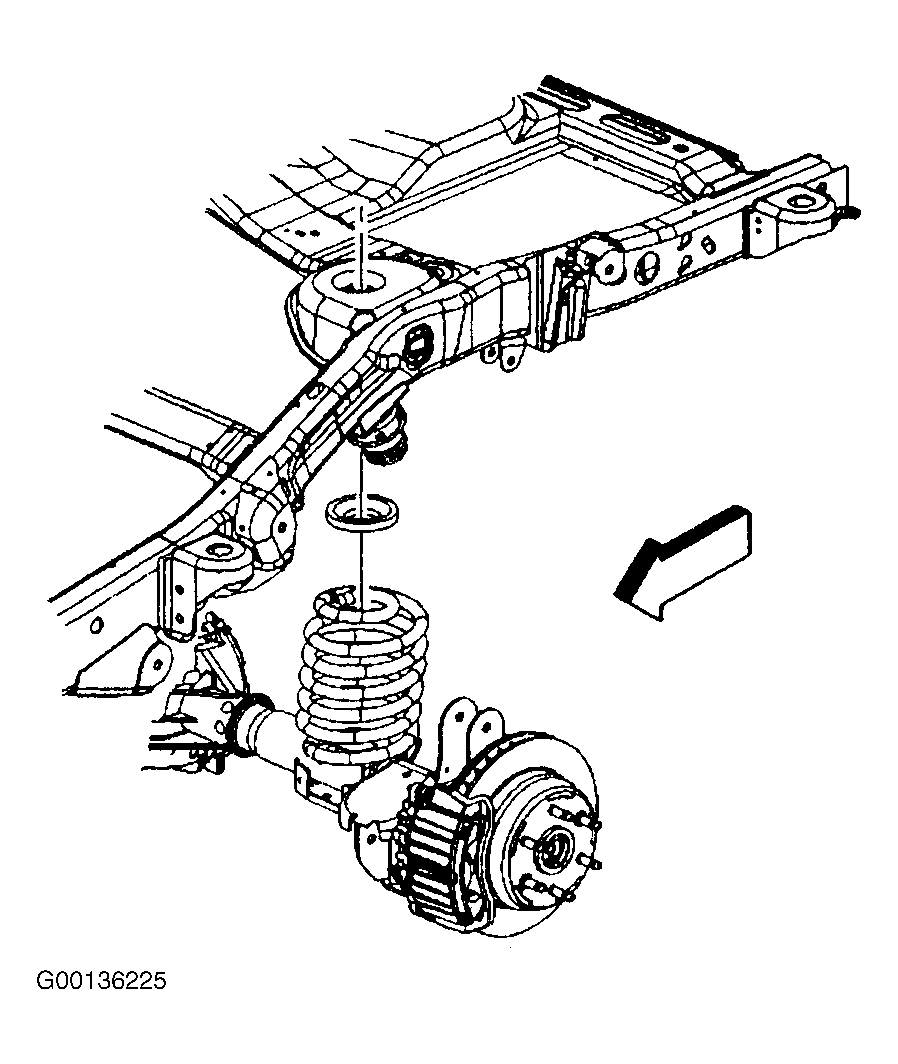

  1. Install the coil spring and the upper insulator. See Figure .
  2. Raise the rear axle.
  3. Install the lower shock absorber nuts to the rear axle. Tighten the lower shock absorber retaining nut and bolt to specification. See TORQUE SPECIFICATIONS  .
  4. Install the stabilizer shaft link to the stabilizer shaft and frame.
    5. NOTE: When tightening the lower link nut, verify that the inner jam nut bottoms out on the ball stud.
  5. Install the stabilizer shaft link retaining nut. Tighten the stabilizer shaft link retaining nuts to specification. See TORQUE SPECIFICATIONS  .
  6. Connect the RTD sensor harness connector to the vehicle harness connector (if equipped).
  7. Remove the rear axle support.
  8. Lower the vehicle.
